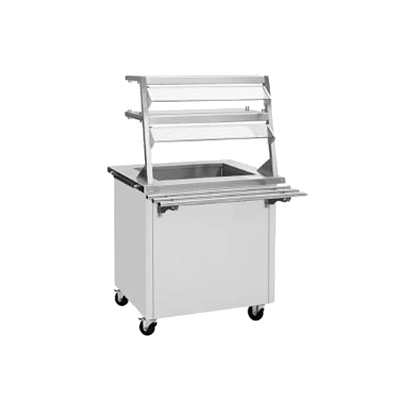

The Delfield SCI-96 Shelleysteel Mobile Ice Pan Serving Counters
Why Use Delfield's Shelleysteel?
Shelleysteel’s rugged, welded stainless steel body stands up to everyday abuse. This versatile equipment offers an almost unlimited selection of laminate colors and designs to customize for your needs. Best of all, it’s a cost-effective system that’s easy to modify over years of use.
Built to Last
Shelleysteel bases have a heavy, 18-gauge stainless steel exterior, reinforced with overlapping 16-gauge corners that are welded in place. The galvanized steel bottom adds extra rigidity and strength. Coved corners protect the laminate from wear and tear and make cleanup easier.
Built to Suit You
Let Delfield create your ideal lineup. Select Shelleysteel bases in a variety of custom lengths, with counter heights from 28 to 36 inches. Add canopies, decal packages and other trim.Short on space? A horseshoe layout can help move students through a concentrated area while staff monitors multiple locations with fewer steps.
High Quality Construction
- Bases are mobile and modular for greater versatility
- 14-gauge stainless steel tops
- Easy, soap-and-water-cleanable, durable, stainless steel surfaces
- 18-gauge welded stainless steel body with structural integrity
- 5” polyurethane locking casters are standard
- UL and NSF listed
- Easy-to-use, stainless steel, fully retractable interlock system on bases and tray slides
Easy To Use
Hot food wells are easily serviced through a convenient, removable panel . . . no need to remove the top
High Quality
Delfield’s exclusive tray slide bracket design has been tested to withstand 200 pounds with no deflection. Perfect when kids lean or sit on the tray slides!
Delfield SCI-96 Standard Features
- Insulated ice pan is 7” deep and is standard with the following: perforated false bottom, drain with valve and casters
- SCI units are standard with dry hinged door storage compartment, while SCI-NU units have enclosed bases with no under storage
- SCI-96: 78” x 21.62” ice pan, with understorage
- 18-gauge stainless steel exterior body
- 14-gauge galvanized bottom
- Line-up interlock device
- Best for use where electricity is not available
- All exterior panels reinforced with overlapping corners, welded in place
- All body cutouts reinforced with 14-gauge channel supports
- All units are standard on 5” diameter polyurethane swivel casters for easy cleaning
- Easy to use stainless steel interlock system is standard on base and tray slides
- One year parts and 90 day labor standard warranty
Delfield SCI-96 Options & Accessories
- Adjustable height casters
- Tray slide and work shelves
- Composite fold-down cutting boards
- Glass-front counter protector
- FlexiShield® Food Shields
- 18-gauge stainless steel overshelf
- Fluorescent or incandescent light fixtures*
- Laminate door panel insert (SCI Series only)
- Open understorage with shelf (SCI-NU Series only)
- 120V/60Hz/1ø, 10 amp convenience outlet with breaker*
- Dry insert with doors (SCI-NU units only)
- Refrigerated understorage (60” unit or longer)*
- Stainless steel trim strips
- Stainless steel end drop shelf
- 6” (15.2cm) high adjustable stainless steel legs in lieu of casters
- Laminate exterior panels in lieu of stainless steel exterior panels
* Inclusion of these options will alter the electrical specifications of the unit
Delfield SCI-96 Specification
- Exterior body is constructed of 18-gauge stainless steel side panels and 14-gauge galvanized bottom. All exterior side panels are reinforced with overlapping corners and are welded in place. All body cutouts are reinforced with 14-gauge galvanized channel supports
- Exterior top is constructed of 14-gauge stainless steel, welded, ground and polished into one integral unit. Top is fabricated with square exterior corners.
- Insulated ice pan is 7” (18cm) deep and constructed of 22-gauge stainless steel. A removable, perforated false bottom 1” (2.5cm) high, constructed of stainless steel, is supplied. The ice pan is separated from the exterior top by a Therma Brake and fully insulated with environmentally friendly, Kyoto Protocol Compliant, Non ODP (Ozone Depletion Potential), Non GWP (Global Warming Potential) foam in place polyurethane insulation. Ice pan is equipped with a (1” (2.5cm) I.P.S. drain plumbed to drain valve located at the bottom of the unit.
- Casters:Unit is mounted on 5” (13cm) diameter swivel casters with non-marking polyurethane tires and plate brakes. Overall height of caster assembly is 6.00” (15cm).
- SCI Series units: have a two-door dry compartment(s) constructed of 18-gauge stainless steel. Each compartment is equipped with a stainless steel shelf; doors) are double-wall construction, with stainless steel front panel.
