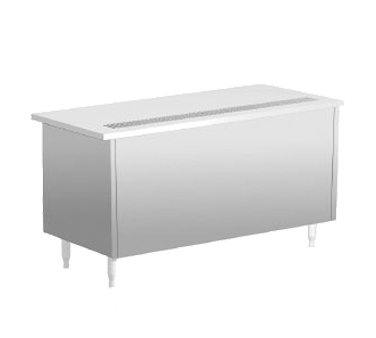

The Delfield SCU-74 Shelleysteel Mobile Beverage Counters
Why Use Delfield's Shelleysteel?
Shelleysteel’s rugged, welded stainless steel body stands up to everyday abuse. This versatile equipment offers an almost unlimited selection of laminate colors and designs to customize for your needs. Best of all, it’s a cost-effective system that’s easy to modify over years of use.
Built to Last
Shelleysteel bases have a heavy, 18-gauge stainless steel exterior, reinforced with overlapping 16-gauge corners that are welded in place. The galvanized steel bottom adds extra rigidity and strength. Coved corners protect the laminate from wear and tear and make cleanup easier.
Built to Suit You
Let Delfield create your ideal lineup. Select Shelleysteel bases in a variety of custom lengths, with counter heights from 28 to 36 inches. Add canopies, decal packages and other trim.
High Quality Construction
- Bases are mobile and modular for greater versatility
- 14-gauge stainless steel tops
- Easy, soap-and-water-cleanable, durable, stainless steel surfaces
- 18-gauge welded stainless steel body with structural integrity
- 5” polyurethane locking casters are standard
- UL and NSF listed
- Easy-to-use, stainless steel, fully retractable interlock system on bases and tray slides
Delfield SCU-74 Options & Accessories
- 12” (30.5cm) wide stainless steel fold-down tray slide
- 10” (25.4cm) wide three-bar fold-down tray slide
- 10” (25.4cm) wide composite fold-down cutting boards
- 10” (25.4cm) wide stainless steel fold-down work shelf
- Line-up interlock device
- Dual service drain troughs
- Laminate door panel insert (SCU Series only)
- Open understorage with shelf (SCU-NU Series only)
- *120V/60Hz/1ø, 10 amp convenience outlet with breaker
- Single dry insert with doors (SCU-NU Series only)
- Double dry insert with doors (SCU-NU Series only)
- Stainless steel trim strips
- 14” x 30” (35.6cm x 76.2cm) stainless steel end drop shelf
- 6” (15.2cm) high adjustable stainless steel legs in lieu of casters
- Laminate exterior panels in lieu of stainless steel exterior panels
* Inclusion of these options will alter the electrical specifications of the unit
Delfield SCU-74 Specification
- Exterior body is constructed of 18-gauge stainless steel side panels and 14-gauge galvanized bottom. All exterior side panels are reinforced with overlapping corners and are welded in place. All body cutouts are reinforced with 14-gauge galvanized channel supports
- Exterior top is constructed of 14-gauge stainless steel, welded, ground and polished into one integral unit. Top is fabricated with square exterior corners. Top is reinforced and includes a stainless steel drain trough with a removable stainless steel anti-splash drip gate. Drain trough has a 1” (2.5cm) I.P.S. drain plumbed to a drain valve located at the right bottom of the unit. Drain trough is located on the customer’s side of counter top.
- Casters: Unit is mounted on 5” (12.7cm) diameter swivel casters with nonmarking polyolefin tires and plate brakes. Overall height of caster assembly is 6” (15.2cm).
- SCU units have a two door dry compartment(s) constructed of 18-gauge stainless steel. Each compartment is equipped with a stainless steel shelf) are double-wall construction, with stainless steel front panel.
- SCU-74: One compartment, 48” wide with two doors
