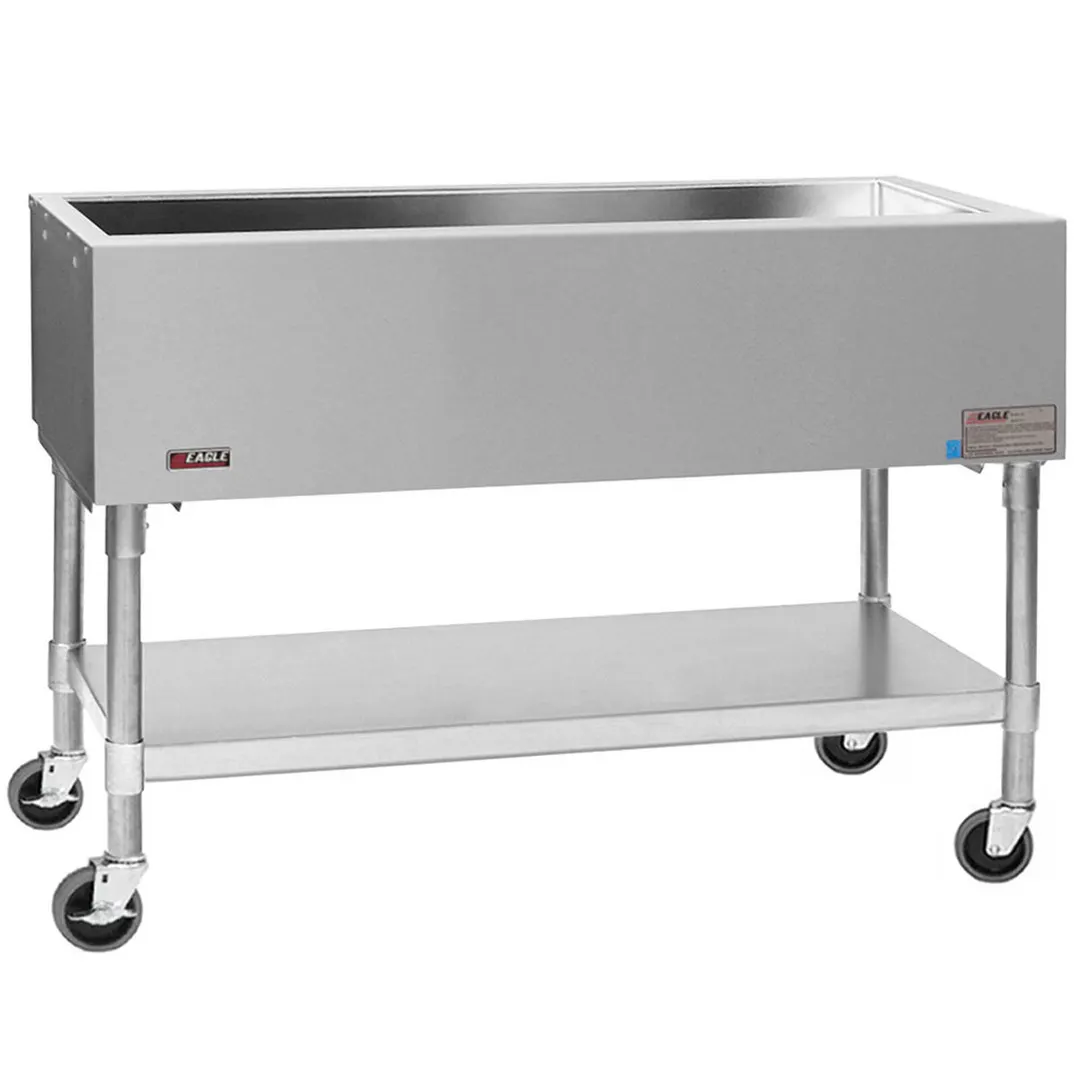

Eagle Group PCP-3 Cold Pan Units-Open Base
General Informations
Top and body are heavy gauge stainless steel. Cold pan is type 304 stainless steel, fully insulated, 20˝ front-to-back and 6˝ deep, with pan sloped to a 1 1⁄2˝ NPS drain connection. Galvanized adjustable undershelf with 1 5⁄8˝ O.D. galvanized tubular legs. Stationary units feature adjustable bullet feet. Portable units come with stainless steel push handle and 4˝-diameter casters—two with brakes.
Eagle Group PCP-3 Construction Features
- Heavy gauge 304 stainless steel ice pan is flanged down over heavy gauge stainless steel body.
- The 6˝ (152mm)-deep ice pan is 20˝ (508mm)-wide, 2 1⁄2˝(64mm) shorter than overall length of top, and insulated on all four sides and bottom.
- Ice pan slopes down to a 1 1⁄2˝ (38mm) drain and plug.
- Undershelf constructed of galvanized steel or stainless steel.
- Legs are 1 5⁄8˝ (41mm) diameter.
- 1 5⁄8˝ (41mm)-diameter galvanized legs with welded 1˝ (25mm)-diameter crossbrace.
Eagle Group PCP-3 Design Features
- Stationary units have non-marking plastic adjustable feet.
- Portable units have 4˝ (102mm) diameter swivel casters (two with brake) and stainless steel push handle.
Eagle Group PCP-3 Specifications
- Type : Portable
- Overall Dimensions in.(mm) : 22 9⁄16" (573mm) Weight X 50 1⁄2" (1283mm) Lenght
- Shipping Weight (lbs.) (kg) : 99 (44,9)
From The Manufacturer
Mobile Serving Counter, non-refrigerated cold pan, 50-1/2"W x 22-9/16"D x 35-1/2"H, open base, 304 stainless steel insulated ice pan, stainless steel top & body, stainless steel push handle, 1-1/2" drain, galvanized undershelf, galvanized legs with (2) swivel & (2) swivel/brake 4" casters, NSF
