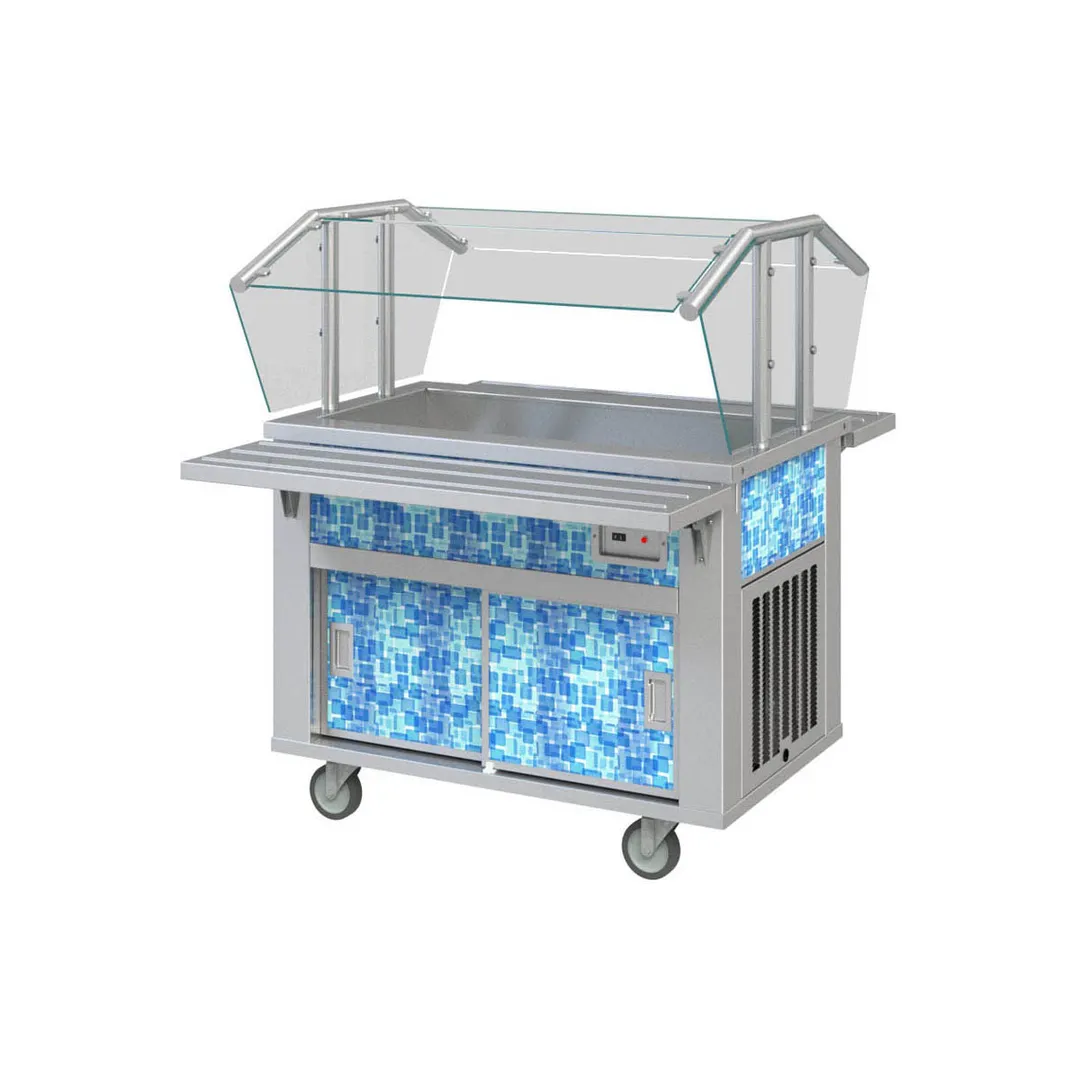

Piper Products 4-CM Cold Food Serving Counter

Why use Piper Products Cold Food Unit ?

The Elite 500 Cold unit is available mechanically cooled (CM) or ice only (CI). The versatile modular design allows you to customize your cafeteria or buffet lineup, choosing only the options and accessories that you want and need. Elite 500 units are compatible and will interlock with other Elite 500 units. This allows the units to be disconnected for ease in cleaning.

Piper Products 4-CM Electrical

• 120 volts single-phase
• Eight foot electrical cord with NEMA 5-15P plug
• On/Off switch and pilot light mounted on control panel of unit's operator side

Piper Products 4-CM Refrigeration System

• 1/3 horsepower compressor
• Fan-cooled condensing unit with an expansion valve pressure control switch
• Refrigerant coils shall be of copper tubing wrapped around the sides of the well

Piper Products 4-CM Standart Features

• 14-gauge stainless steel top with 1-1/2” turndown on all sides
• Top secured by four recessed bolts for easy access
• 14-gauge stainless steel legs fastened to 18-gauge stainless steel bottom shelf
• 20-gauge stainless steel end and front panels are attached to legs
• 20-gauge stainless steel fully welded 5” deep well with drain
• Well is enclosed with insulation on sides, end and bottom
• 1” drain with shut off valve shall exit operator’s left side as standard. Drain valve is 3/4" FPT.
• Open control side for additional storage capacity on Elite units
• Sliding doors standard on Mechanical (CM) unit only.
• Louvered panels for ventilation of condensing unit on CM units
• End louver panel removable to access compressor on CM units
• 5” diameter swivel plate casters, 2 with brakes
• Interlocking mechanism is provided to interlock with other Elite 500 units
• One year parts and labor.

Piper Products 4-CM Common Options

• Pizzazz powder Coating in Lieu of Stainless Steel
• Tray slides
• Tubular foot rest
• Duplex outlet
