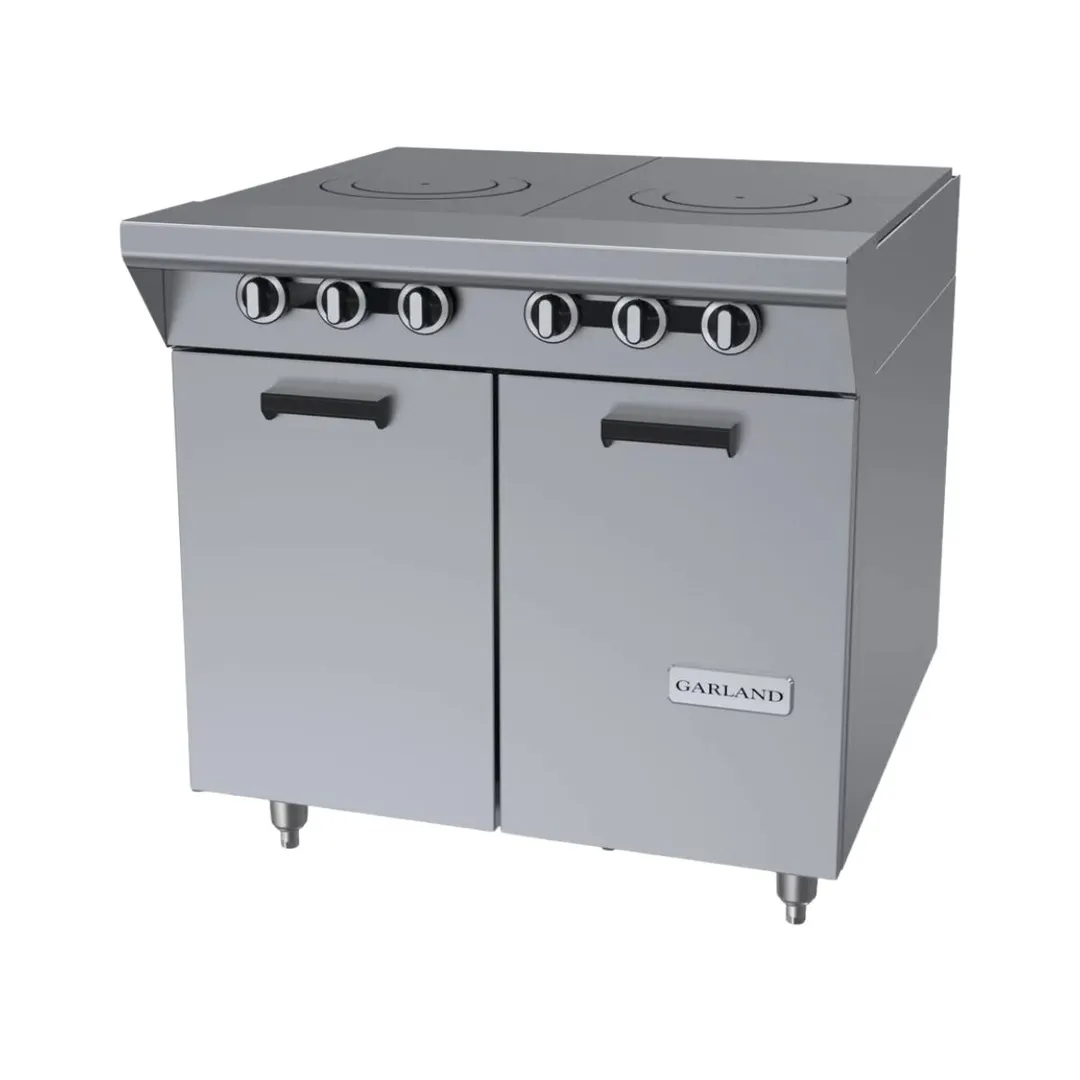

Garland Master Series Heavy Duty Front-Fired Hot Top Range

Specifacations

Heavy‑duty gas range with oven, Model M45R. Two (2) 17" (432mm) front fired spectro‑heat hot tops, total 90,000 BTU (26.37 kW) natual gas. 34" (864mm) wide x 38" (965mm) deep, including 7-1/2" (191mm) deep stainless steel front rail. Porcelain enamel oven with 40,000 BTU (11.72 kW), natural gas, cast iron burner. Stainless steel front and sides. 130,000 BTU (38.09 kW) total. Natural or propane gas available Also available with storage base w/ doors, suffix S, and modular top, suffix T. NOTE: Ranges suppled with casters must be installed with an approved restraining device.

Standard Features

Stainless steel front and sides
6" (152mm) chrome steel adj. legs
7-1/2" (191mm) stainless steel front rail
Two 17" (432mm) extra-heavy cast iron top sections, each with 3 individually controlled jet burners rated 45,000 BTU (13.16 kW) natural or 33,000 BTU (9.66 kW) propane total each section
Removable cast iron ring and lid
Heavy gauge, aluminized steel radiation baffle system
1‑piece Stainless Steel drip tray
Piezo spark ignition for oven
Fully porcelainized oven interior
40,000 BTU (11.72 kW) natural gas, 35,000 BTU (10.25 kW) propane gas, cast iron oven burner
Storage base interior of aluminized steel w/shelf (suffix S)
Modular top available (suffix T)

From The Manufacturer

Master Series Heavy Duty Range, gas, 34", (2) 17" front fired hot tops, removable rings & lids, storage base, stainless steel front & sides, 6" legs, 90,000 BTU (Garland)

Manufacturer	Garland US Range
Model Number	M45S
Weight	410 lbs
Width	34″
Depth	38″
Height	36.38″
Installation Type	free standing
Range Type	heavy duty/modular range
Number of Burners	2 burners
Base Type	cabinet/storage base
Top Configuration	hot top
Exterior Finish	stainless steel front & sides
Top	(2) hot tops
Total BTU	90,000
