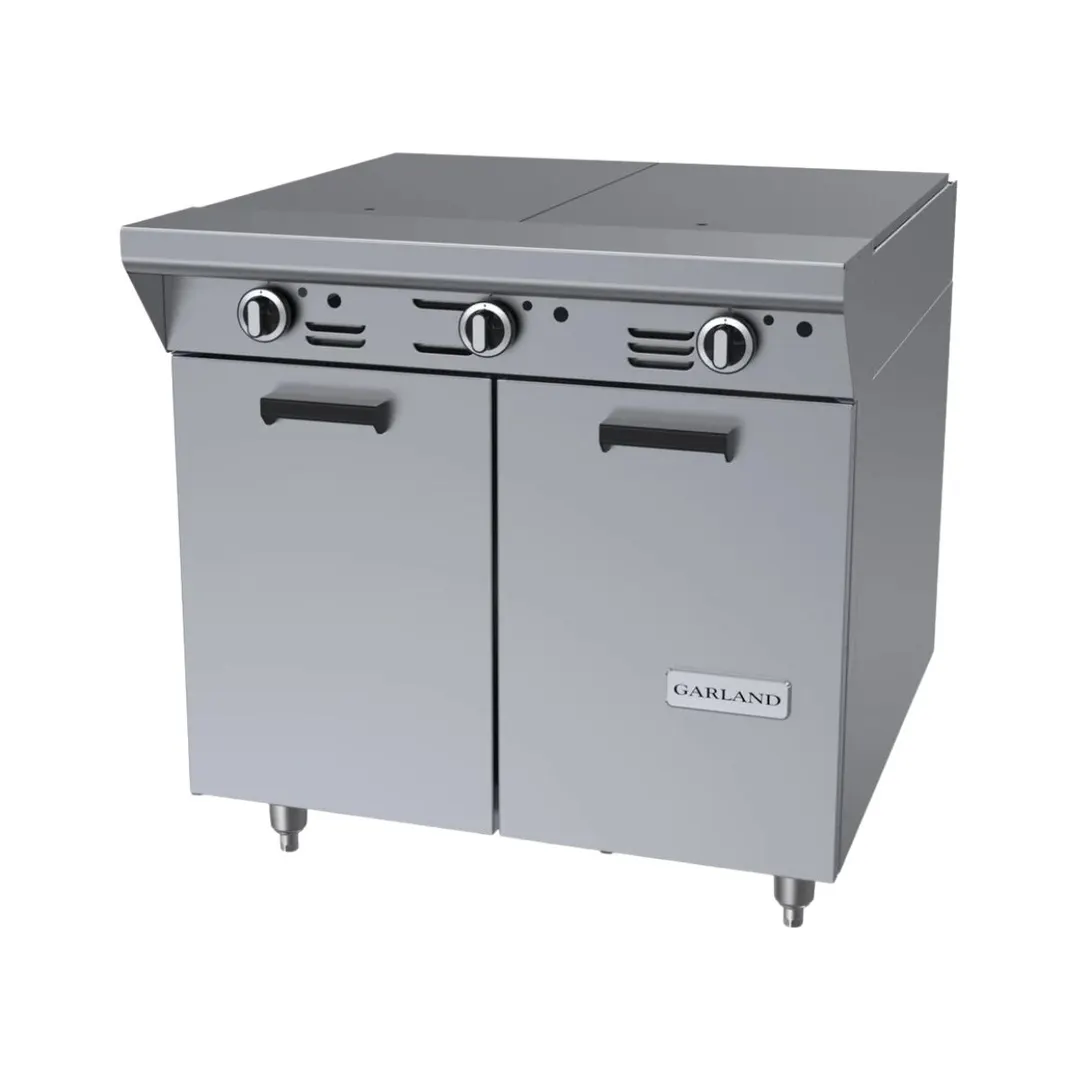

Garland Master Series Heavy Duty Even Heat Hot Top Range

Specifacations

Heavy duty gas range with oven, Model M46R. Two (2) 17" (432mm) even heat hot tops, rated a total 90,000 BTU (26.37 kW) total. 34" (864mm) wide x 38" (965mm) deep, including 7-1/2" (191mm) deep stainless steel front rail. Porcelain enamel oven interior with 40,000 BTU (11.72 kW) cast iron oven burner. Stainless steel front and sides. 130,000 BTU (38.09 kW) total. Natural or propane gas. Also available with storage base w/ doors, suffix S, and modular top, suffix T.

Standard Features

Stainless steel front and sides
6" (152mm) chrome steel adj. legs
7-1/2" (191mm) stainless steel front rail
Two extra heavy even heat cast iron hot top sections with 3 "H" burners; 90,000 BTU (26.4 kW) total
Separate Hi-Lo control valves for each "H" burner
Heavy gauge aluminized steel radiation baffle system
Stainless steel burner box bottom
Storage base interior of aluminized steel
Piezo spark ignition for oven
40,000 BTU (11.72 kW) natural gas, 35,000 BTU (10.25kW) propane gas cast iron oven burner

From The Manufacturer

Master Series Heavy Duty Range, gas, 34", (2) 17" even heat hot tops, storage base, stainless steel front & sides, 6" legs, 90,000 BTU (Garland)

Manufacturer	Garland US Range
Model Number	M46S
Weight	350 lbs
Width	34″
Depth	38″
Height	36.38″
Installation Type	free standing
Range Type	heavy duty/modular range
Base Type	cabinet/storage base
Top Configuration	hot top
Exterior Finish	stainless steel front & sides
Top	(2) hot tops
Total BTU	90,000
Burner Type & Location	even heat
