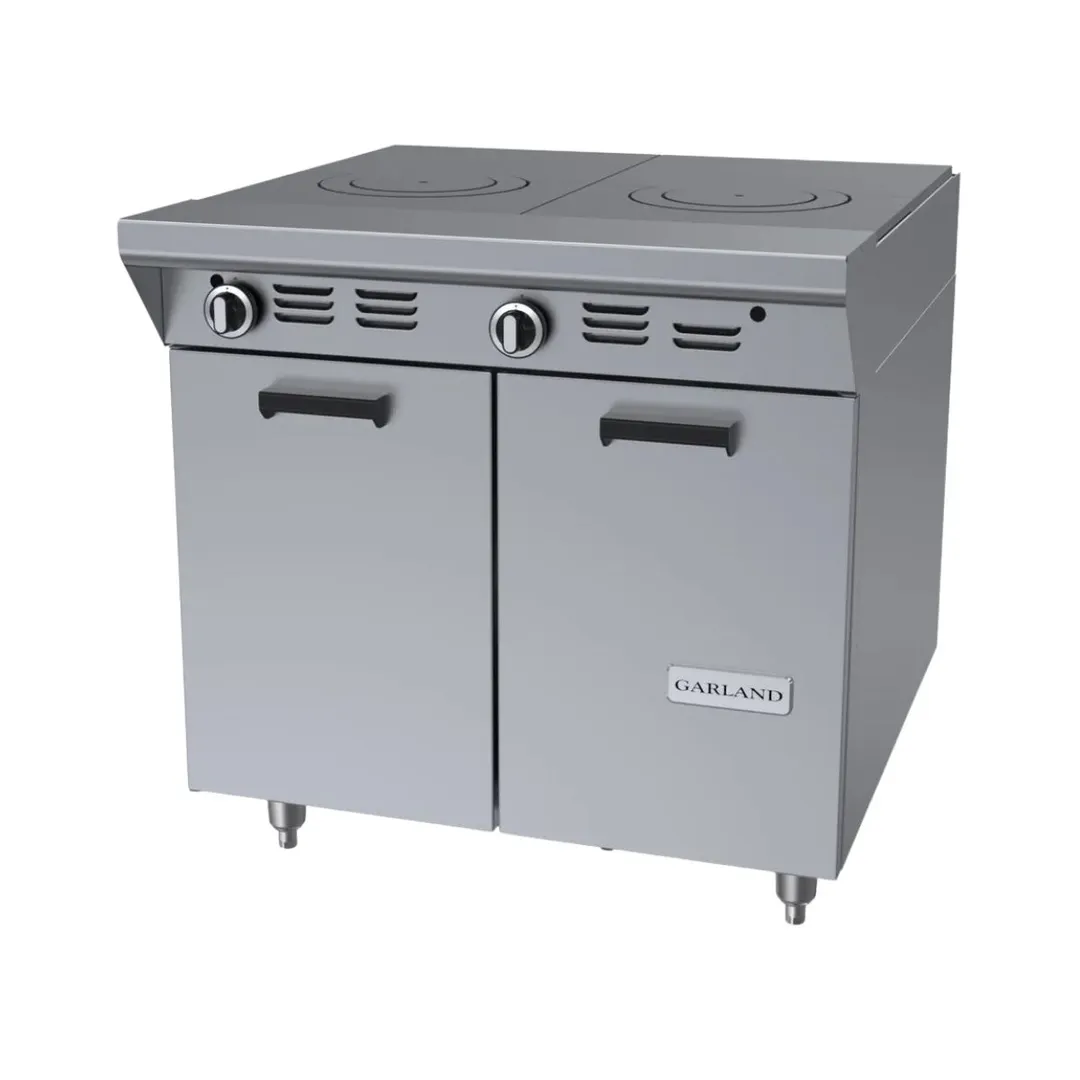

Garland Master Series Heavy Duty Front-Fired Hot Top Range
Specifacations
Heavy‑duty gas range with oven, Model MST45R. Two (2) 17" (432mm) front fired spectro‑heat hot tops, total 80,000 BTU (23.42 kW). Sentry total flame failure protection for all burners 34" (864mm) wide x 38" (965mm) deep, including 7-1/2" (191mm) deep stainless steel front rail. Porcelain enamel oven with 40,000 BTU (11.72 kW) cast iron burner. Stainless steel front and sides. 120,000 BTU 35.14kW) total for natural gas. Also available with storage base w/ doors, suffix S, and modular top, suffix T. NOTE: Ranges suppled with casters must be installed with an approved restraining device.
Standard Features
- Standard Features:
- Stainless steel front and sides
- 6" (152mm) chrome steel adj. legs
- 7-1/2" (191mm) stainless steel front rail
- Two extra-heavy cast iron top sections, each with 3 individually controlled jet burners rated 40,000 BTU (11.71 kW) total, 30,000 BTU (8.78kW) for CSA approved propane models
- Removable cast iron ring and lid
- Heavy gauge, aluminized steel radiation baffle system
- 1‑piece Stainless Steel drip tray
- Piezo spark ignition for oven
- Fully porcelainized oven interior
- 40,000 BTU (11.72 kW) natural gas, 35,000 BTU (10.25 kW) propane gas, cast iron oven burner
- Storage base interior of aluminized steel w/shelf (suffix S)
- Modular top available (suffix T)
- Electric Spark ignition on all pilots Suffix -E models
- Sentry total flame failure protection for all burners
From The Manufacturer
Master Series Heavy Duty Range, gas, 34", (2) 17" front fired hot tops, removable rings & lids, storage base, electric ignition & flame fail all burners, stainless steel front & sides, 6" legs, 90,000 BTU, CSA Flame, CSA Star, NSF (Garland)
Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.
