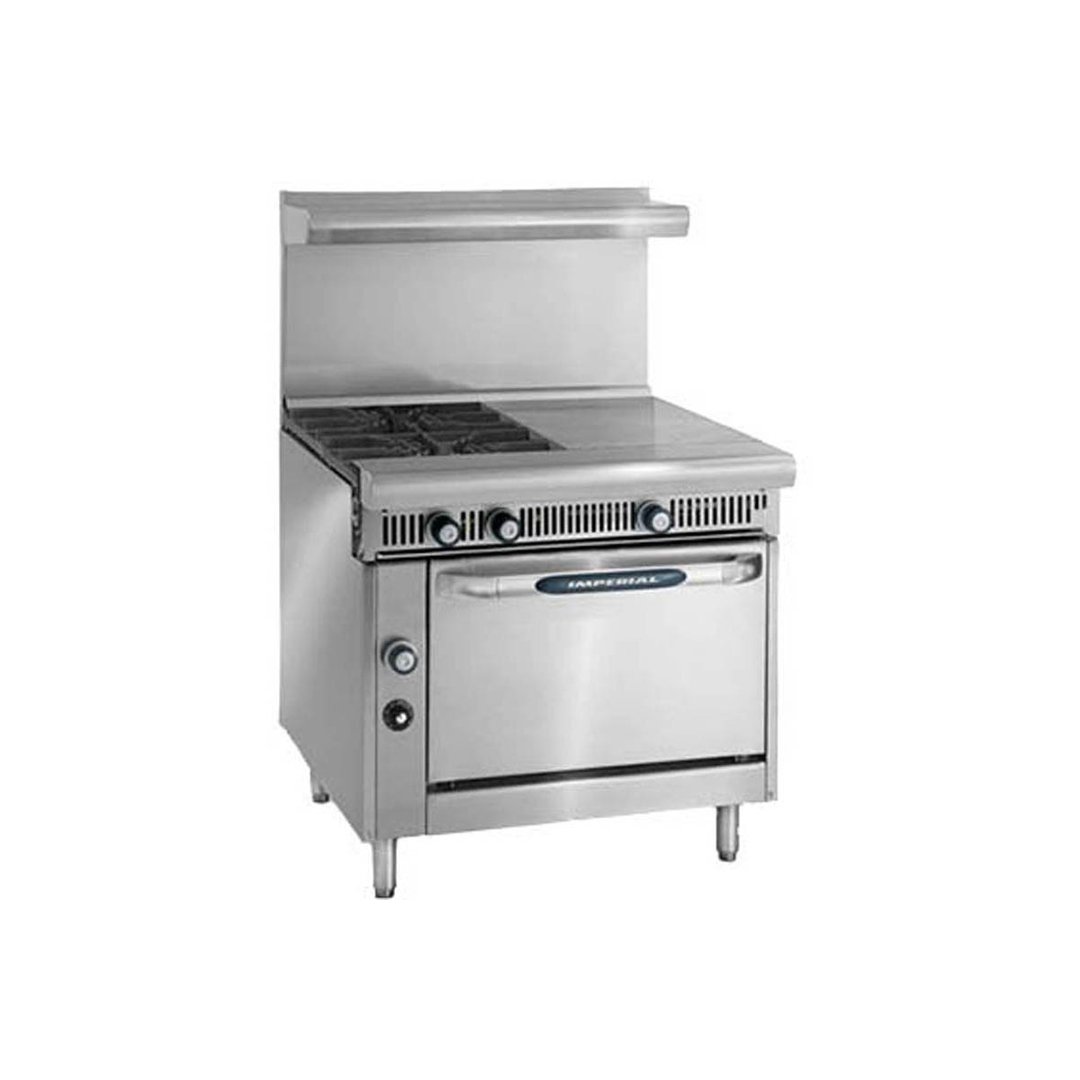

The Imperial IHR-2HT-2-XB Heavy Duty Ranges Open Burners and Hot Tops Combinations
Imperial IHR-2HT-2-XB Features
Hot top
- Heavy duty, highly polished top provide even heat across entire surface.
- Plates measure 18" w x 28” d (457 x 711 d mm), 12" w x 28” d (305 x 711 d mm) or 12" w x 14" d (305 x 356 mm) depending on model.
- Burners have 40,000 (12 KW) BTU output, located every 18" (457 mm) with one manual control per burner.
Open Burners
- Anti-clogging burner 21% more efficient than other manufacturers’ heavy duty burners.
- 35,000 BTU/hr. (10 KW) output with a 7,000 BTU/hr. low simmer feature.
- One-piece venturi base has no gaskets. Venturi slopes down to the burner creating more efficient heating.
- Cast-iron burners remove and separate for cleaning.
- All stainless steel pilot tubing and solid brass top burner valves for a long service life
Grates
- Wavy grates create more heat transfer. Heat convects in waves for continual heat-to-pan contact.
- Grates measure 12" x 14" (305 x 356 mm) or 18" x 14" (457 x 356 mm) depending on model.
- Cast-iron design features flame shaping center tube for more efficient heat transfer.
- Anti-clogging shield designed into the grate protects the pilot from grease and debris.
Standart Oven
- 40,000 BTU/hr (12 KW) oven with 100% safety pilot and manual shut-off valve.
- Unique burner baffle distributes heat flow to provide even temperatures throughout the oven cavity.
- Exclusive heat deflector reflects heat into the oven, not the floor.
- Chef Depth interior is 26-1/2" w x 26" d x 14" h (673 x 660 x 356 mm) and accommodates 18" x 26" (457 x 660) sheet pans left-to-right and front-to-back.
- Porcelainized sides, rear, deck and inner door liner for easy cleaning.
- Superior heavy-duty door hinge.
- Side oven controls are protected in the cool zone.
- One chrome oven rack is included.
Convection Oven
- 35,000 BTU/hr. (10 KW) convection oven with 1/4 hp blower motor cooks products quickly and evenly with less shrinkage.
- Electronic ignition system with a single solenoid valve.
- Convection oven interior dimensions 26-1/2" w x 22-1/2" d x 14" h (673 x 572 x 356 mm).
- Three position switch for cooking or cool down. Fan shuts off automatically when door is open.
- 1/4 hp blower motor.
- Porcelainized sides, rear, deck and door lining for easy cleaning. Stainless steel door gasket.
- Burner “ON” indicator light and one hour manual timer.
- Three chrome oven racks included.
From The Manufacturer
Spec Series Heavy Duty Range, gas, 36"W, (2) open burners, cast iron "S" grates (standard), (2) 12"W hot tops, manual controls, open cabinet base, bottom shelf, stainless steel front, sides, 7"D landing ledge, backguard & kick plate, 6" legs with adjustable feet, 80,000 BTU, 23kW, cETLus, NSF
