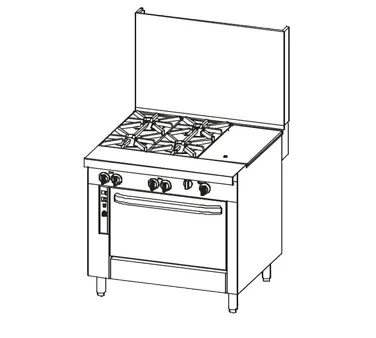

The Southbend P36C-BHH Platinum Series Sectional Range Combination Tops
Why Use Southbend Sectional Range?
The Platinum Series provides professional performance that chefs and restaurateurs can depend on. Made with 100% Stainless Steel construction, the Platinum Series includes heavy-duty ranges, griddles, planchas, charbroilers, stock pot ranges, fryers, uniform hot tops, french tops, and broilers that can be combined for a 100% custom line-up to fit the needs of any high-volume operation.
Southbend P36C-BHH Features
- P36C-BHH: Platinum Sectional Gas Range - 2 Non-Clog Burners - 24" Hot Top - Cabinet Base - 134,000 BTU
- 36" wide sectional range with a standard-oven base, convection-oven base, cabinet base, or as a modular unit (for mounting on countertop, refrigerated or freezer base)
- 9-1/4" deep front rail
- Stainless steel front and sides
- Fully insulated lining and burner box
- 1-1/4" front gas manifold and 1" rear gas connection
- 5" high stainless steel flue riser
- Free battery-design assistance
12" Open Top Features
- Two 35,000 BTU NAT (35,000 BTU LP) patented clog-free burners
- Removable, welded steel top grates
- Removable drip tray
12" Hot Top Features
- Two 16,000 BTU NAT (16,000 BTU LP) burners with one high/low control knob
- Battery spark ignition
- Removable steel plates with 700°F surface temperature on high setting
Southbend P36C-BHH Specification
- Exterior Finish: Front, sides, rear and exterior bottom constructed of #3 polished 430 and 304 stainless steel.
- Front Rail: 9-1/4" deep front rail.
- Flue Riser: 5" high stainless steel flue riser
- Battery: Unit can be in any position in a battery. If the unit is at the end of the battery, the end side will be solid (rather than have a coverplate over the end of the front manifold).
- Legs: 6" stainless steel adjustable legs standard.
- Model 36C: Stainless steel cabinet base with two removable doors that open from the center.
WARRANTY & SERVICE REQUEST
“Do you need service? Is your product under warranty? Please fill out the form at the link below.”
Warranty & Service Request FormFrom The Manufacturer
Platinum Heavy Duty Range, gas, 36", (2) 35,000 BTU open burners, (2) 12" hot tops, manual controls, battery spark ignition, (1) cabinet base, stainless steel front, sides, rear, exterior bottom & 6" adjustable legs, 134,000 BTU, cCSAus, CSA Flame, CSA Star, NSF, Made in USA
Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.
