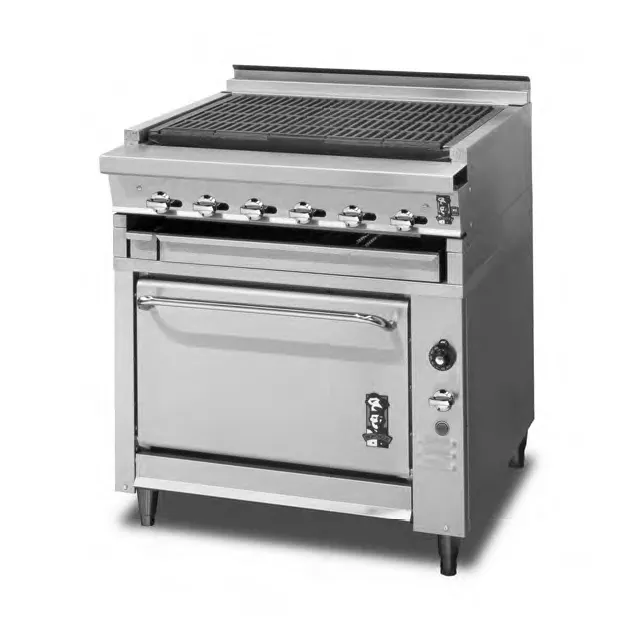

Montague Company 136LB/UFLC-36R Gas 36" Heavy Duty Range

Montague Company 136LB/UFLC-36R Standard Features

26-5/8” wide x 28” deep x 15” high (676 x 711 x 381mm) cooking compartment
Accepts 18” x 26” (457 x 660mm) pans sideways or lengthwise
Front venting oven design for more even cooking
Heavy duty counterweighted oven door — no springs!
Three position adjustable nickel-plated rack supports, with one rack standard
Interior panels and door porcelain lined for long life & easy cleaning
Low-to-500°F (260°C) thermostat mounted in insulated cool zone
40,000 BTU/hr cast iron burner with automatic ignition safety pilot

Montague Company 136LB/UFLC-36R STANDARD CONSTRUCTION FEATURES

Satin finish stainless steel front and exterior bottom
Stainless steel top
Other surfaces painted black with electrolytic zinc undercoating
Stainless steel 1” (25mm) rear flue riser standard
6” stainless steel legs with adjustable bullet feet
3/4” NPT right-rear gas inlet & 3/4” NPT gas pressure regulator

Montague Company 136LB/UFLC-36R Specifications

Width: 36"
Depth: 37.25"
Exterior Finish : stainless steel front
Top : charbroiler
Base : standard oven
Shipping Weight : 403 lbs (183 kg)

From The Manufacturer

Legend™ Charbroiler/Oven, gas, 36", removable self-cleaning stainless steel radiants, 2-position grid frame, reversible cast iron top grates, 1" flue riser, standard oven base, stainless steel front & sides, 6" adjustable stainless steel legs, pressure regulator, 154,000 BTU *Note: Cooking height will be approximately 42" from floor*, NSF, cETLus, CE

Manufacturer	Montague Company
Model Number	136LB/UFLC-36R
Weight	780 lbs
Width	36″
Depth	37.25″
Installation Type	free standing
Range Type	heavy duty/modular range
Base Type	oven base
Oven Type	standard oven
Number Of Ovens	1
Control Type	manual control
Top Configuration	charbroiler
Exterior Finish	stainless steel front
Top	(1) charbroiler
Certifications	cETLus, NSF, CE
Total BTU	154,000
Oven BTU	40,000
Griddle/Charbroiler Location	full surface
