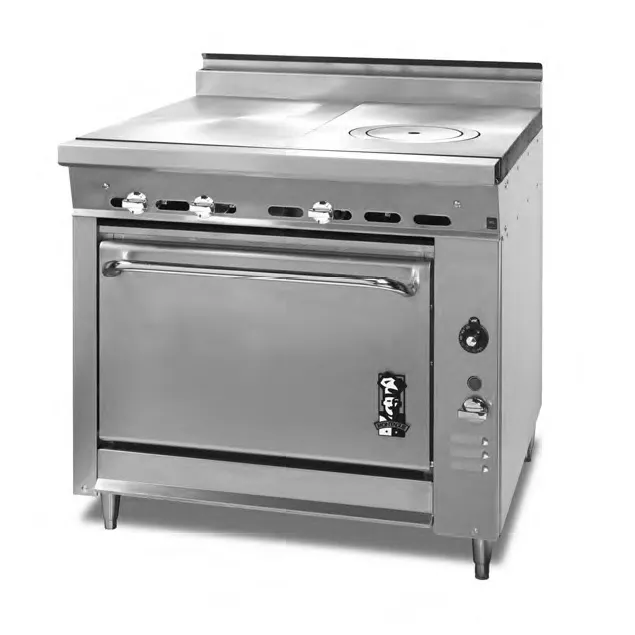

Montague Company V136-15 Heavy Duty Gas Range With Convection Oven
Overview
The V136-15, (1) 18" even heat hot top (L), (1) 18" ring/cover hot top (R), convection oven base, stainless steel front & 4" flue riser, black sides, 6" high adjustable stainless steel legs, 115,000 BTU, cETLus, CE.*The product includes indirect-fired 40,000 BTU/hr convection oven with counterweighted door, porcelainized steel interior, five-position rack guides and three wire pan racks standard.
Even Heat Hot Top
- One 18” wide x 31” deep (457 x 787mm)
- Positioned left
- Heavy cast iron precision-ground plate
- Two cast iron, Even Heat 20,000 BTU/hr burners
- Heat transfer studs cast in plate bottom
- 2” (51mm) side and front flanges isolate heat under plate
- Insulating partition between top sections
French-Type Hot Top
- One 18” wide x 37” deep (457 x 787mm)
- Positioned on right
- Heavy-duty cast iron precision-ground plate
- Front-positioned removable ring & cover
- Front-fired, banjo-type 35,000 BTU/hr burner
- Heat transfer studs cast in plate bottom
- 2” (51mm) side and front flanges isolate heat under plate
- Insulating partition between top sections
- Sloped, brick-lined flues for better heat transfer
- Drip pan positioned under burners
Montague Company V136-15 Standard Features
- 26-5/8” wide x 22-1/4” deep x 15” high (676 x 565 x 381mm) cooking compartment
- Muffled, indirect fired design with blower, for fast even cooking
- Heavy duty counterweighted oven door — no springs
- Five position adjustable nickel-plated rack supports, with three racks standard
- Interior panels and door porcelain lined for long life & easy cleaning
- Low-to-500°F (260°C) thermostat mounted in insulated cool zone
- 40,000 BTU/hr cast iron burner with automatic ignition safety pilot
- 6’ (1829mm) cord with 3-prong plug (grounding NEMA 5-15P)
Montague Company V136-15 Specifications
- Base Style/Type : With Convection Oven
- Burners : 4
- BTU/hr (kW) : 115,000 (33.7)
- Shipping Weight: 640 lbs (290 kg)
- Other Details : See spec. sheet
From The Manufacturer
Legend™ Heavy Duty Range, gas, 36", (1) 18" even heat hot top (L), (1) 18" ring/cover hot top (R), convection oven base, stainless steel front & 4" flue riser, black sides, 6" high adjustable stainless steel legs, 115,000 BTU, NSF, cETLus, CE
Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.
