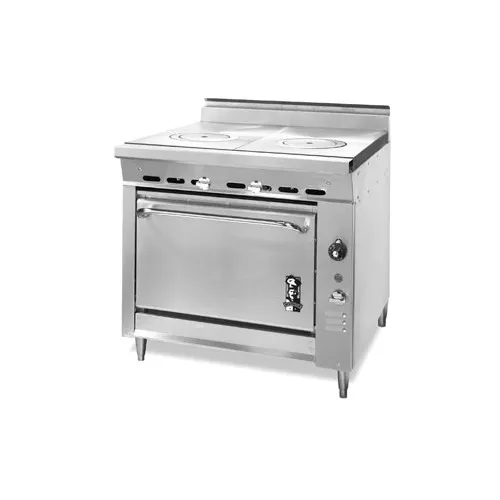

Montague Company V136-9A 36" Gas Heavy Duty Range w/ (2) French Tops, Convection Oven, 110.000 BTU

Overview

The V136-9A,(2) 18" hot tops with rings/covers, convection oven base, stainless steel front & 4" flue riser, black sides, 6" high adjustable stainless steel legs, 110,000 BTU, cETLus, CE. *The product includes indirect-fired 40,000 BTU/hr convection oven with counterweighted door, porcelainized steel interior, five-position rack guides and three wire pan racks standard.

French-Style Hot Tops

• One 31” wide x 25” deep (787 x 635mm)
• Heavy-duty cast iron precision-ground plates
• Front-positioned removable ring & cover
• Front-fired, banjo-type 35,000 BTU/hr burners
• Heat transfer studs cast in plate bottoms
• 2” (51mm) side and front flanges isolate heat under plates
• Insulating partition between top sections
• Sloped, brick-lined flues for better heat transfer
• Drip pan positioned under burners

Montague Company V136-9A Standard Features

• 26-5/8” wide x 22-1/4” deep x 15” high (676 x 565 x 381mm) cooking compartment
• Muffled, indirect fired design with blower, for fast even cooking
• Heavy duty counterweighted oven door — no springs
• Five position adjustable nickel-plated rack supports, with three racks standard
• Interior panels and door porcelain lined for long life & easy cleaning
• Low-to-500°F (260°C) thermostat mounted in insulated cool zone
• 40,000 BTU/hr cast iron burner with automatic ignition safety pilot
• 6’ (1829mm) cord with 3-prong plug (grounding NEMA 5-15P)

Montague Company V136-9A Specifications

• Base Style/Type : With Convection Oven
• Burners : 3
• BTU/hr (kW) : 70,000 (32.2)
• Shipping Weight: 640 lbs (290 kg)
• Other Details : See spec. sheet
