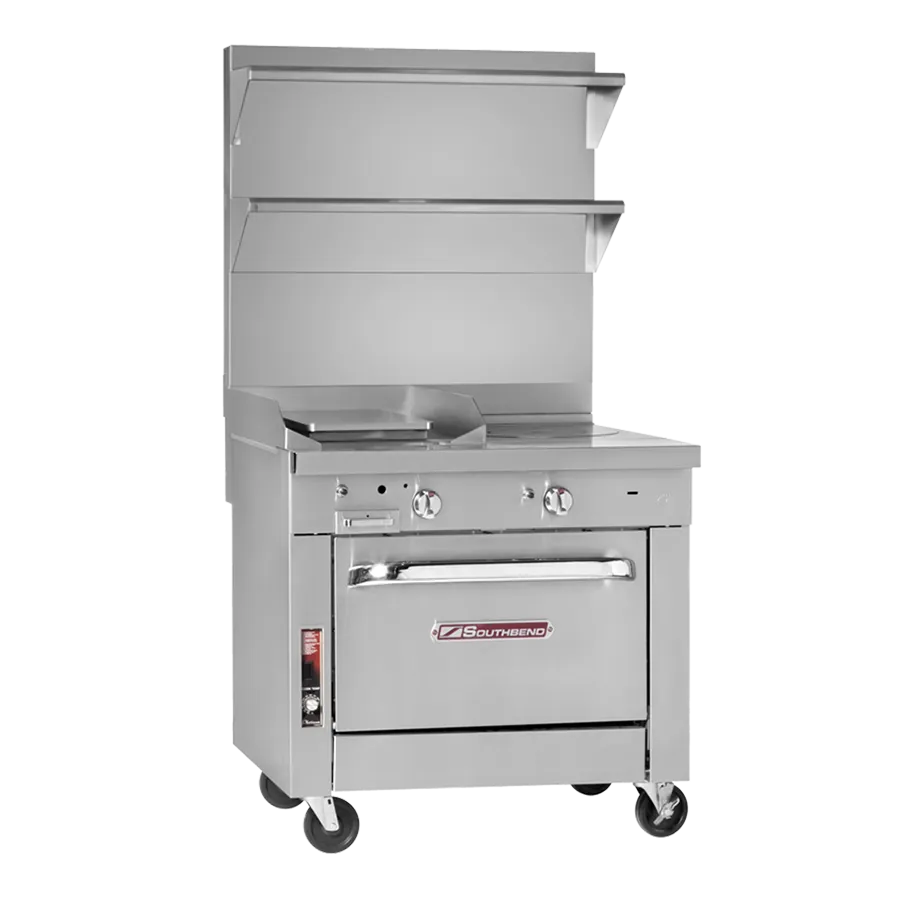

Southbend 36" Sectional Range (2) 18" French Hot Tops
Standard Features
- 36" wide sectional range with (2) 18'' french hot tops available with a standard-oven base, convection-oven base, cabinet base, or as a modular unit (for mounting on countertop, refrigerated or freezer base)
- Two 35,000 BTU NAT (35,000 BTU LP) burner
- Battery spark ignition
- Removable steel plates with center surface temperature up to 900°F at the center
- High/Low setting
- 9-1/4" deep front rail
- Stainless steel front, sides, rear and exterior bottom
- Fully insulated lining and burner box
- 1-1/4" front gas manifold and 1" rear gas connection
- 5" high stainless steel flue riser
- Free battery-design assistance
- (1) year limited parts and labor warranty
Standard Features of Oven-Base Models
- Stainless steel cabinet with removable doors that open from the center
Standard Features of Cabinet-Base Model
- 45,000 BTU NAT (45,000 BTU LP) oven with standing pilot
- Heavy duty, stainless steel door handle
- Porcelain enamel interior
- Oven racks (2 for standard oven, 3 for convection oven)
- “Insta-On” thermostat ranging from 175°F to 550°F
- Standard-oven interior is large enough (26" by 26-1/2") for sheet pans to fit either way
- Convection-oven models have 1/2 hp, two-speed blower
WARRANTY & SERVICE REQUEST
“Do you need service? Is your product under warranty? Please fill out the form at the link below.”
Warranty & Service Request FormFrom The Manufacturer
Platinum Heavy Duty Range, gas, 36", (2) 18" French hot tops, manual controls, battery spark ignition, (1) cabinet base, stainless steel front, sides, rear, exterior bottom & 6" adjustable legs, 70,000 BTU, CSA, NSF
