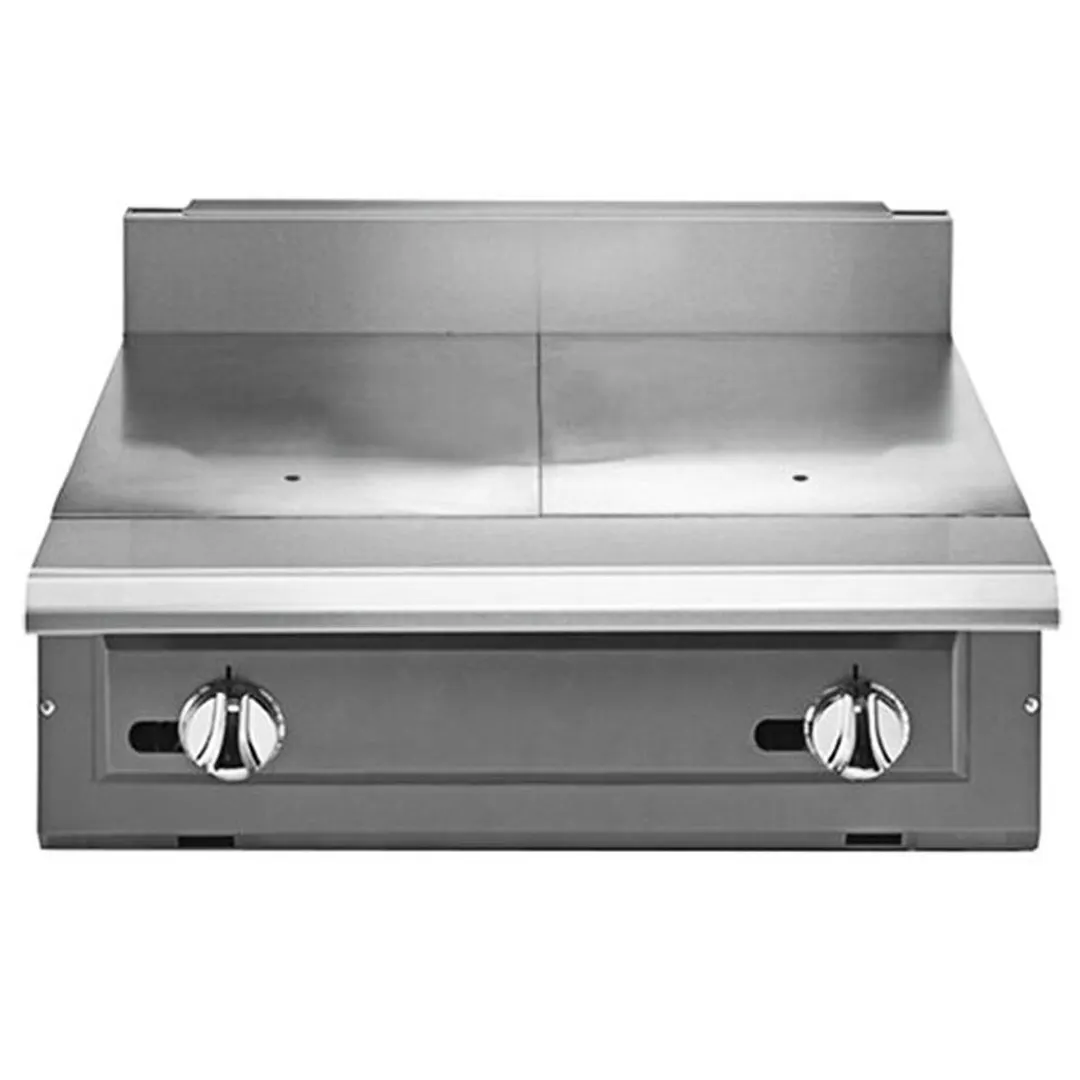

The Vulcan V224H V Series Heavy Duty Gas Range
Why Use Vulcan Ranges?
Versatile and dependable, Vulcan's commercial ranges are built for operations of all sizes. Innovative features help you improve productivity and deliver the high-quality, consistent professional results that keep guests coming back for more. Perfect for steady high heat continuous grilling and searing maximizing production of the footprint Solid 1⁄2" polished steel plate that withstands high temperatures, but still easy to clean. Sheds excessive grease in a trough on 3-sides
What Sets Vulcan Ranges Apart?
The name you trust and the 150 year heritage to back it. Vulcan's line of best in class ranges offers tailored configurations to fit your unique operation. Durable construction and customer-backed features lower overall cost of ownership and provide structural integrity for years of reliable use.Create your perfect workstation with Vulcan's customizable options. Choose from over 300 range configurations in both gas and electric, medium and heavy duty.
Durability and Modularity
The V Series provides modularity from top to bottom and side to side,
allowing for flexibility in your menu—today and tomorrow. Because of its
unique design, the V Series enables you to bring artistry to the front of
the house, while maintaining the durability and reliability you’ve come to
expect from Vulcan.
With V Series ranges, it’s easy to create the line-up you are looking for
or to redesign your kitchen—and your menu—after the initial installation.
Top sections of the same size, including open burners, hot tops, French
tops, charbroilers and griddles, are interchangeable. The same goes for
like-sized bases, from refrigerated bases and cabinets to standard,
convection, and finishing ovens. You have the freedom to create your
perfect work station.
Vulcan V224H Features
- Stainless steel front, front top ledge, burner box, sides, base, and stub back
- 1 1⁄4" diameter front gas manifold (not available with rear gas)
- Two 30,000 BTU/hr. burners
- Individual pilots and controls for each burner
- Heavy duty hot top castings
- 3⁄4" ground steel griddle plate
- 4" stainless steel stub riser
- 6" adjustable stainless steel legs for floor models (no legs for modular model)
- Stainless steel cabinet base door
- Universal rack guides, with one removable shelf (cabinet base)
- V224H: 24" Wide - 2 Hot Tops / Modular
- One year limited parts and labor warranty
Vulcan V224H Specification
24" wide heavy duty gas range, Vulcan Model No. V224H (modular) and V224HB (cabinet base). Stainless steel front, front top ledge, burner box, sides, base, stub back and 4" adjustable legs. 11⁄4" diameter front gas manifold and 11⁄4" rear gas, capped. Two 30,000 BTU/hr. burners, individual pilots and controls for each burner. Heavy-duty hot-top castings. Total input 60,000 BTU/hr.
Vulcan V224H Accessories
- 3⁄4", 1", or 1 1⁄4" gas pressure regulator (specify gas type – pack loose)
- Set of 4 casters, 6" high (two locking)
- 6" adjustable flanged feet for cabinet base models
- Extra removable shelves for use with Universal rack guides (cabinet base)
- Banking strip
- 10", 22", or 34" high back risers (no shelf)
- 22" single deck solid or flo-thru high shelf risers
- 34" double deck solid or flo-thru high shelf risers
- Common condiment type, telescoping plate rails (starting at 24" length)
- Flexible gas hose with quick disconnect & restraining device
