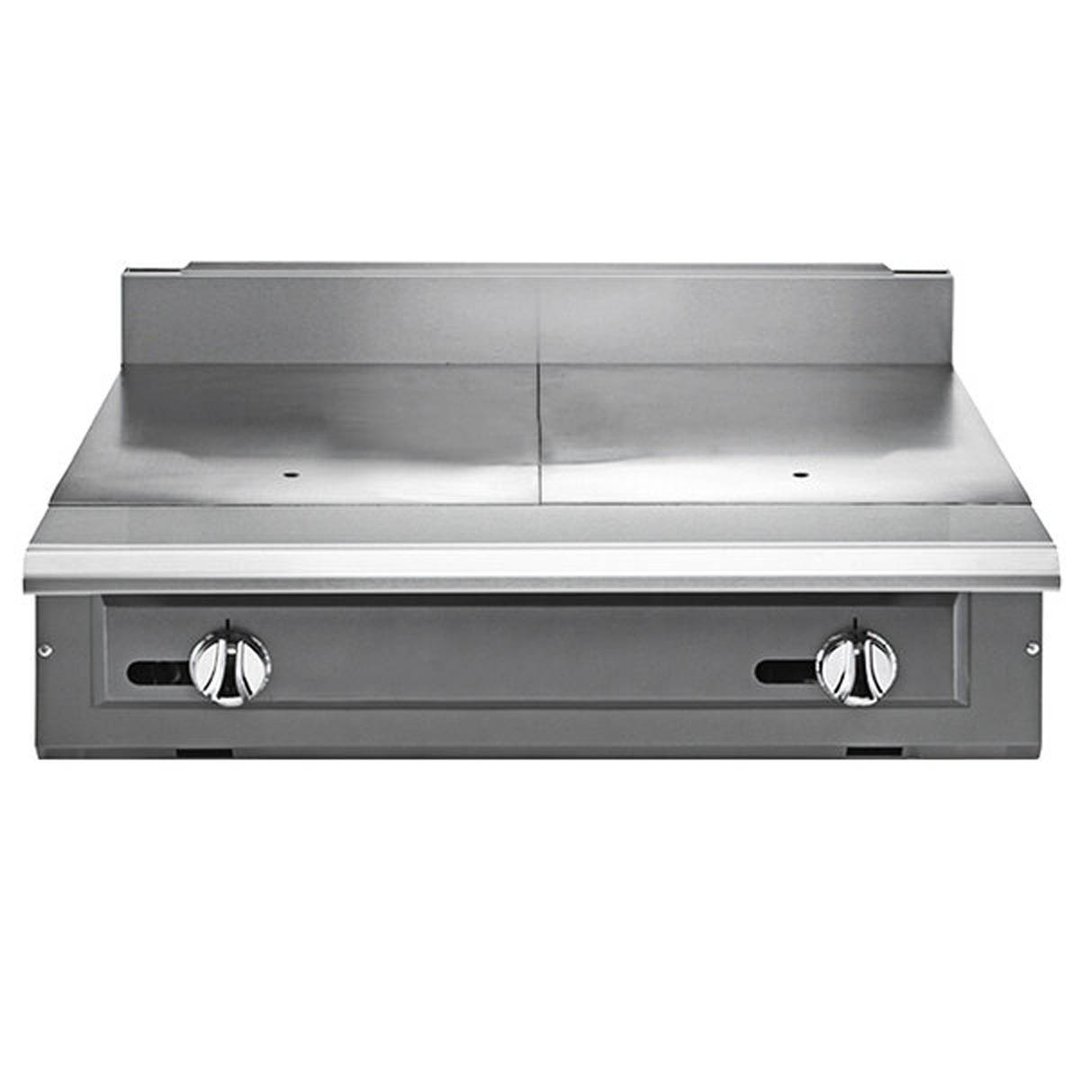

The Vulcan V236H V Series Heavy Duty Gas Range
Why Use Vulcan Ranges?
Versatile and dependable, Vulcan's commercial ranges are built for operations of all sizes. Innovative features help you improve productivity and deliver the high-quality, consistent professional results that keep guests coming back for more. Perfect for steady high heat continuous grilling and searing maximizing production of the footprint Solid 1⁄2" polished steel plate that withstands high temperatures, but still easy to clean. Sheds excessive grease in a trough on 3-sides
What Sets Vulcan Ranges Apart?
The name you trust and the 150 year heritage to back it. Vulcan's line of best in class ranges offers tailored configurations to fit your unique operation. Durable construction and customer-backed features lower overall cost of ownership and provide structural integrity for years of reliable use.Create your perfect workstation with Vulcan's customizable options. Choose from over 300 range configurations in both gas and electric, medium and heavy duty.
Durability and Modularity
The V Series provides modularity from top to bottom and side to side,
allowing for flexibility in your menu—today and tomorrow. Because of its
unique design, the V Series enables you to bring artistry to the front of
the house, while maintaining the durability and reliability you’ve come to
expect from Vulcan.
With V Series ranges, it’s easy to create the line-up you are looking for
or to redesign your kitchen—and your menu—after the initial installation.
Top sections of the same size, including open burners, hot tops, French
tops, charbroilers and griddles, are interchangeable. The same goes for
like-sized bases, from refrigerated bases and cabinets to standard,
convection, and finishing ovens. You have the freedom to create your
perfect work station.
Vulcan V236H Features
- Stainless steel front, front top ledge, burner box, sides, base, and stub back
- 1 1⁄4" diameter front gas manifold (not available with rear gas)
- 30,000 BTU/hr. hot top burners (2 each)
- 50,000 BTU/hr. standard oven burner
- 32,000 BTU/hr. convection oven burner
- Porcelain oven cavity
- Individual pilots and controls for each burner
- Heavy-duty cast hot top plates
- 3⁄4" ground steel griddle plate
- 4" stainless steel stub riser
- 6" adjustable stainless steel legs for “S”, “C”, and “B” models
- Stainless steel cabinet base doors for “B” units
- Universal rack guides, one removable shelf (cabinet base)
- V236H: 2 - 18" Full Hot Tops / Modular
- One year limited parts and labor warranty
Vulcan V236H Specification
36" wide heavy duty gas range, Vulcan Model No. V236H (modular), V236HB (cabinet base), V236HS (standard oven base) or V236HC (convection oven base). Modular construction for ease of installation. Stainless steel front, front top ledge, plate ledge, sides, base, burner box, stub back, and 6" adjustable legs on all “B”, “S”, & “C” models. Stainless steel extra deep crumb tray. Two 30,000 BTU/hr. burners with individual pilots and controls for each burner. Heavy duty cast hot-top plates. Grates and plates are separate from aeration bowl for ease of cleaning. 18" ground steel griddle plate. Standard Oven: 50,000 BTU/hr. with porcelain oven bottom, sides, and interior door panel. Convection Oven: 32,000 BTU/hr. with porcelain oven bottom, sides, and interior door panel (115v-1 phase blower motor, 4 amps, 9' cord & plug). Ovens measure 27"w x 27"d x 13"h. Standard oven thermostats adjust from 150° – 550°F. Convection oven adjusts from 175° – 550°F and the optional finishing oven for standard ovens adjusts from 300° – 650°F. Standard oven supplied with one rack, convection oven with two. Both ovens allow for three rack positions. Oven door is heavy-duty with counter weight door hinges. 11⁄4" front manifold connection and 11⁄4" rear gas, capped. Total input 60,000 BTU/hr.
Vulcan V236H Accessories
- 3⁄4", 1", or 1 1⁄4" gas pressure regulator (specify gas type – pack loose)
- Set of 4 casters, 6" high (two locking)
- 6" adjustable flanged feet for cabinet base models
- Extra removable shelves for use with Universal rack guides (cabinet base)
- Banking strip
- 10", 22", or 34" high back risers (no shelf)
- 22" single deck solid or flo-thru high shelf risers
- 34" double deck solid or flo-thru high shelf risers
- Common condiment type, telescoping plate rails (starting at 24" length)
- Flexible gas hose with quick disconnect & restraining device
