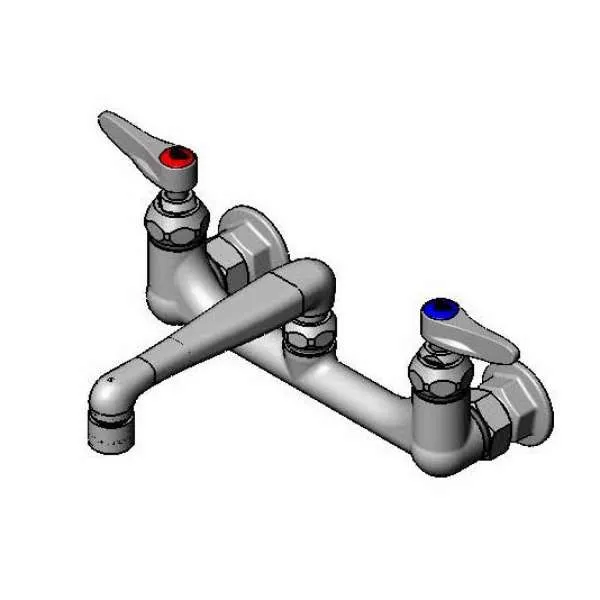

T&S Brass B-0230-01-QT-VR Double Pantry Faucet
General Info
The B-0230-01-QT-VR, 8" wall mount mixing faucet with polished chrome plated brass body, 6" cast swing spout with 2.2 GPM vandal resistant aerator, compression cartridges with spring checks, lever handles with vandal resistant screws and1/2" NPT female inlets.
T&S Brass B-0230-01-QT-VR Features
- 8” wall mount mixing faucet with polished chrome plated brass body
- 6” cast spout
- Lock washer provided for rigid application
- 2.2 GPM vandal resistant aerator, Series 7 (B-0199-07)
- Quarter-turn Eterna compression cartridges w/ spring checks to prevent cross flow of water
- Lever handles w/ color coded indexes
- Vandal resistant screws
- 1/2” NPT female eccentric inlets w/ Ø 2” flanges
- Adjustable centers from 7 3/4” to 8 1/4”
- Material: Polished chrome plated brass body & tubular spout and chrome plated metal handles
T&S Brass B-0230-01-QT-VR Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate : 2.2 GPM @ 60 psi
- Other Details : See spec. sheet
From The Manufacturer
Mixing Faucet, 8" wall mount, 6" cast spout swing nozzle with 2.2 GPM VR aerator, quarter-turn Eterna cartridges with spring checks, lever handles with color coded indexes, 1/2" NPT female inlets, low lead, cCSAus, ADA Compliant
