T&S Brass B-0243 Double Pantry Faucet
General Info

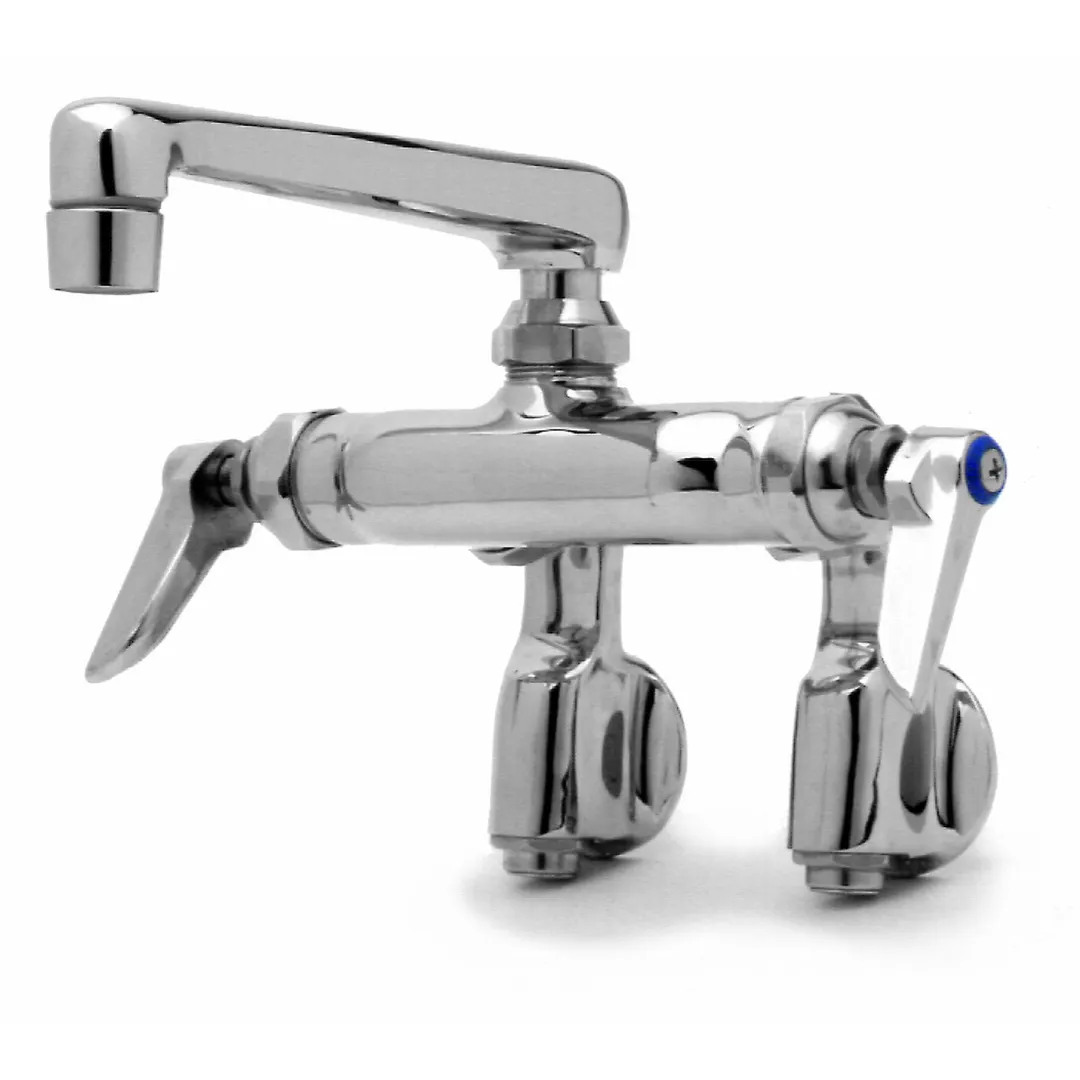

The B-0243, Wall mount mixing faucet with polished chrome plated brass body, 6" cast spout with 2.2 GPM aerator, compression cartridges with spring checks, lever handles and 1/2" NPT female adjustable arm inlets w/ integral service stops.
T&S Brass B-0243 Features
- Adjustable inlet wall mount mixing faucet with polished chrome plated brass body
- 6" cast spou
- 2.2 GPM aerator, Series 1 (B-0199-01)
- Eterna compression cartridges
- Lever handles w/ color coded indexes
- 1/2” NPT female adjustable arm inlets w/ Ø2” flanges
- Integral Service Stops
- Adjustable centers from 2 1/4” to 8 1/4” above or below centerline
- Material: Polished chrome plated brass body, chrome plated cast brass spout and chrome plated metal handles
T&S Brass B-0243 Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate :2.2 GPM @ 60 psi
- Other Details : See spec. sheet
From The Manufacturer
Sink Mixing Faucet, 6" cast nozzle, wall mounted, with aerator, adjustable inlet arms with integral stops (from 2-1/4" to 8-1/4" centers) 1/2" IPS female with flange, lever handles, quarter-turn Eterna cartridges, low lead, ADA Compliant
