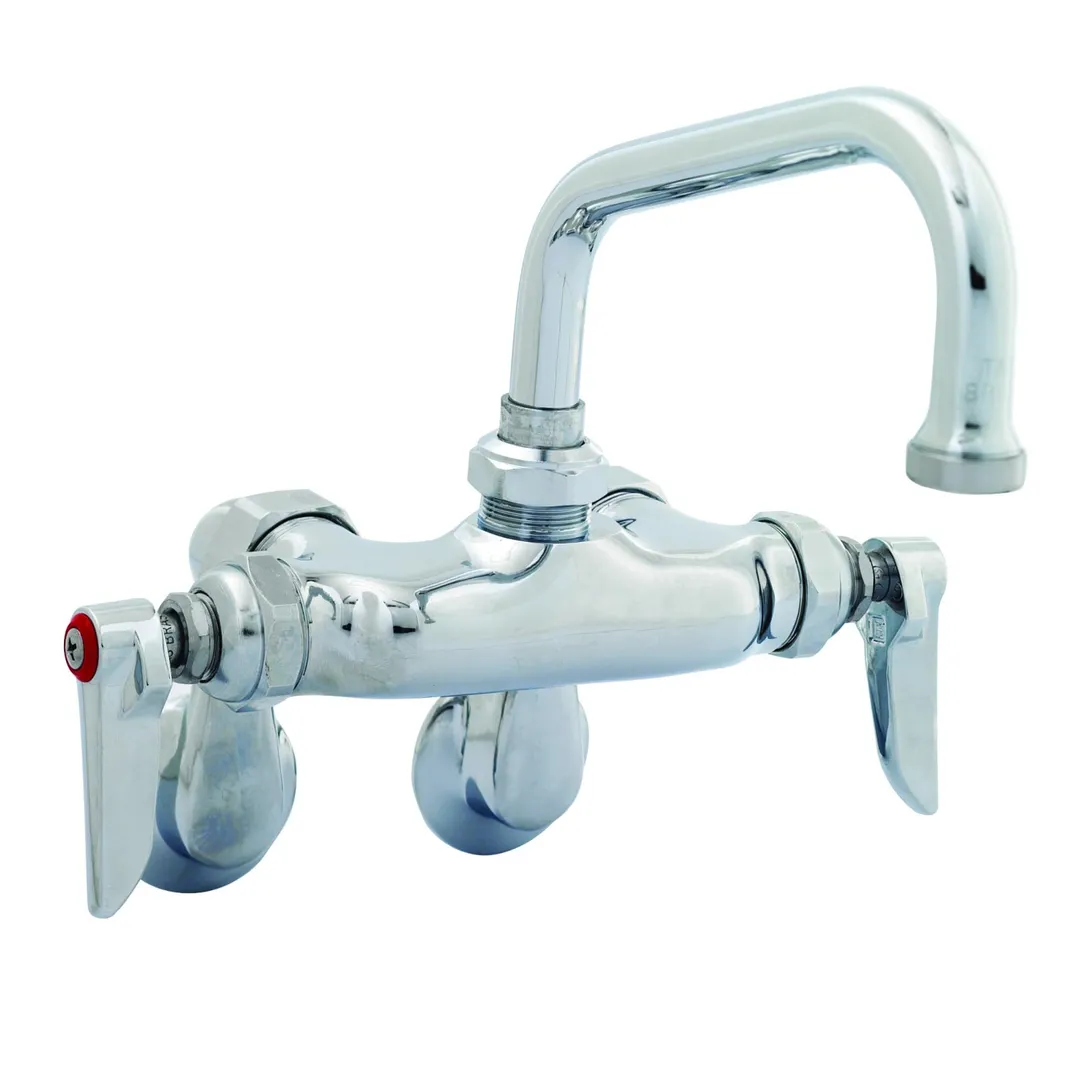

T&S Brass B-0237 Double Pantry Faucet
General Info
The B-0237, Wall mount mixing faucet with polished chrome plated brass body, 6" swing nozzle with stream regulator outlet, compression cartridges with spring checks, lever handles and 1/2" NPT female adjustable arm inlets.
T&S Brass B-0237 Features
- Adjustable inlet wall mount mixing faucet with polished chrome plated brass body
- 6” swing nozzle
- Stream regulator outlet, Series 1
- Eterna compression cartridges
- Lever handles w/ color coded indexes
- 1/2” NPT female adjustable arm inlets w/ Ø2” flanges
- Adjustable centers from 2 1/4” to 8 1/4” above or below centerline
- Material: Polished chrome plated brass body & tubular spout and chrome plated metal handles
T&S Brass B-0237 Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate :17.00 GPM @ 60 psi
- Other Details : See spec. sheet
From The Manufacturer
Sink Mixing Faucet, 6" swing nozzle, wall mounted, adjustable inlet arms (from 2-1/4" to 8-1/4" centers) 1/2" IPS female flange, lever handles, Eterna cartridges, low lead, ADA Compliant
