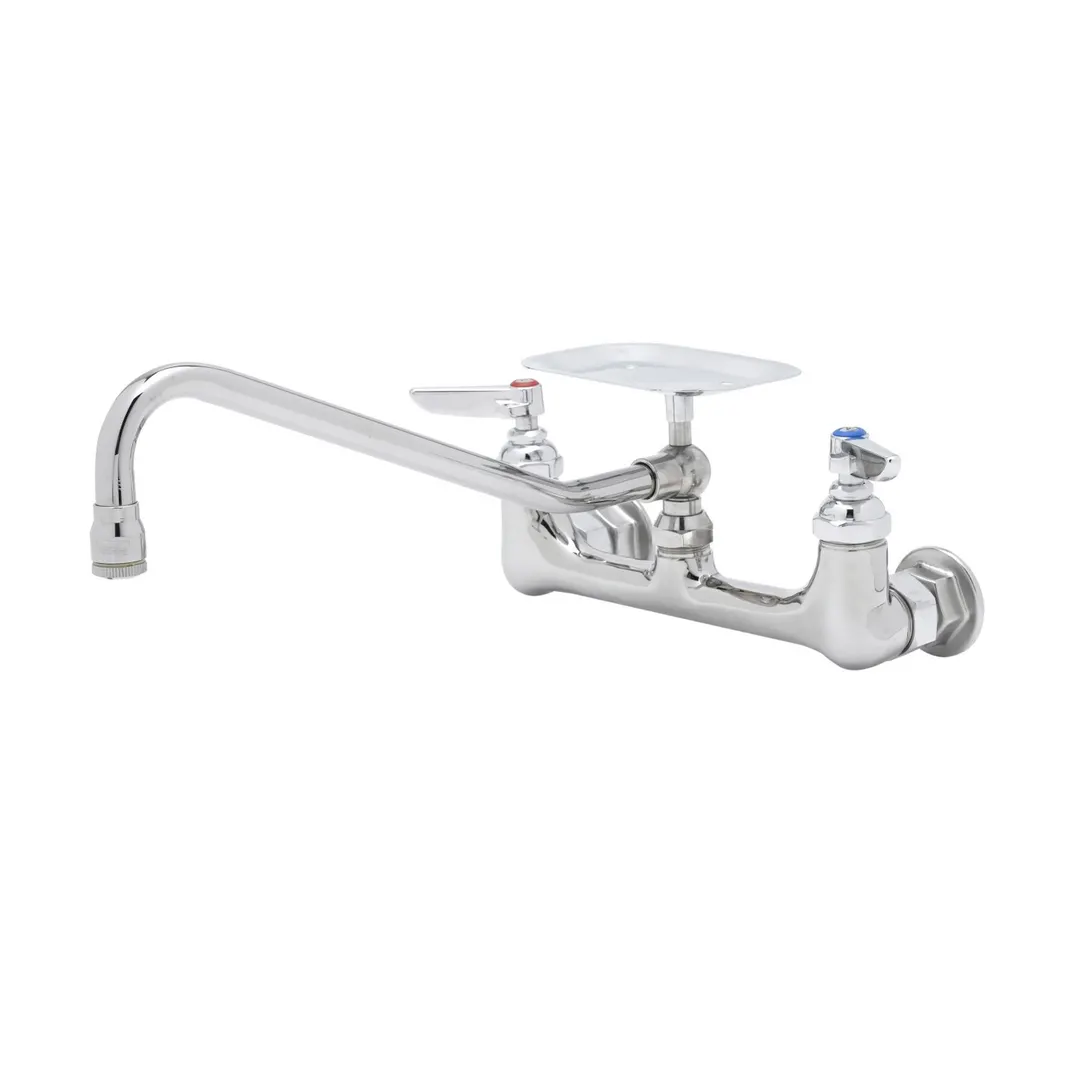

T&S Brass B-0233-02 Double Pantry Faucet
General Info
The B-0233-02, 8" wall mount mixing faucet with polished chrome plated brass body, 8 1/16" swivel/rigid nozzle with stream regulator outlet and soap dish, compression cartridges with spring checks, lever handles and 1/2" NPT female inlets.
T&S Brass B-0233-02 Features
- 8” wall mount mixing faucet with polished chrome plated brass body
- 8 1/16" swivel/rigid nozzle w/ soap dish
- Lock washer provided for rigid application
- Stream regulator outlet, Series 2
- Quarter-turn Eterna compression cartridges w/ spring checks to prevent cross flow of water
- Adustable centers from 7 3/4" to 8 1/4"
- Lever handles w/ color coded indexes
- 1/2” NPT female inlets w/ Ø 2” flanges
- Material: Polished chrome plated brass body & tubular spout and chrome plated metal handles
T&S Brass B-0233-02 Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate :16.50 GPM [62.46 L/min] @ 60 psi [4.14 bar]
- Other Details : See spec. sheet
From The Manufacturer
Mixing Faucet, wall mounted, 8" adjustable centers, 8" swing nozzle with stream regulator outlet, lever handles with color coded indexes, attached soap dish, 1/2" NPT female inlets, quarter-turn Eterna cartridges, low lead, ADA Compliant
