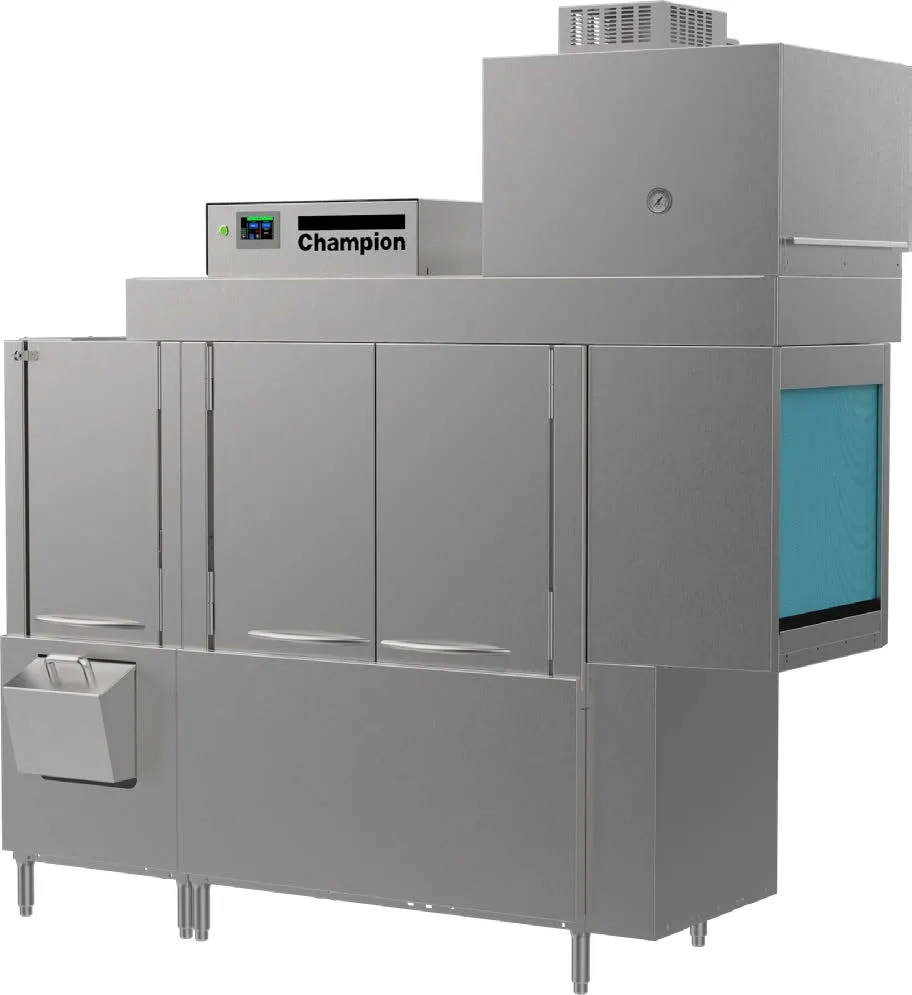

High‑Efficiency Ventless Conveyor Dishwasher for Busy Kitchens
Maximize throughput with Champion’s ventless 255‑rack/hr conveyor dishwasher, cutting energy use and eliminating exhaust hoods.
Key Features
- Ventless heat recovery saves up to 13 kW and returns less than 70 °F conditioned air to the dish room.
- Proportional rinse and digital pattern‑cloned stainless steel nozzles deliver consistent coverage on every rack.
- Built‑in 21 kW electric booster provides high‑temp wash with a 70° rise, supporting 255 racks per hour.
- Heavy‑gauge stainless steel construction with 20″ vertical clearance fits 18″ × 26″ sheet pans and includes leak‑proof insulated doors.
- NSF and ENERGY STAR® certified, with proactive maintenance software and self‑diagnostics via the top‑mounted HMI.
From The Manufacturer
Pro Series, 54”W, (54” single tank with 22” prewash with removable scrap basket) rack conveyor dishwasher, ventless heat recovery technology, proportional rinse, progressive anti-jam drive system, top mounted control panel with HMI user interface, Proactive maintenance software, 100 gallons per hour with energy sentinel (idle pump shut-off), (255) racks per hour, built-in 70° rise booster, electric tank heat, single-piece wash chamber design, single-piece stainless steel upper & lower wash arms manifolds, internal removable scrap basket & dual-piece scrap screens, 20” standard vertical clearance which accommodate 18” x 26” sheet pans, full 180° opening leak proof insulated hinged access doors, automatic tank fill, door safety switches, leak-proof ball valve drains, lower front & side enclosure panels, stainless steel heavy gauge construction including base & legs, electric tank heat, 2 HP prewash with removable scrap basket & wash pump, single point machine & separate booster connection, vent fan control, stainless steel rear manifolds, includes: (2) 20" x 20" peg racks & (1) 20" x 20" flat rack, NSF, CULus, Made in USA
Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.
