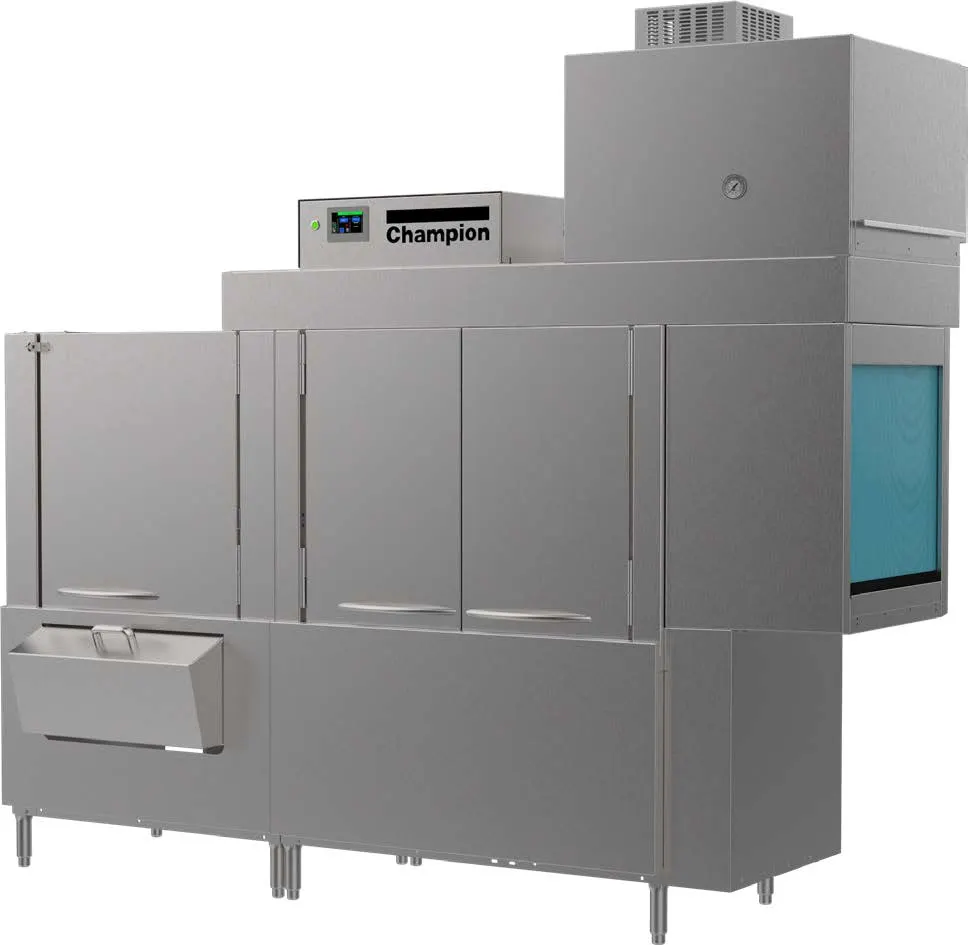

High‑Throughput Ventless Conveyor Dishwasher for Busy Kitchens
The 90 PRO‑HD‑VHR moves 255 racks/hr and slashes energy with vent‑less heat recovery.
Key Features
- Vent‑less heat recovery eliminates a Type II exhaust hood, saving up to 13 kW.
- Integrated 21 kW electric booster adds a 70°F rise for high‑temp sanitization.
- All‑stainless steel wash chamber, heavy‑gauge base and NSF/cULus certification ensure durability.
- Energy‑sentinel idle pump shut‑off and automatic tank fill limit water use to 100 GPH.
From The Manufacturer
Pro Series, 54”W, (54” single tank with 36” prewash with removable scrap basket) rack conveyor dishwasher, ventless heat recovery technology, proportional rinse, progressive anti-jam drive system, top mounted control panel with HMI user interface, Proactive maintenance software, 100 gallons per hour with energy sentinel (idle pump shut-off), (255) racks per hour, built-in 70° rise booster, electric tank heat, single-piece wash chamber design, single-piece stainless steel upper & lower wash arms manifolds, internal removable scrap basket & dual-piece scrap screens, 20” standard vertical clearance which accommodate 18” x 26” sheet pans, full 180° opening leak proof insulated hinged access doors, automatic tank fill, door safety switches, leak-proof ball valve drains, lower front & side enclosure panels, stainless steel heavy gauge construction including base & legs, electric tank heat, 2 HP prewash & wash pump, single point machine & separate booster connection, vent fan control, stainless steel rear manifolds, includes: (2) 20" x 20" peg racks & (1) 20" x 20" flat rack, NSF, cULus, Made in USA
Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.
