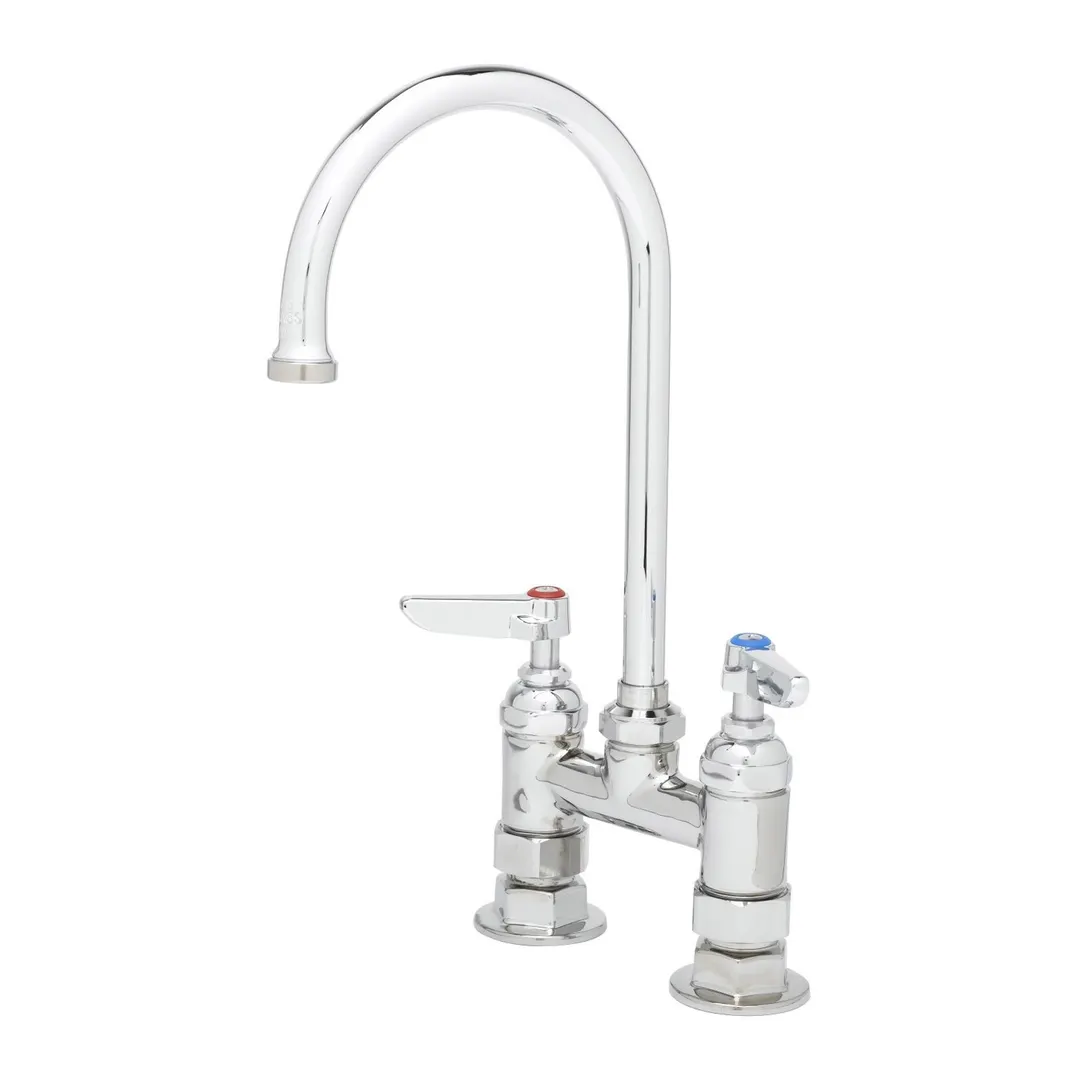

T&S Brass B-0325-M Deck Mixing Faucet
General Info
The B-0325-M, 4" deck mount mixing faucet with polished chrome plated brass body, 5 3/4" swivel/rigid gooseneck with stream regulator outlet, compression cartridges with spring checks, lever handles and 1/2" NPT female inlets.
T&S Brass B-0325-M Features
- 4” deck mount mixing faucet with polished chrome plated brass body
- 5 3/4" swivel/rigid gooseneck
- Includes lock washer to convert to rigid
- Stream regulator outlet, Series 1
- Quarter-turn Eterna compression cartridges w/ spring checks to prevent cross flow of water
- Lever handle w/ color coded indexes
- 1/2” NPT female eccentric inlets w/ Ø 2” flanges
- Adjustable centers from 3 3/4” to 4 1/4”
- Material: Polished chrome plated brass body & tubular spout and polished chrome plated metal handles
T&S Brass B-0325-M Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate : 17.9 GPM @ 60 psi
- Other Details : See spec. sheet
From The Manufacturer
Mixing Faucet, deck mount, 4" centers, 5-3/4" swivel gooseneck spout with Series 1 stream regulator outlet (includes lock washer to convert to rigid), quarter-turn Eterna cartridges with spring checks, lever handles with color-coded indexes, polished chrome-plated brass body, 1/2" NPT female inlets, cCSAus, ADA Compliant
