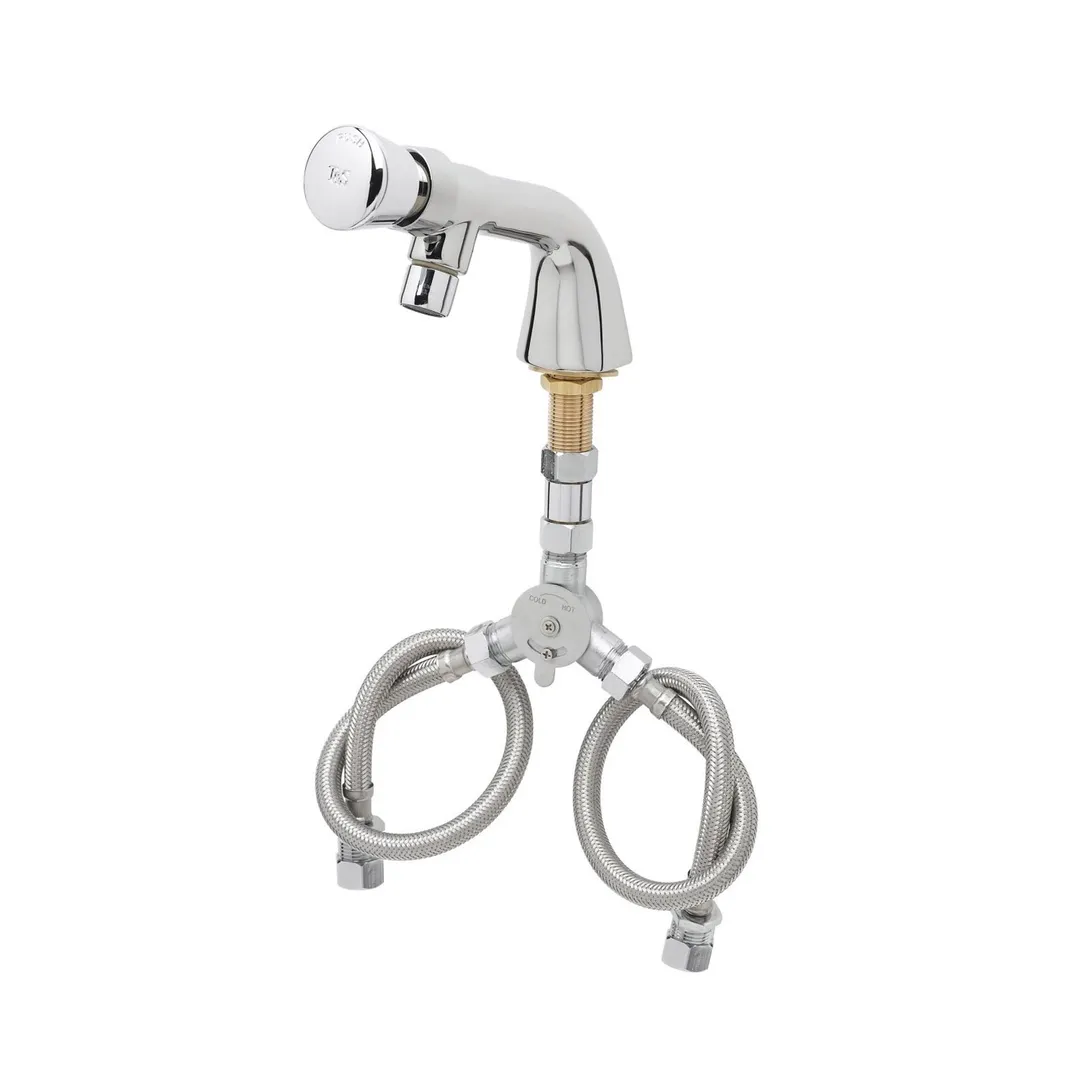

T&S Brass B-0807 Slow Self-Closing Metering Faucet
General Info
The B-0807, Single hole, single temperature deck mount with polished chrome plated brass body, 2.2 GPM aerator, metering cartridge, blank push button cap, mechanical mixing valve with integral check valves and 18" flexible stainlesssteel supply hoses with 3/8" compression female inlets.
T&S Brass B-0807 Features
- Single hole, single temperature deck mount faucet w/ polished chrome plated brass body
- 2.2 GPM aerator, Series 2 (B-0199-02)
- Metering cartridge
- Adjustable metering cycle, 10 to 30 seconds
- Blank push button cap w/ vandal resistant screw
- Mechanical mixing valve w/ integral check valves
- 18" flexible stainless steel hoses w/ 3/8" compression female intlets
- Material: Polished chrome plated brass body and chrome plated metal handle
T&S Brass B-0807 Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate : 2.2 GPM [8.33 L/min] @ 60 psi [4.14 bar]
- Water Consumption :
- @ 10 sec = .37 gal [1.40 L]
- @ 15 sec = .55 gal [2.08 L]
- Other Details : See spec. sheet
From The Manufacturer
Mixing Faucet, slow self-closing, heavy duty, push button, 1/2" NPS threaded shank, 1/2" O.D. slip inlet, approximately 5-1/2"H, outlet 2" above deck, 1/4" IPS tailpieces on 4" centers, specify hot/cold/blank
