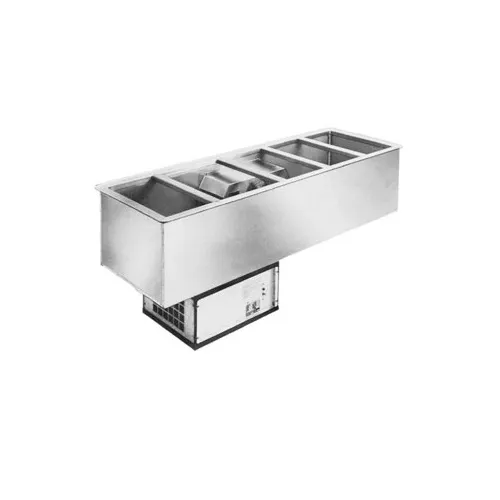

Atlas Metal WCM-BT-3 Drop-In Cold Pan (Refrigerated,Air Flow System and Self-Contained with Defrost System)
General Info And Purpose
The WCM-BT series cold pan is the most efficient refrigerated cold food display available anywhere. The traditional cold-wall system is replaced by a forced air evaporator, enabling precise temperature control and maximum cold transfer to your food product. The drop-in pan can be installed in virtually any counter and is fully self-contained—just plug it in and turn it on.
Construction
The pan is fully insulated for maximum efficiency and energy savings, and is provided with a factory applied gasket so that it can be installed in the finest wood fixtures without marring the counter top. The pan is constructed of stainless steel and is provided with a 3/4″ stainless steel drain. The forced air evaporator drains into a condensate evaporator.
Atlas Metal WCM-BT-3 Standard Features
- Forced air evaporator blower system for maximum efficiency in cooling - more consistent food product temperature
- Automatic Defrost System
- Fully insulated for maximum efficiency and energy savings
- Factory applied gasket - makes installation a snap and seals units to the counter top, thus eliminating seepage
- Accommodates standard 12” X 20” pans with the use of separator channel(s), or fractional size pans with the use of optional adapter bars
- 1-Year Parts & Labor Warranty
- NSF Certified; UL Listed
Atlas Metal WCM-BT-3 Specifications
- PAN SIZE : 19-7/8” X 39-1/4 X 14” (50.4 X 99.6 X 35.5cm)
- CUT-OUT REQUIRED : 22-1/4” X 41-3/4” (56.5 X 106cm)
- SHIP WT. (LBS.): 228 (103,4kg)
- OTHER DETAILS : See spec. sheet
