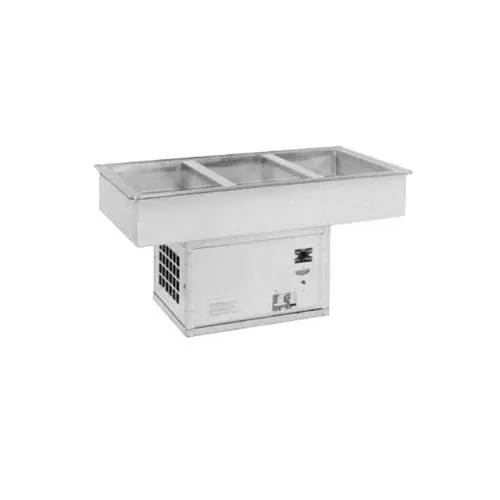

Atlas Metal WCMD-C-X-1 Drop-In Cold Pan (Refrigerated Cold Pane Without Compressor)
General Info And Purpose
This full depth cold pan, 9-3/4″, has copper tubing wrapped around its side walls as well as the bottom, to meet the strictest health department codes. The drop-in pan can be installed in virtually any counter and can be provided as fully self-contained—just plug it in and turn it on, or remote, where there’s a need to locate the compressor at a different location. The WCMD-CX Units include Refrigerated Cold Pan, Thermo stat, Cap Tube & Drier (for hook up in field by others)
Construction
The pan is fully insulated for maximum efficiency and energy savings, and is provided with a factory applied gasket so that it can be installed in the finest wood fixtures without marring the counter top. The pan is constructed of stainless steel and is provided with a 3/4″ stainless steel drain. The cold pan accommodates standard 12″ x 20″ pans—perfect for any cold food serving application.
Atlas Metal WCMD-C-X-1 Standard Features
- Accommodates your deepest pan or insert - 9-3/4” deep
- Refrigerated copper tubing around the bottom and all sides - meets your toughest health department standards
- Fully insulated for maximum efficiency and energy savings
- Factory applied gasket - makes installation a snap and seals units to the counter top, thus eliminating seepage
- Factory applied gasket - makes installation a snap and seals units to the counter top, thus eliminating seepage
- Accommodates standard 12” X 20” pans with the use of separator channel(s), or fractional size pans with the use of optional adapter bars
- 1-Year Parts & Labor Warranty
- NSF Certified; UL Listed
Atlas Metal WCMD-C-X-1 Specifications
- MODEL : Remote Refrigeration
- SHIP WT. (LBS.): 92 (41,7kg)
- OTHER DETAILS : See spec. sheet
