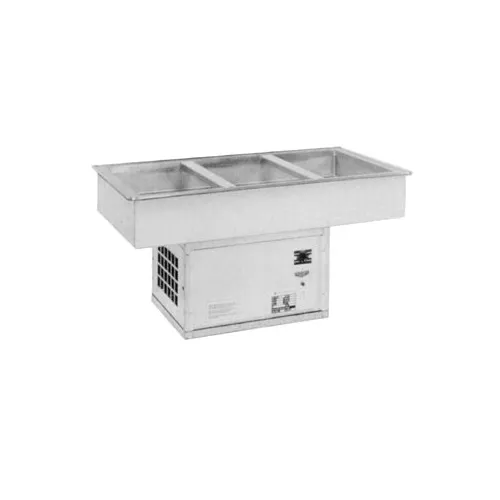

Atlas Metal WCM-1 Cold Food Drop-In Unit, Refrigerated, 1-Pan Size

General Info And Purpose

The drop-in pan can be installed in virtually any counter and can be provided as fully self-contained—just plug it in and turn it on, or remote, where there’s a need to locate the compressor at a different location.

Construction

The pan is fully insulated for maximum efficiency and energy savings, and is provided with a factory applied gasket so that it can be installed in the finest wood fixtures without marring the counter top. The pan is constructed of stainless steel and is provided with a 3/4″ stainless steel drain. The cold pan accommodates standard 12″ x 20″ pans, perfect for any cold food serving application.

Atlas Metal WCM-1 Standard Features

• Fully insulated for maximum efficiency and energy savings
• Factory applied gasket - makes installation a snap and seals units to the counter top, thus eliminating seepage
• Accommodates standard 12” X 20” pans with the use of separator channel(s), or fractional size pans with the use of optional adapter bars
• 1-Year Parts & Labor Warranty
• NSF Certified; UL Listed

Atlas Metal WCM-1 Specifications

• PAN OPENINGS : 1
• PAN SIZE : 19-7/8” X 11-3/4” X 4-5/8” (50.4 X 29.8 X 11.7cm)
• WIDHT : 16” (40.6cm)
• CUT-OUT REQUIRED : 22-1/4” X 14-1/4” (56.5 X 36.1cm)
• SHIP WT. (LBS.): 116 (52,6kg)
• OTHER DETAILS : See spec. sheet
