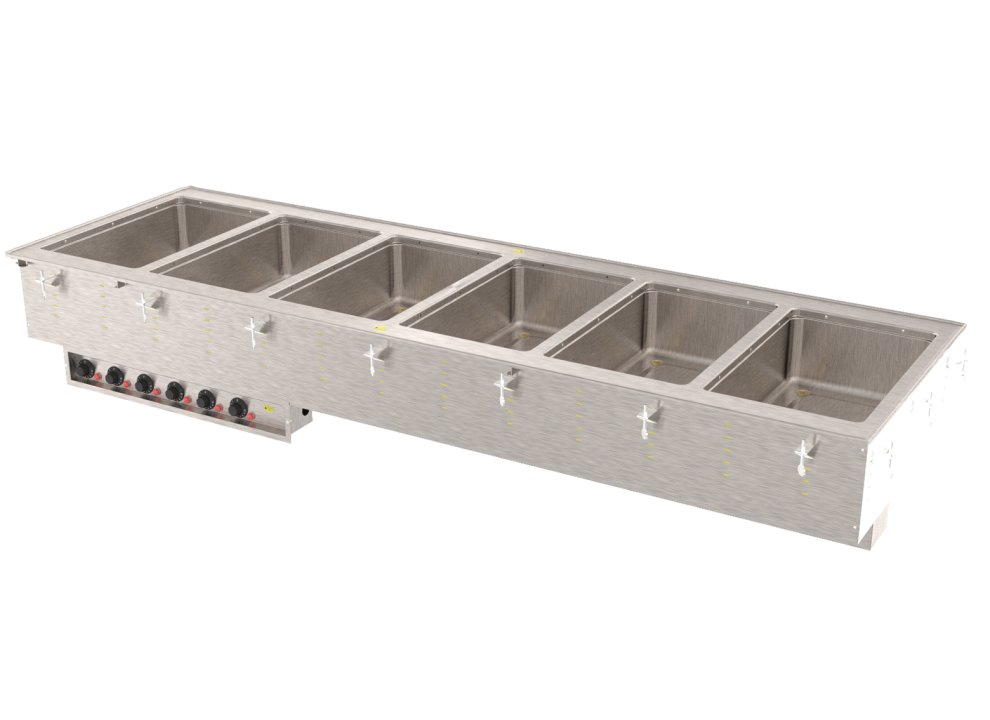

The Vollrath 3640981 Six Well Hot Modules
Why Use Vollrath Hot Modules?
Offering exceptional reliability and dependability, Vollrath's line of hot drop-in units holds your food items at perfectly warm serving temperatures and promises a level of consistency that your customers will not be able to resist.The modular drop-in is designed for top-mount installation and does not require hard-wiring. Full-perimeter drip-edge contains spills and condensation within the stainless steel countertop area of the drop-in. Dripedge adds additional strength to the flange area. Operation with water is required for even heating of the food product.
Vollrath 3640981 Features
- Top is 18-gauge stainless steel
- Breaker gasket included for installation under drip-edge
- Flat work surface around opening
- Deep drawn well is 20-gauge stainless steel
- Power indicator light
- Standard drain is ½” (1.3 cm) stainless steel fitting welded to pan with ball valve shutoff below exterior housing
- Manifold drain option is 1” (2.5 cm) copper tubing and retains individual well shut-off and adds shutoff.
- Auto-fill eliminates the need to monitor wells and add water, reducing operating and labor costs. easily to manifold drain assembly using simple tools. The check valve/siphon prevents cross contamination of drain and potable water lines. Requires separate electrical service.
- Unit insulated on sides, between wells, and below element assembly with high-density glass fiber insulation.
- Exterior housing is 20-gauge galvanized steel
- 6 ft (182.2 cm) cord with plug
- Stainless control panel has 3 ft (91.4 cm) teethered flexible rubber cord. Shipped connected to drop-in, but may also be remotely mounted.
- Positioning clips provided to center drop-in within cutout
- Standard mounting clips adjustable for up to 3” (7.6 cm) thick counters
- One-year parts and labor warranty
From The Manufacturer
Hot Food Well Unit, Drop-In, electric, (6) 12" x 20" individual 20 gauge stainless steel insulated wells, 81-1/4"W x 26"D x 21-1/2"H (overall), wet operation only, auto-fill, individual thermostatic controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, 18 gauge galvanized exterior housing, includes positioning clips, 6000 watts, 208-240v/60/1-ph, 21.6-25.0 amps, cord with NEMA 6-50P, NSF, cULus, Made in USA
