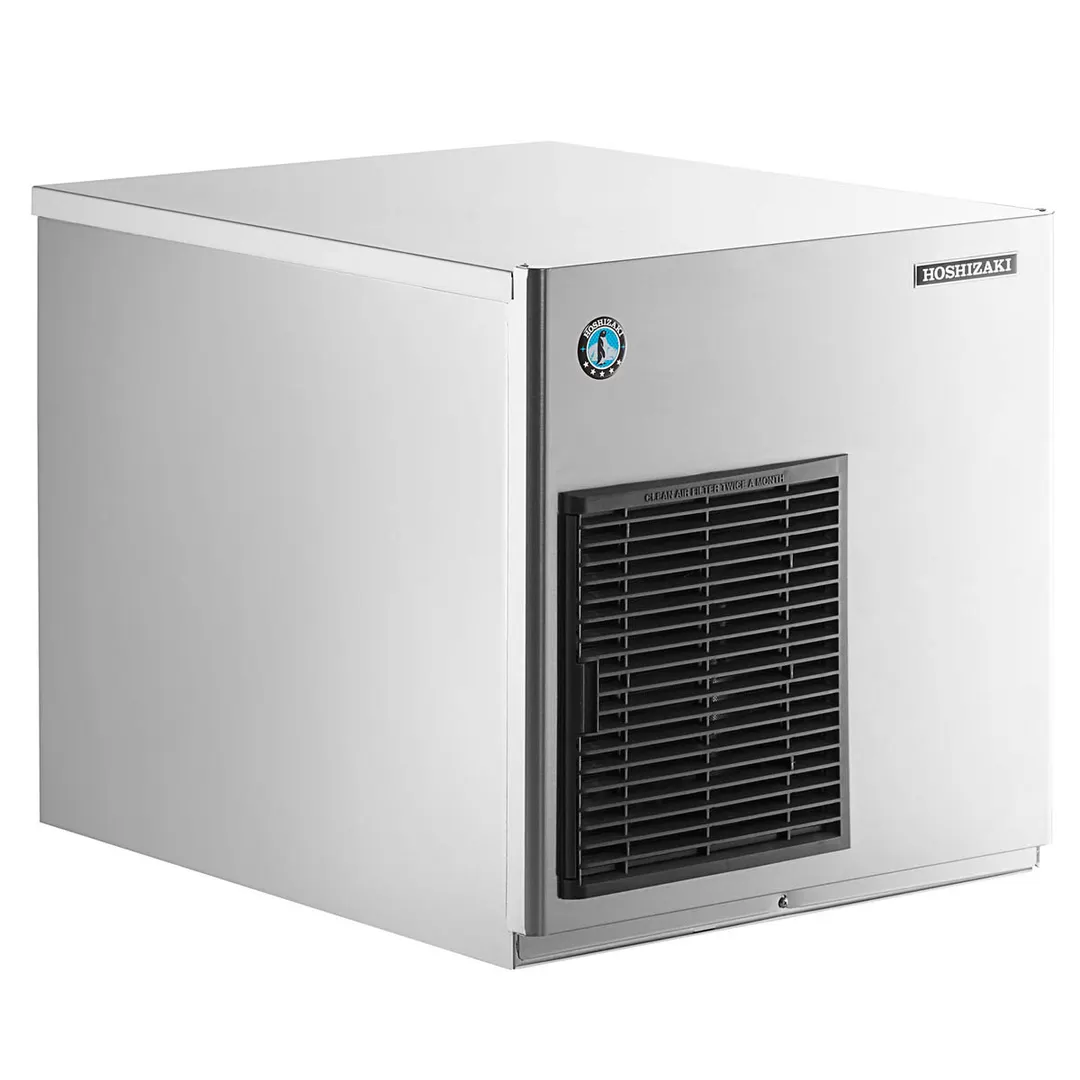

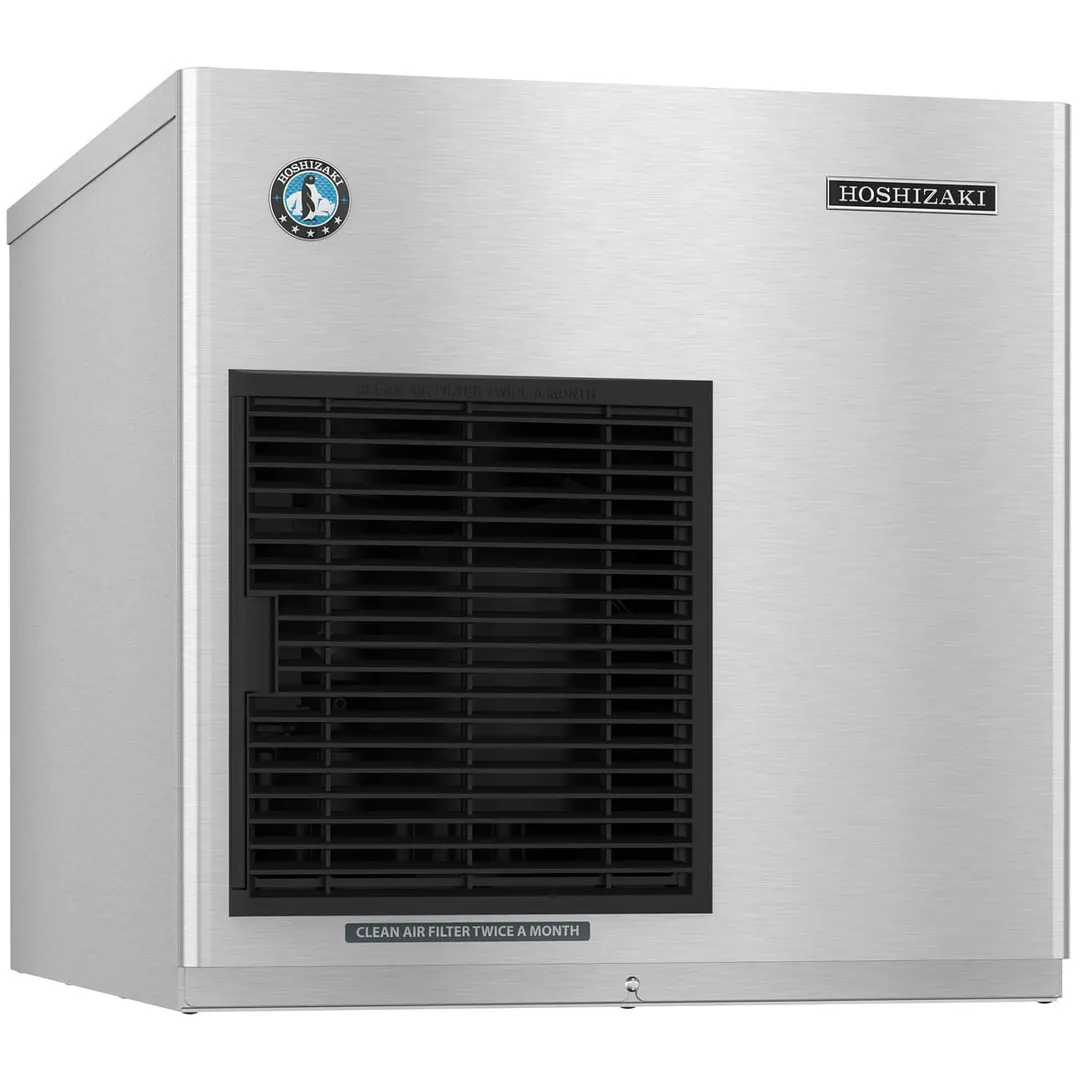

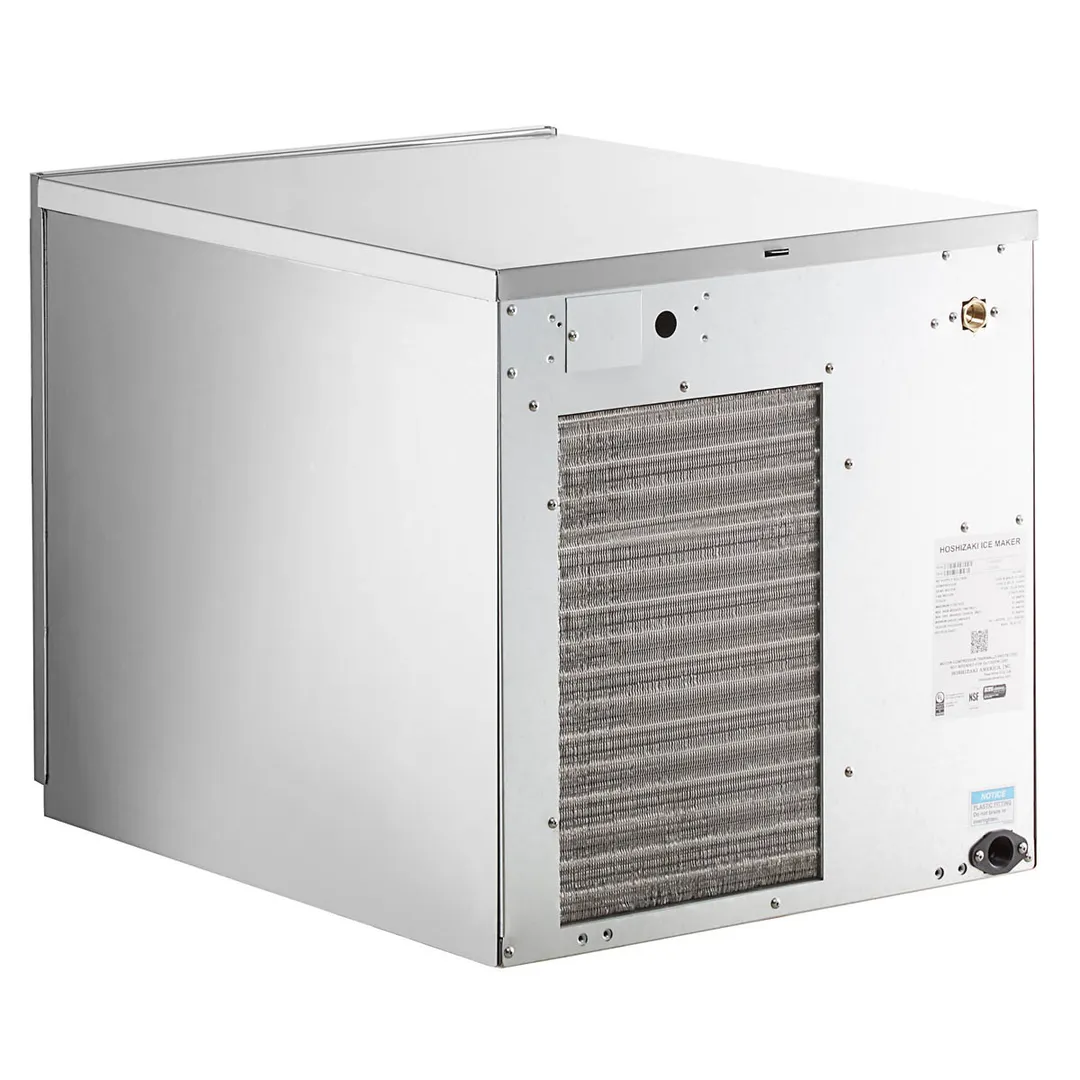

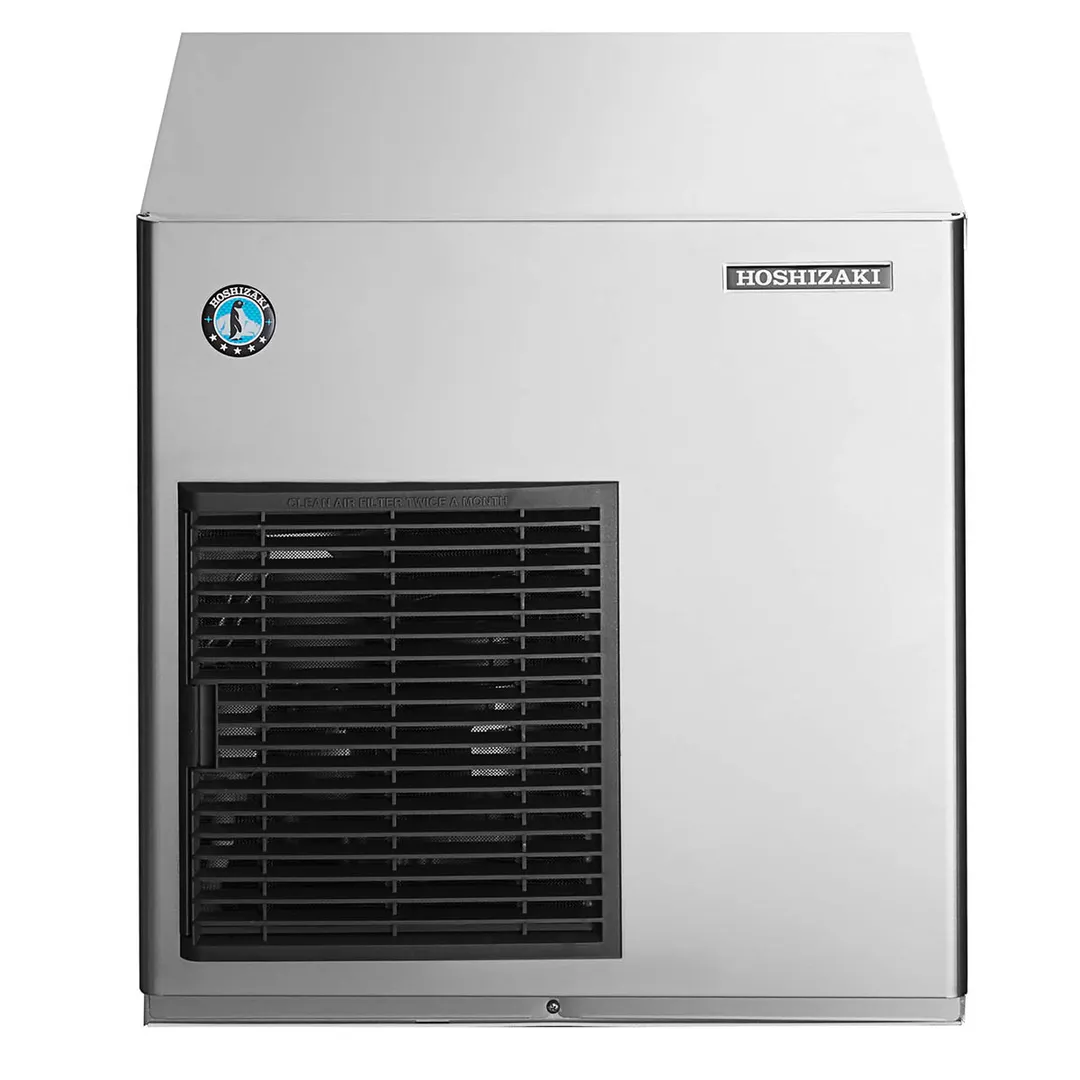

Hoshizaki F-450MAJ-C 22" Nugget Ice Machine Head, Air Cooled, 412 lb/24 hr

Hoshizaki F-450MAJ-C 22" Nugget Ice Machine Head

Hoshizaki F-450MAJ-C 22" Nugget Ice Machine Head is a high-capacity commercial ice maker that can produce up to 412 lbs. (186.88 Kg) of nugget ice daily. It boasts a compact design with a 22-inch (55.08 cm) height and width, allowing it to easily fit into narrow spaces while maintaining a large production capacity. Hoshizaki F-450MAJ-C 22" Nugget Ice Machine Head has a stainless-steel housing to withstand the daily rigors of commercial settings.

Hoshizaki F-450MAJ-C 22" commercial ice machine head features a stainless steel auger to streamline ice production, ensuring a long service life. This unit also features Advanced CleanCycle24™, providing clean and clear ice by removing sediments with 2-second flush cycles every 60 minutes. Additionally, it features an infrared ice bin control to prevent production from overflowing.

Technical Specifications of Hoshizaki F-450MAJ-C 22" Nugget Ice Machine Head

• Width: 22 in (55.8 cm)
• Depth: 27.375 in (69.532 cm)
• Height: 22 in (55.08 cm)
• Production Capacity: Up to 412 lbs. (186.88 Kg) per 24 hours
• Installation Type: Modular
• Ice Type: Nugget ice
• Condenser Type: Air-cooled
• Refrigerant: R-404A
• Energy Consumption: 6.10 kWh per 100 lb. (45.359 kg)
• Water Consumption: 12 gals (45.424 L) per 100 lb. (45.359 kg)
• Electrical Configuration: 115v/60/1-ph, 10.8 amps
• Certifications: NSF and UL
• Shipping Weight: 170 lb. (77.110 kg)

Required Operating Conditions for Hoshizaki F-450MAJ-C 22"

The Hoshizaki F-450MAJ-C 22" Nugget Ice Machine Head requires proper installation and operating conditions as follows to provide optimal performance:

• Clearance Requirements: You should leave 6 in (15.24 cm) clearance on the rear and sides for proper air circulation and facilitate maintenance. Moreover, it requires 24” (69.96 cm) clearance at the top to allow auger removal.
• Distance from Heat Sources: This ice machine must be positioned away from heat sources such as ovens, grills, or fryers.
• Ambient Temperature Range: 45°F to 100°F (7.22°C to 37.78°C)
• Water Temperature Range: 45°F to 90°F (7.22°C to 32.22°C)
• Water Pressure: 10 to 113 PSIG
• Voltage Range: 104V to 127V
• Plumbing Specifications: The water supply line requires a minimum of 1/4 in (0.635 cm) nominal ID copper water tubing. The drain line requires a minimum 3/4 in (1.905 cm) nominal ID hard pipe.

Key Features of Hoshizaki F-450MAJ-C 22" Nugget Ice Machine Head

• Large Volume Ice Production: Hoshizaki F-450MAJ-C 22" Nugget Ice Machine Head produces up to 412 lbs. (186.88 Kg) per 24 hours. It allows side-by-side installation on compatible Hoshizaki ice bins (B-700, B-800, and B-900) to maximize the ice production up to 824 lbs (373.76 Kg).
• Space Saving Design: Despite its high production capacity, this Hoshizaki ice maker machine features a smaller footprint with 22” (55.88 cm) width and 27.375” (69.532 cm) depth. When mounted side by side, two units cover a 44” (111.76 cm) area, leaving you more floor space to place other appliances.
• Advanced CleanCycle24™ Design: This system runs 2-second flush cycles each hour to clean the particles and dust to produce pure ice, which is suitable for chewing and using inside beverages and drinks.
• Robust Construction: Hoshizaki ice makers are designed and manufactured for the most extended durability with minimized downtime. This unit features a stainless-steel housing to protect against damage. Moreover, the auger is made from stainless steel to produce the highest quality ice and reduce the frequency of maintenance.
• Dependable Components: Hoshizaki F-450MAJ-C 22" Nugget Ice Machine Head is engineered for extended service life in commercial establishments. Hence, its evaporator and refrigerant tubing are coated with insulated foamed-in-place polyurethane. Moreover, it has graphite bearings for greaseless and water-friendly operation. The motor and the gear train are sealed to inhibit water and moisture penetration.
• Infrared Ice Bin Control: This Hoshizaki ice maker monitors the ice level in the ice bin through the sensors. It stops the ice-making process to prevent the excess production.
• Self-Contained Air-Cooled Condenser: This Hoshizaki ice machine is an air-cooled ice maker that has a self-contained condenser. Therefore, it presents an easier installation.
• Eco-Friendly Refrigerant: Hoshizaki F-450MAJ-C 22" Nugget Ice Machine Head uses eco-friendly R-404A refrigerant with zero ozone depletion potential.
• Greater Serviceability: This unit is designed and produced with the highest quality for minimum downtime. Additionally, it features removable air filters and access panels to facilitate regular maintenance, thereby extending its service life.
• Cubelet / Nugget Ice: Hoshizaki F-450MAJ-C 22" Nugget Ice Machine Head produces soft and chewable nugget ice which measures 3/4" x 3/4" x 3/8" x 1/2" (1.9 x 1.9 x 0.95 x 1.27 Cm).
• High Energy Efficiency: This ice machine head uses only 6.10 kWh per 100 lb. (45.359 kg) of ice, making the unit a profitable option for commercial use.
• Certifications: Hoshizaki F-450MAJ-C 22" Nugget Ice Machine Head features NSF and UL certifications with its adherence to official regulations and guidelines.

Applications and Benefits of Hoshizaki F-450MAJ-C 22" Nugget Ice Machine Head

Hoshizaki F-450MAJ-C 22" Nugget Ice Machine Head boasts durable construction and high volume cubelet ice production capacity. Hence, it offers a reliable ice production solution for:

• Restaurants, hotels, and bars for use in drinks, beverages, and desserts to maximize joy and refreshment,
• Healthcare facilities, universities, and offices as a chewable ice in beverages and drinks,
• Convenience stores and supermarkets for retail purposes.

What Type of Ice does the Hoshizaki F-450MAJ-C 22" Nugget Ice Machine Head Produce?

Hoshizaki F-450MAJ-C 22" Nugget Ice Machine Head makes soft and small pellet shape cubelet ice type. Each ice cube has 3/4" x 3/4" x 3/8" x 1/2" (1.9 x 1.9 x 0.95 x 1.27 Cm) dimensions. It can absorb flavors more effectively to maximize beverage and drink enjoyment while providing a long-lasting chill. Hence, this Hoshizaki ice maker is suitable for use in restaurants, bars, hospitals, hotels, and convenience stores.

Related/Complementary Accessories for Hoshizaki F-450MAJ-C 22" Nugget Ice Machine Head

Hoshizaki helps you maintain optimal performance and pure and clear ice production with spare parts and additional accessories:

• Hoshizaki Prefilter Cartridges: The Hoshizaki F-450MAJ-C features a 10” (25.4 cm) E-10 prefilter to remove the large particles and sediments to maximize the water filter lifetime.
• Hoshizaki H9320-51 Water Filters: This ice maker uses hygienic and pure water, which is cleaned through the high-quality water filter.
• Ice Storage Bins & Ice Dispensers: Compatible with Hoshizaki B-250, B-300, B-500, B-700, B-800, B-900 ice bins (Sold separately)

Why Choose Hoshizaki Ice Machines?

Hoshizaki is an industry-leading manufacturer of commercial ice machines and refrigeration equipment. It employs more than 13,000 people and serves more than 60 countries with high-quality ice machines that feature:

• Large Production Capacity: Hoshizaki F-450MAJ-C presents high production volume, which can be doubled by side-by-side mounting on the same ice bin.
• Reliable Warranty: 3 years parts and labor on the entire machine; 5 years parts and labor on the evaporator; 5 years parts on the compressor.
• Clean and Safe Ice: Advanced CleanCycle technology removes sediments and particles inside the interior components.
• Certified for Safety and Sanitation: NSF and UL listed for commercial use.
• Chewable and Soft Cubelet/Nugget Ice: Chewable, light, soft cubelet ice for use in drinks and beverages.
