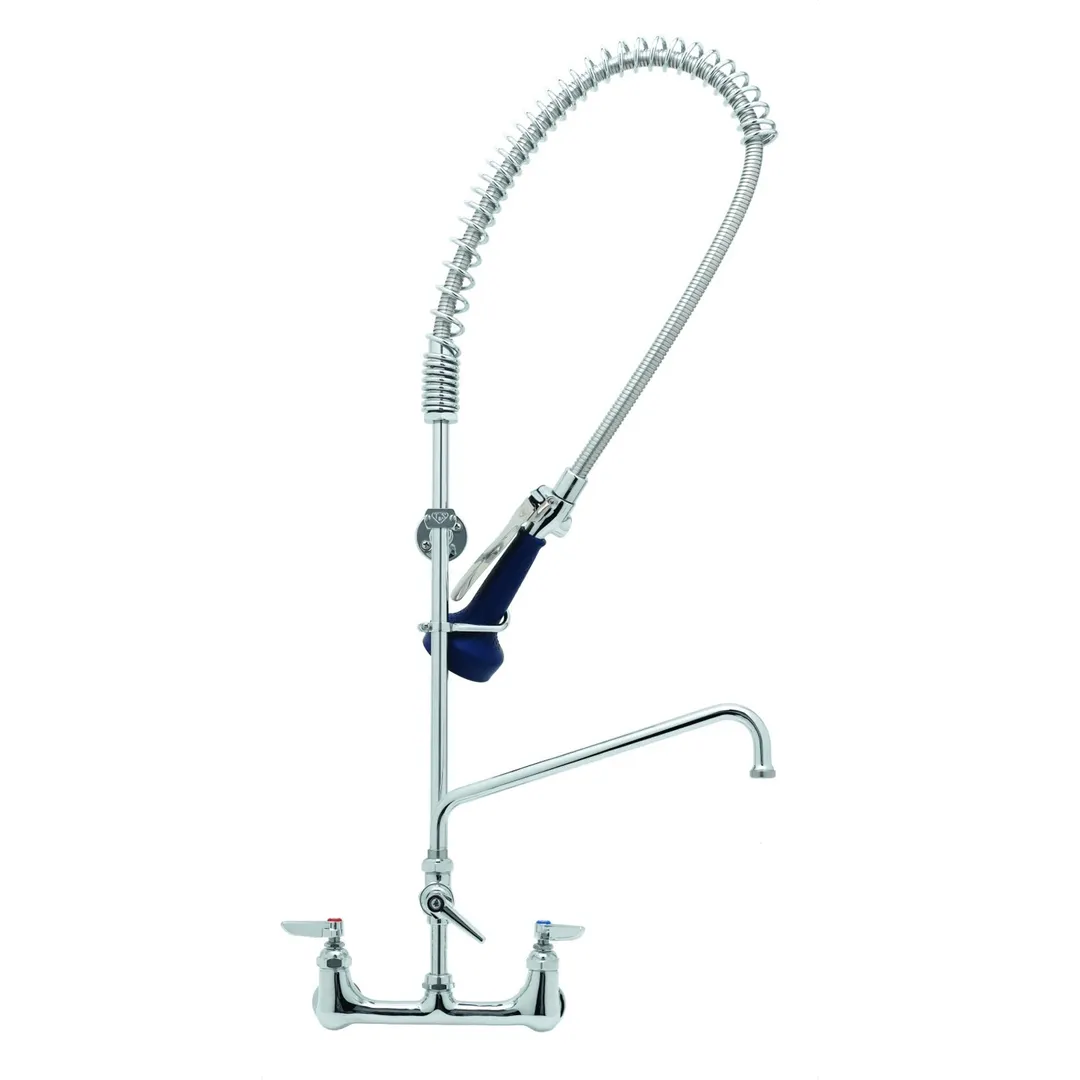

T&S Brass B-0133-16-B08EL Easyinstall Pre-Rinse Unit, Spring Action

General Info

The B-0133-16-B08EL, 8" wall mount mixing faucet with polished chrome plated brass body, add-on faucet with compression cartridge and lever handle, 16" swing nozzle with stream regulator outlet, 18" riser, 44" flexible stainlesssteel hose, 1.07 GPM spray valve, compression cartridges with spring checks, lever handles, installation kit with 1/2" NPT male inlets, 6" adjustable wall bracket,spray valve holder and overhead spring.

T&S Brass B-0133-16-B08EL Features

• 8” wall mount mixing faucet w/ polished chrome plated brass body
• EasyInstall add-on faucet w/ polished chrome plated brass body
• 16” swing nozzle w/ stream regulator outlet, Series 1
• 18” rigid riser
• 44” flexible stainless steel hose
• 1.07 GPM JeTSpray valve with insulated grip handle, stainless steel trigger and trigger lock
• Quarter-turn Cerama cartridges w/ check valves to prevent cross flow of water
• Lever handles w/ color coded indexes
• 1/2" NPT male elbow Installation kit
• 6” adjustable wall bracket
• Material: Polished chrome plated brass body, add-on faucet body, riser & spray valve body, stainless steel hose and chrome plated metal handles

T&S Brass B-0133-16-B08EL Specifications

• Pressure Min/Max : 20 - 125 psi
• Temperature Min/Max : 40 F - 140 F
• Flow Rate :
  • Spray Valve: 1.07 GPM @ 60 psi
  • Add-On Faucet: 8.91 GPM @ 60 psi
• Other Details : See spec. sheet
