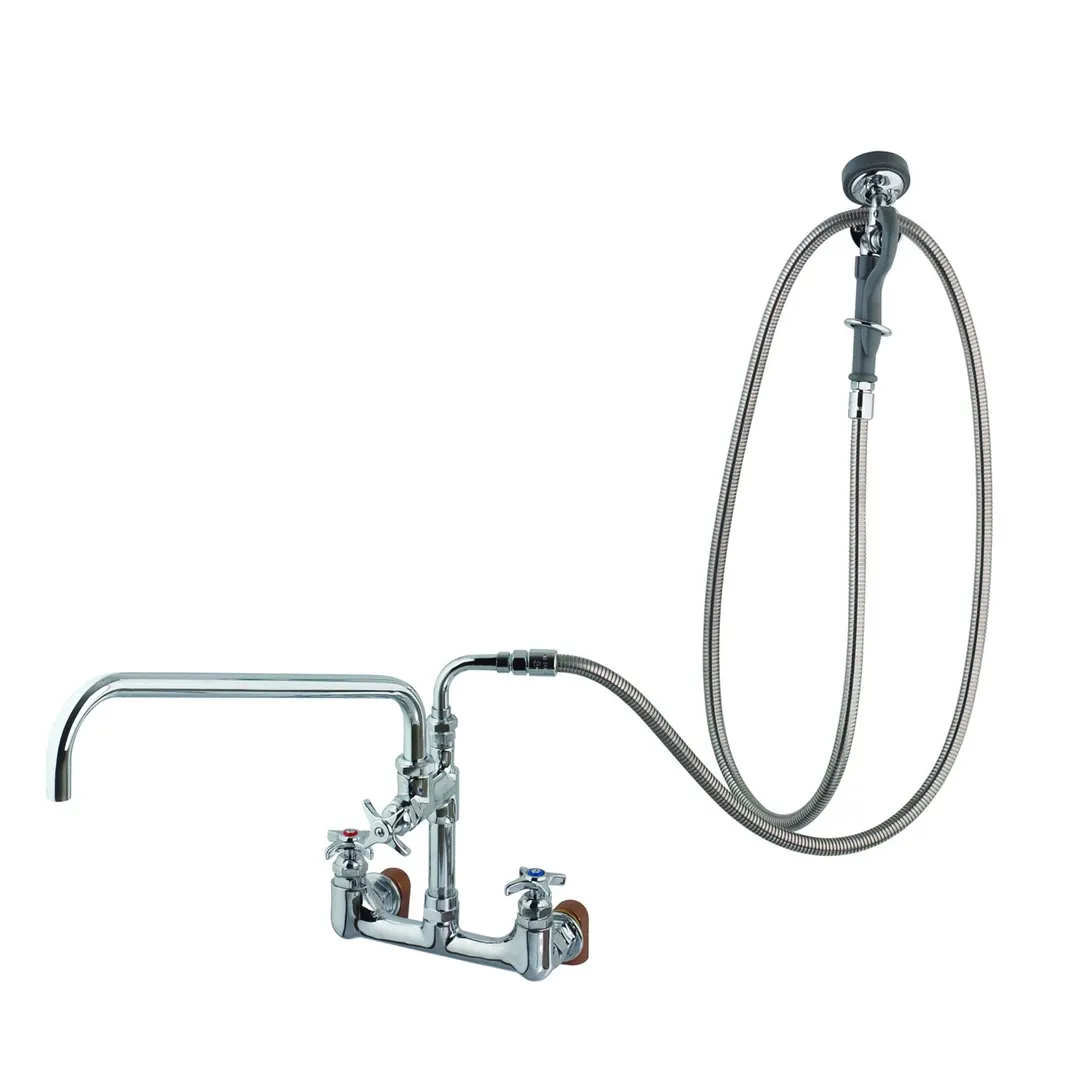

T&S Brass B-0289 Big-Flo Pre-Rinse Unit

General Info

The B-0289, 8" wall mount large flow mixing faucet with polished chrome plated brass body, add-on faucet with compression cartridge and 4-arm handle, 18" plain end swing nozzle, 90 swivel adapter, 104" flexible stainless steel hose with heat resistant handle, 1.15 GPM angled spray valve.

T&S Brass B-0289 Features

• 8” wall mount Big-Flo mixing faucet w/ polished chrome plated brass body
• EasyInstall add-on Big-Flo faucet w/ polished chrome plated brass body
• 18” Big-Flo plain end swing nozzle
• 90 swivel adapter
• 104” flexible stainless steel hose w/ heat resistant gray handle and hold down ring
• 1.15 GPM spray valve
• Big-Flo compression spindles
• 4-arm handles w/ color coded indexes
• 3/4” NPT female eccentric inlets with 2” flanges with 3/4” NPT female inlet elbows
• Adjustable centers from 7 3/4” to 8 1/4”
• Check valves in body to prevent cross flow of water
• Material: Polished chrome plated brass body, add-on faucet body, tubular spout, riser & spray valve body,stainless steel hose, and chrome plated metal handles

T&S Brass B-0289 Specifications

• Pressure Min/Max : 20 - 125 psi
• Temperature Min/Max : 40 F - 140 F
• Flow Rate :
  • Spray Valve: 1.15 GPM [4.35 L/min] @ 60 psi [4.14 bar]
  • Add-On Faucet: 29.55 GPM [111.9 L/min] @ 60 psi [4.14 bar]
• Other Details : See spec. sheet
