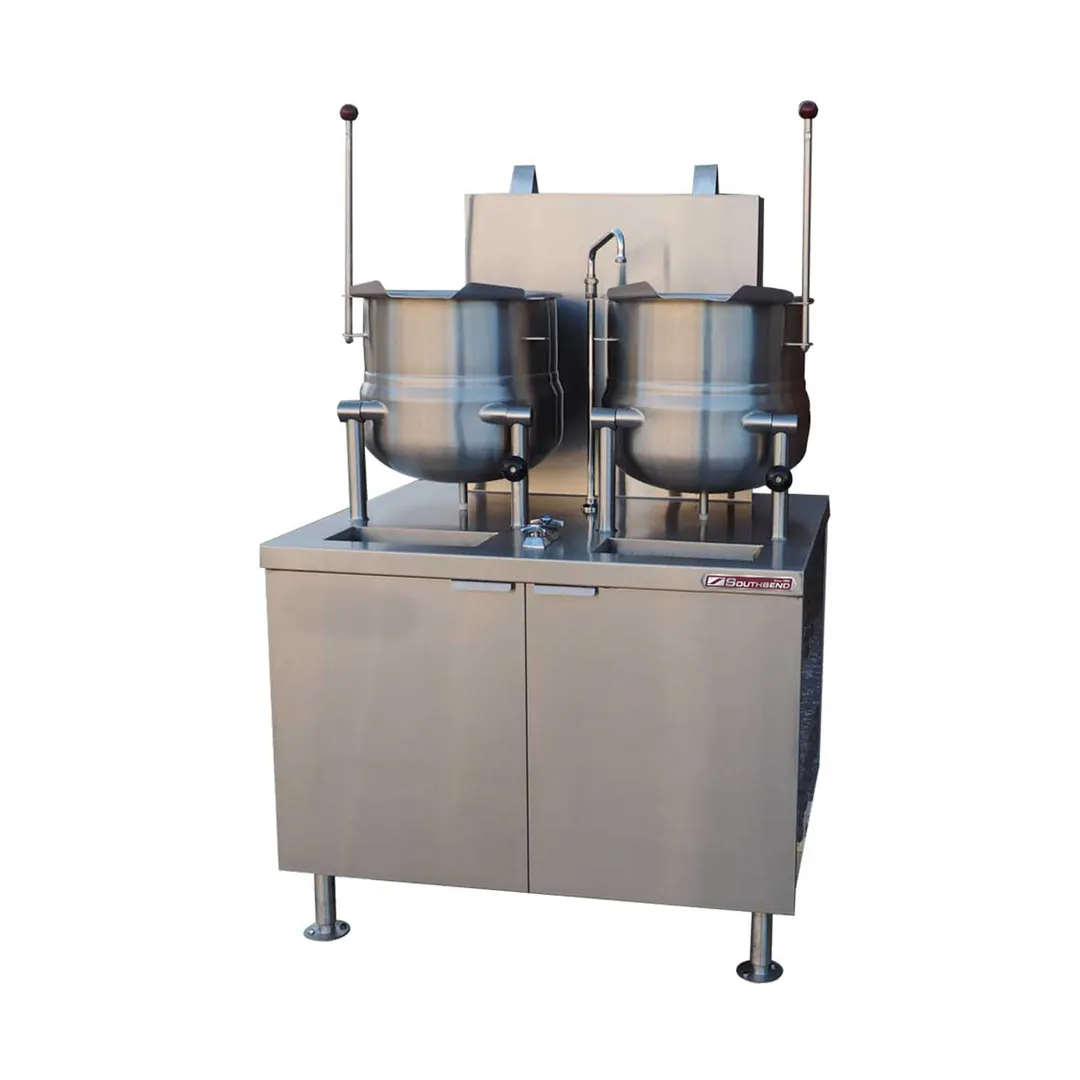

Southbend DMT-10S-10 Direct-Steam Kettle Cabinet Assembly

Standard Construction Specifications

• Shall be a Southbend Steam model DMT-10S-10, consisting of two direct connected steam tilting kettles mounted on a cabinet base of modular design to match other CROWN cooking equipment.
• Each kettle shall be ASME code stamped and National Board registered.
• A double wall kettle interior shall form a steam jacket around the lower 2/3 of the kettle.
• The bottom of the kettle shall be of hemispherical design for superior heat circulation.
• The liner shall be of 316 stainless steel for high acid content products.
• The stainless steel mounting legs shall allow the kettle to be tilted forward past 90° for complete emptying and conceal the steam supply and condensate return connections, the right leg shall be fitted with a steam control valve.
• Each kettle shall be fitted with a tilt handle and heat resistant knob.
• The cabinet shall be constructed with full perimeter painted angle frame, reinforced counter, #4 finish stainless steel exterior with removable side panels and hinged doors with magnetic latches, mounted on 6” (152 mm) stainless steel legs fitted with 4 adjustable flanged feet for securing to the floor, a hot and cold water faucet with control valves, 3” (76 mm) deep sinks with drain and splash guard.
• Concealed plumbing within the cabinet shall include a steam supply manifold with safety relief valve and a condensate return manifold and a steam trap for each kettle.
