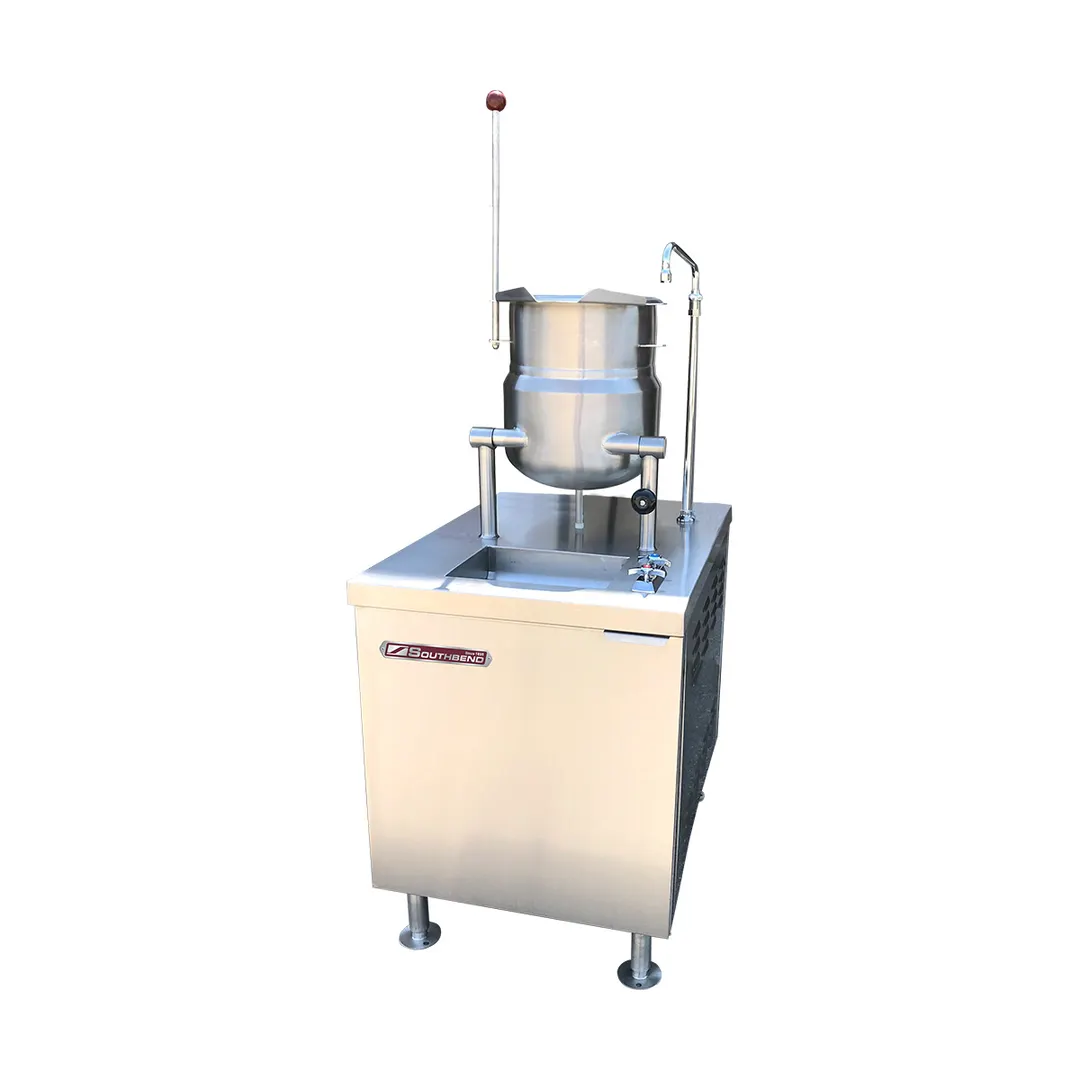

Southbend DMT-6S Direct-Steam Kettle Cabinet Assembly

Standard Construction Specifications

• Shall be a Southbend Steam model DMT-6S or DMT-10S, consisting of one 6 gallon (23 litre) or one 10 gallon (38 litre) direct connected steam, tilting kettle.
• A double wall kettle interior shall form a steam jacket around the lower 2/3 of the kettle.
• The bottom of the kettle shall be of hemispherical design for superior heat circulation.
• The liner shall be of 316 stainless steel for high acid content products.
• The stainless steel mounting legs shall have the steam supply and condensate within the legs and the right leg fitted with a steam control valve for the kettle.
• Kettle shall be fitted with a tilt handle and heat resistant knob, allowing the kettle to be tilted forward 90° for complete emptying.
• The cabinet base shall be of modular design to match other Crown cooking equipment.
• The kettles mounted on a cabinet base with full perimeter angle frame, reinforced counter, hot and cold water faucet with control valves, 3” (76 mm) deep sinks with drain and splash guard, hinged door with magnetic catch, removable side panels and 6” (152 mm) stainless steel legs fitted with 4 adjustable flanged feet for securing to the floor, all #4 stainless steel exterior.
• Concealed plumbing within the cabinet shall include a steam supply manifold with safety relief valve and a condensate return manifold with steam trap.
• NSF listed. National Board Registered. Meets ASME code.
