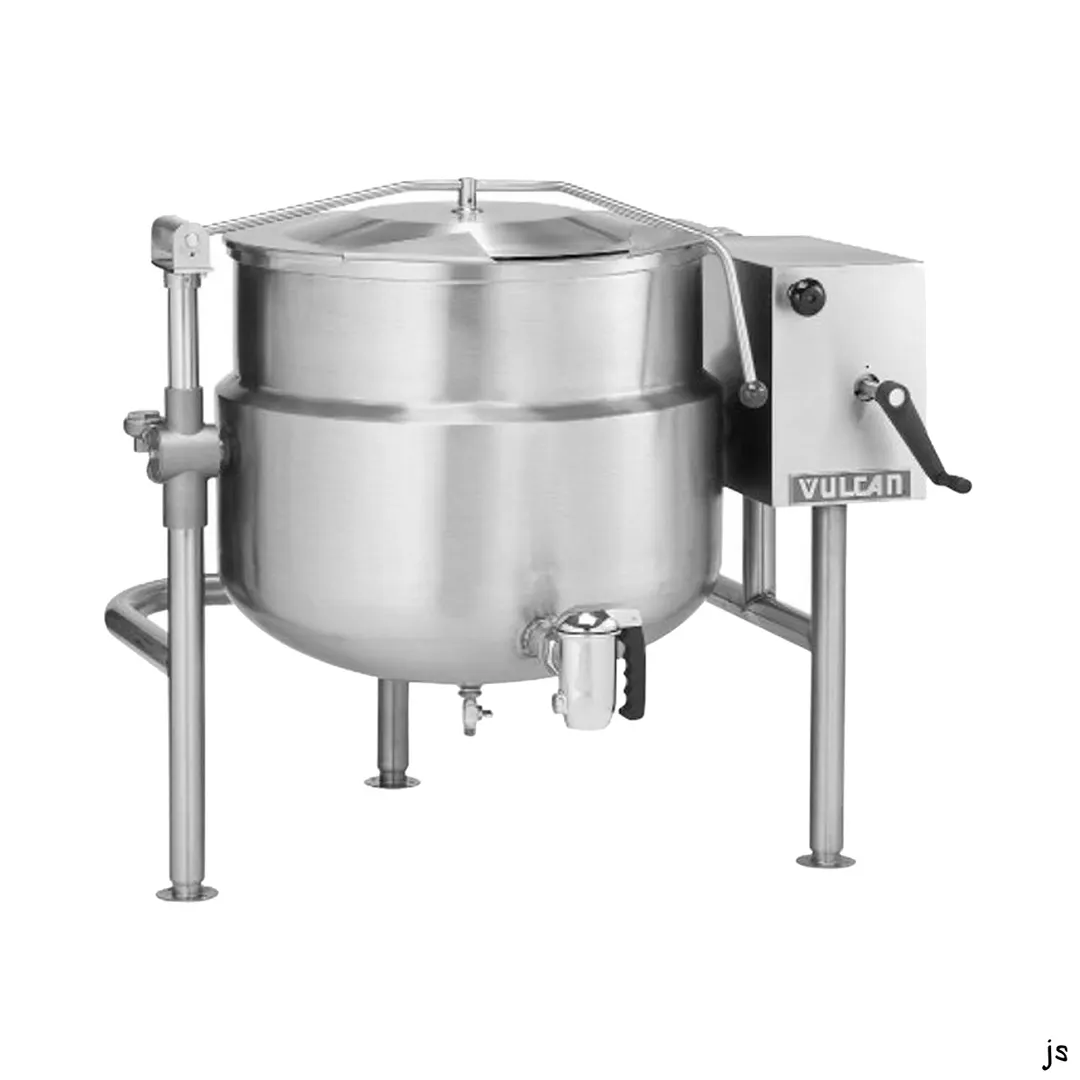

Vulcan K60DLT Tilting Direct Steam Kettle
Vulcan K60DLT Standard Features
- Direct steam, stainless steel, 2⁄3 jacketed floor mounted tilting steam kettle.
- Ellipsoidal bottom kettle liner formed and fully welded standard type 316 and type 304 stainless steel exterior.
- Bar rim (1⁄4 x 5⁄8 inch 20 gallons) (3⁄8 x 1 inch 40 gallons and greater).
- Embossed gallon/liter markings.
- 50 psi (3.4 kg/cm2) steam jacket rating.
- Stainless steel enclosure for steam control valve, selflocking tilt mechanism and faucet bracket.
- Steam control assembly includes condensate return line strainer and safety valve steam trap.
- Kettle tilts forward 90° to completely empty.
- Tubular stainless steel legs with flanged feet.
- One year limited parts and labor warranty.
Vulcan K60DLT Specifications
- TRUE WORKING CAPACITY: 60 gallons/227 liters
- Weight 365 lbs
- Width 45.7"
- Height 38.1"
- Depth 46.5"
- Capacity 50 - 70 gallon
- Tilt manual tilt
- Base tri-leg
- Kettle Liner 316 stainless steel
- Kettle Jacket partial jacket
From The Manufacturer
Tilting Kettle, Direct, 60-gallon true working capacity, 2/3 jacketed, 316 series stainless steel liner with ellipsoidal bottom, manual tilt, faucet bracket on tilting console, stainless steel construction, tri-leg base, steam control assembly, 50 psi, 1.0 BHP
Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.
