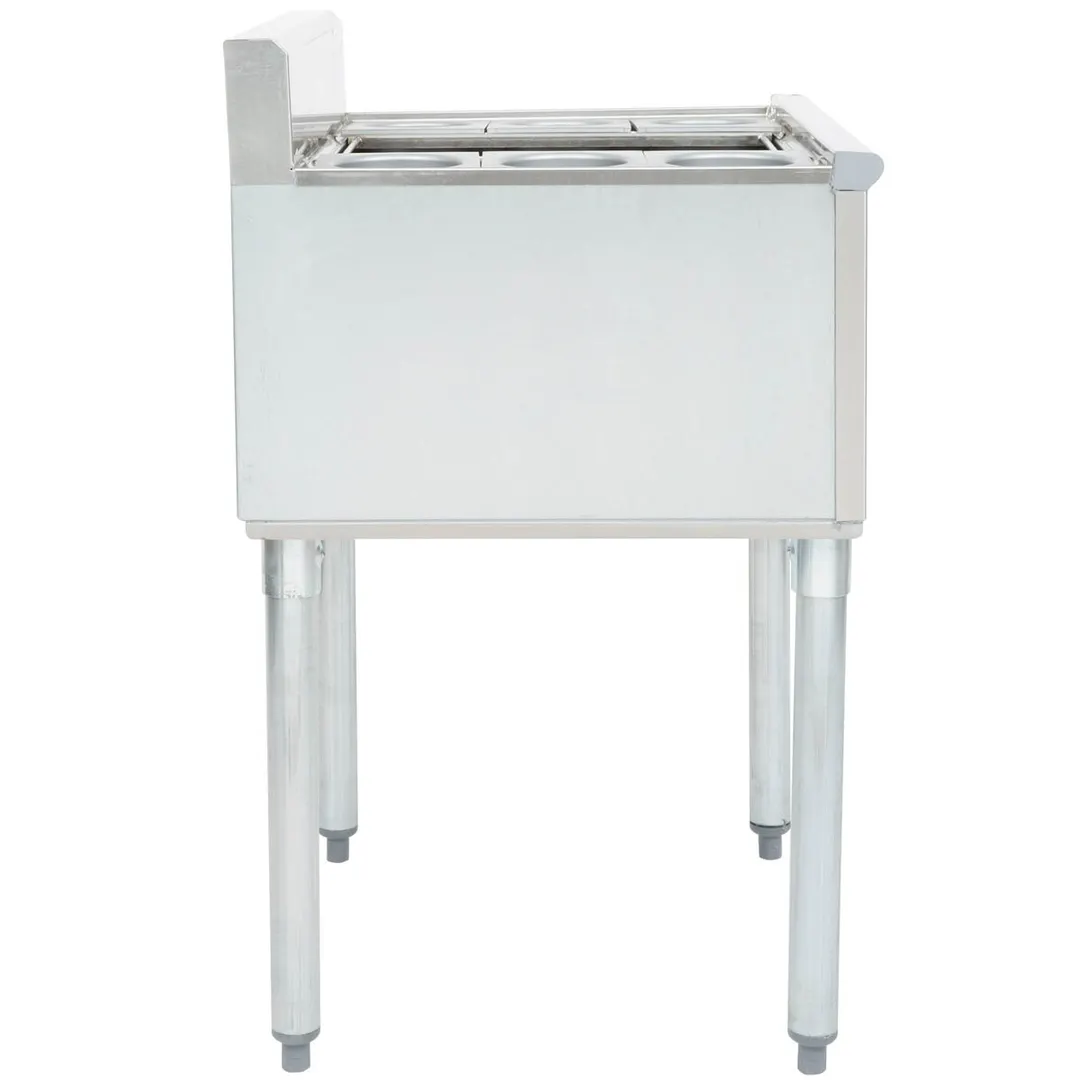

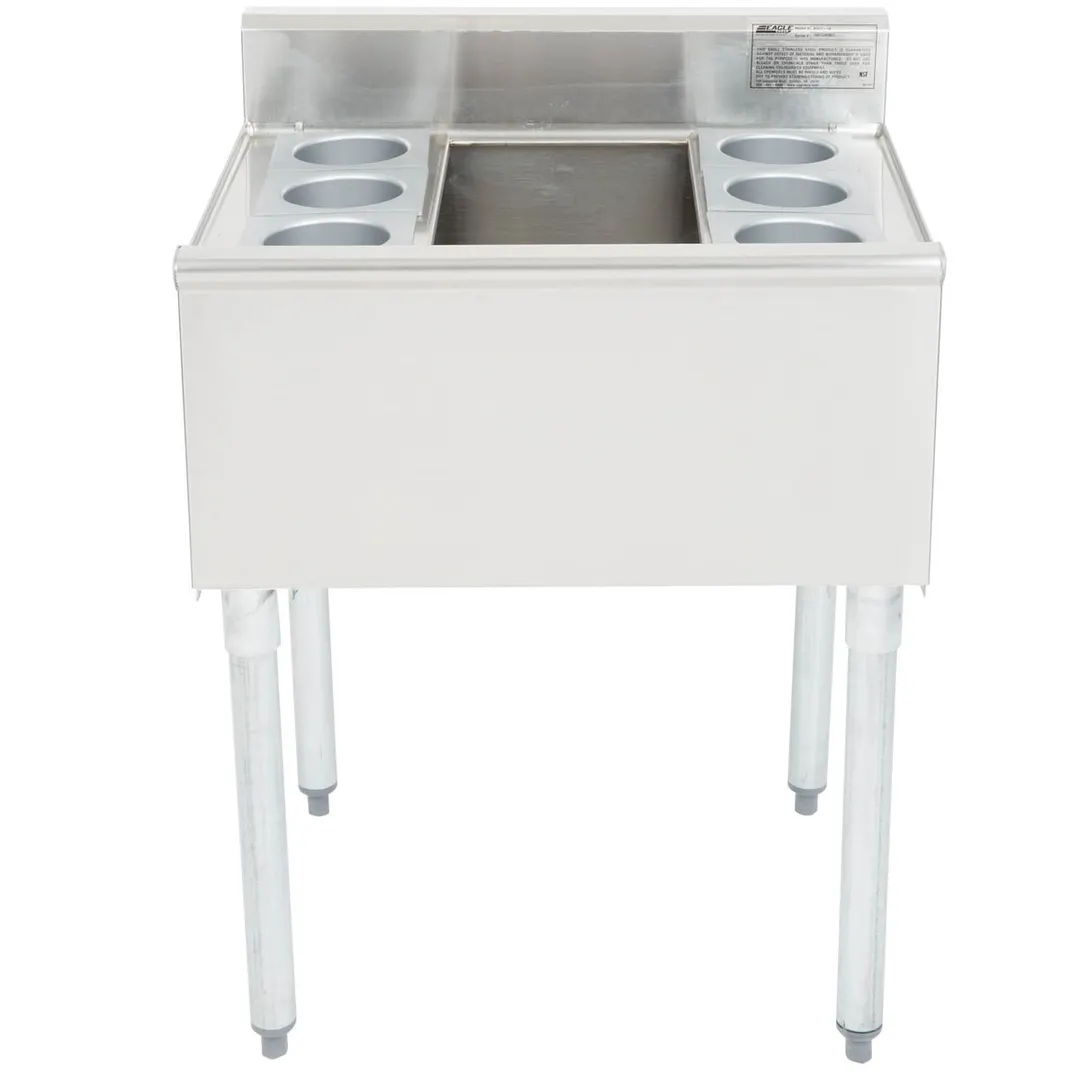

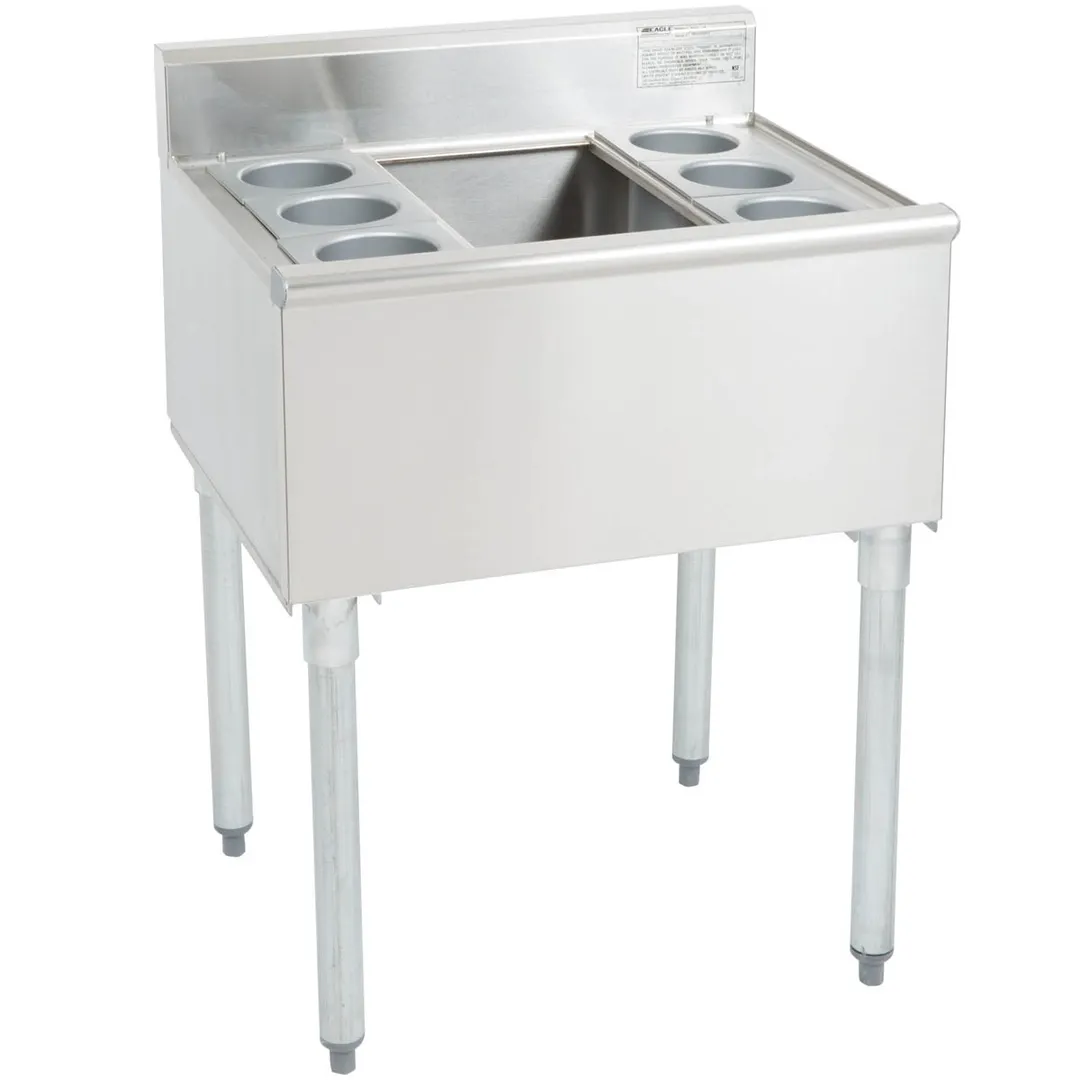

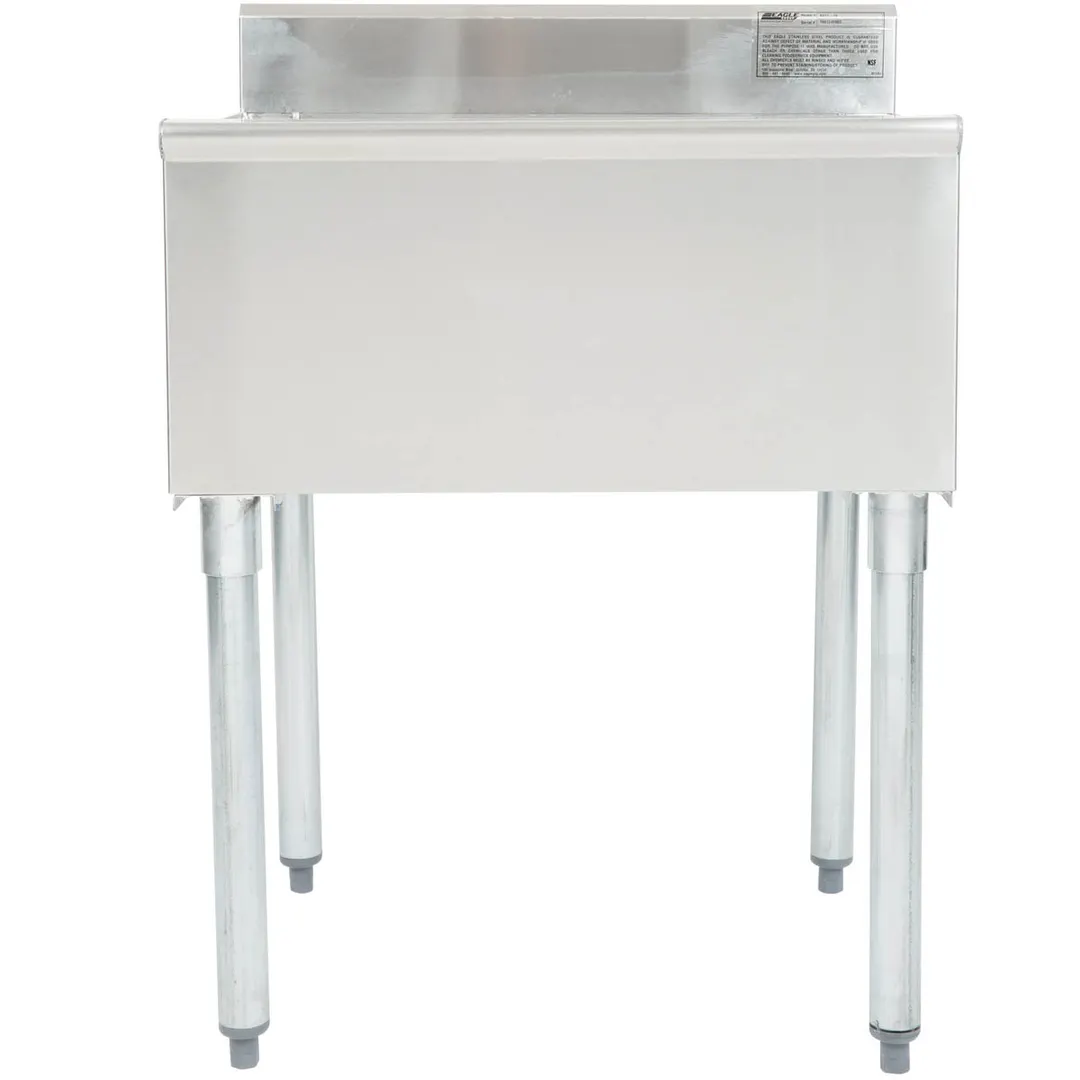

Eagle Group B2CT-18 Underbar Ice Bin/Cocktail Unit Without Post-Mix Cold Plate
General Informations
Top, front, backsplash and ice bin to be heavy gauge type 304 stainless steel. Fabricated ice bin is fully insulated, with 1 1⁄2˝ drain and plastic bottle holders. 1 5⁄8˝ O.D. galvanized tubular legs with adjustable bullet feet.
Eagle Group B2CT-18 Features
- Bullnose front edge
- Units are modular, allowing for custom configurations of underbar equipment using standard components.
- 22 gauge type 304 stainless steel front.
- Fabricated ice bin available with ice capacity of 63 lbs. (8˝-deep bin), 94 lbs. (12˝-deep bin), or 125 lbs. (16˝-deep bin).
- Bottom, back panels, and end panels are galvanized steel construction.
- Six- or eight-bottle capacity.
- 1 1⁄2˝ (38mm) drain.
- Adjustable plastic feet
- Post-Mix Cold plates: aluminum casting with seven stainless steel beverage grade tubing circuits. Cold plates are mounted flush with interior bottom of bowl for easy cleaning and maximum efficiency. Drain is 1⁄2˝ (13mm) NPT. 1⁄4˝ (6mm) O.D. tubing beverage connection provided.
Eagle Group B2CT-18 Specifications
- Width x Length in.(mm) : 20˝ x 24˝ (495mm x 610mm)
- Ice Bin Depth in (mm) : 8˝ (203mm)
- Ice Capacity lbs (kg) : 63 (28,6)
- Shipping Weight (lbs.) (kg) : 52 (23,6)
- Other Details : See Spec. Sheet
From The Manufacturer
1800 Series Underbar Cocktail Unit, modular, 24"W x 20"D x 33-1/2"H, 63 lb. capacity, 22/304 stainless steel top & front, 4-1/2" backsplash, bullnose front edge, galvanized back & sides, 8" deep fully insulated ice bin, (6) bottle wells inside bin, 1-5/8" diameter galvanized tubular legs, adjustable plastic bullet feet, NSF
Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.
