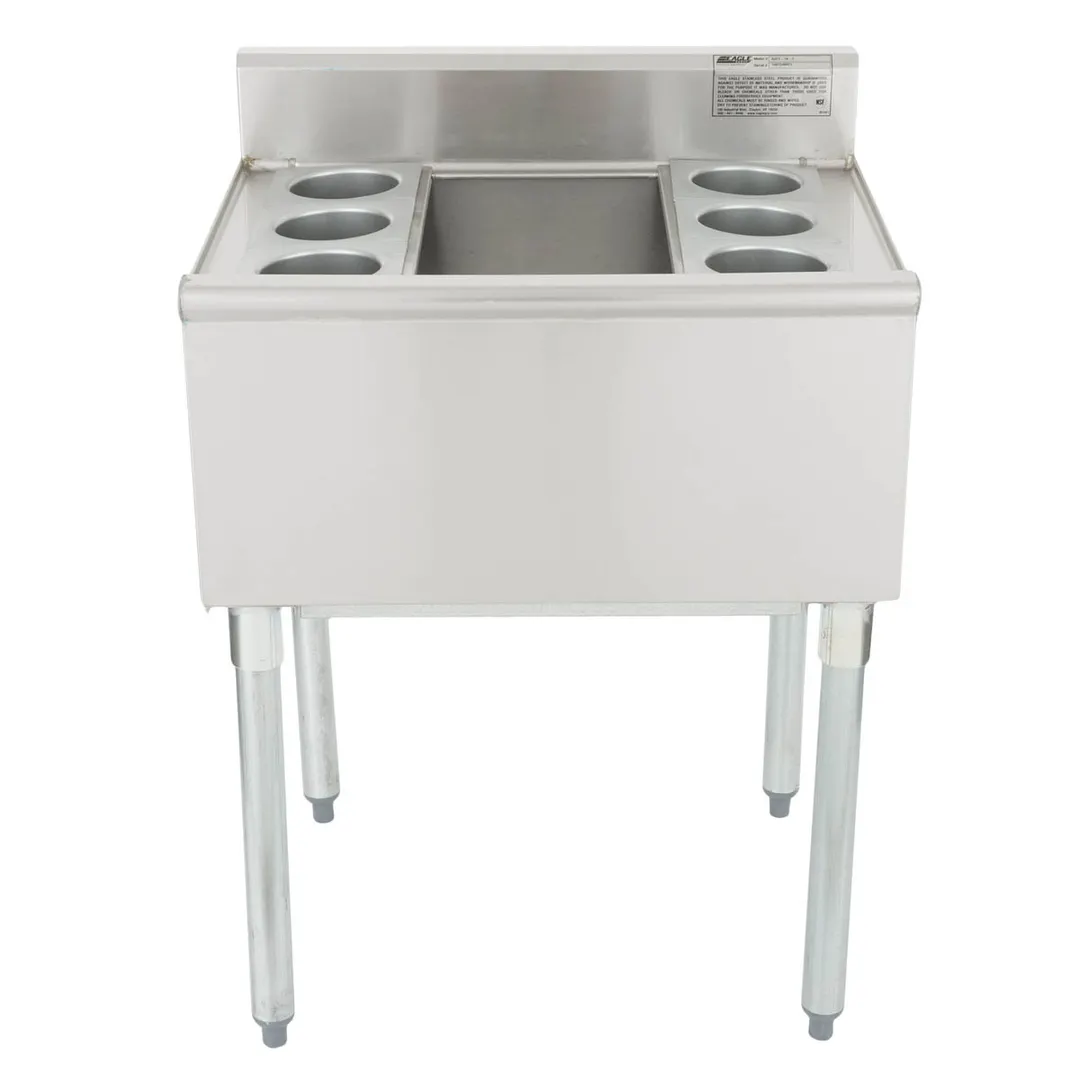

Eagle Group B2CT-18-7 Underbar Ice Bin/Cocktail Unit With Post-Mix Cold Plate
General Informations
Top, front, backsplash and ice bin to be heavy gauge type 304 stainless steel. Fabricated ice bin is fully insulated, with 1 1⁄2˝ drain and plastic bottle holders. 1 5⁄8˝ O.D. galvanized tubular legs with adjustable bullet feet.
Eagle Group B2CT-18-7 Features
- Bullnose front edge
- Units are modular, allowing for custom configurations of underbar equipment using standard components.
- 22 gauge type 304 stainless steel front.
- Fabricated ice bin available with ice capacity of 63 lbs. (8˝-deep bin), 94 lbs. (12˝-deep bin), or 125 lbs. (16˝-deep bin).
- Bottom, back panels, and end panels are galvanized steel construction.
- Six- or eight-bottle capacity.
- 1 1⁄2˝ (38mm) drain.
- Adjustable plastic feet
- Post-Mix Cold plates: aluminum casting with seven stainless steel beverage grade tubing circuits. Cold plates are mounted flush with interior bottom of bowl for easy cleaning and maximum efficiency. Drain is 1⁄2˝ (13mm) NPT. 1⁄4˝ (6mm) O.D. tubing beverage connection provided.
Eagle Group B2CT-18-7 Specifications
- Width x Length in.(mm) : 20˝ x 24˝ (495mm x 610mm)
- Ice Bin Depth in (mm) : 8˝ (203mm)
- Ice Capacity lbs (kg) : 63 (28,6)
- Shipping Weight (lbs.) (kg) : 146 (66,2)
- Other Details : See Spec. Sheet
From The Manufacturer
1800 Series Underbar Cocktail Unit, modular with 7-circuit cold plate, 24"W x 20"D x 33-1/2"H, 63 lb. capacity, 22/304 stainless steel top & front, 4-1/2" backsplash, bullnose front edge, galvanized back & sides, 8" deep fully insulated ice bin, (6) bottle wells inside bin, 1-5/8" diameter galvanized tubular legs, adjustable plastic bullet feet, NSF
