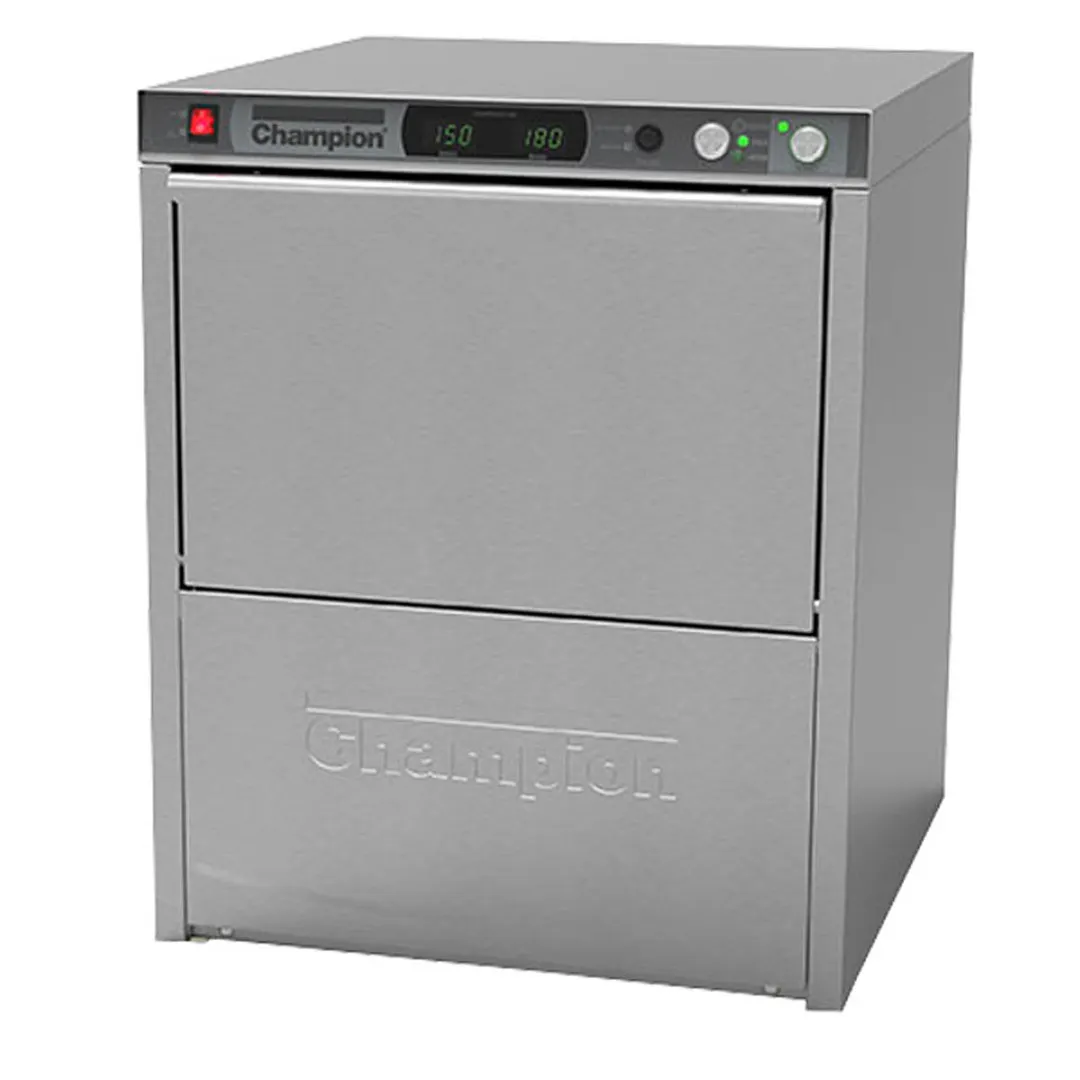

Champion UH330ADA 24" Undercounter Dishwasher,13/18 or 30 Racks/Hr-16 Gal/Hr-High Temp w/Booster

STANDARD FEATURES

• Space saving 29-7/8" height – fits easily under the thickest countertops – allowing for 34" ADA requirements
• 12" internal clearance
• Heat recovery: Cold water feed only!
• Up to 50% more energy efficient!
• Quicker drying of wares!
• Condensation is removed!
• Reduced operating costs!
• “Dry Assist” provides improved and quicker drying of wares.
• “Multi-cycle,” 3 cycle time options for enhanced cleaning
• Insulated panels and booster
• Soft Start protects glasses and dishes from chipping and breaking
• Simple field conversion from single to three phase
• Precise digital temperature display and control
• ENERGY STAR® Qualified
• Rinse Sentry – ensures 180°F/ 82°C final rinse for sanitized wares
• Standard liquid detergent and rinse-aid pumps
• Advanced service diagnostics
• Pumped drain
• Automatic drain cycle
• 1 HP corrosion resistant pump
• Independent stainless steel upper and lower wash and rinse arms

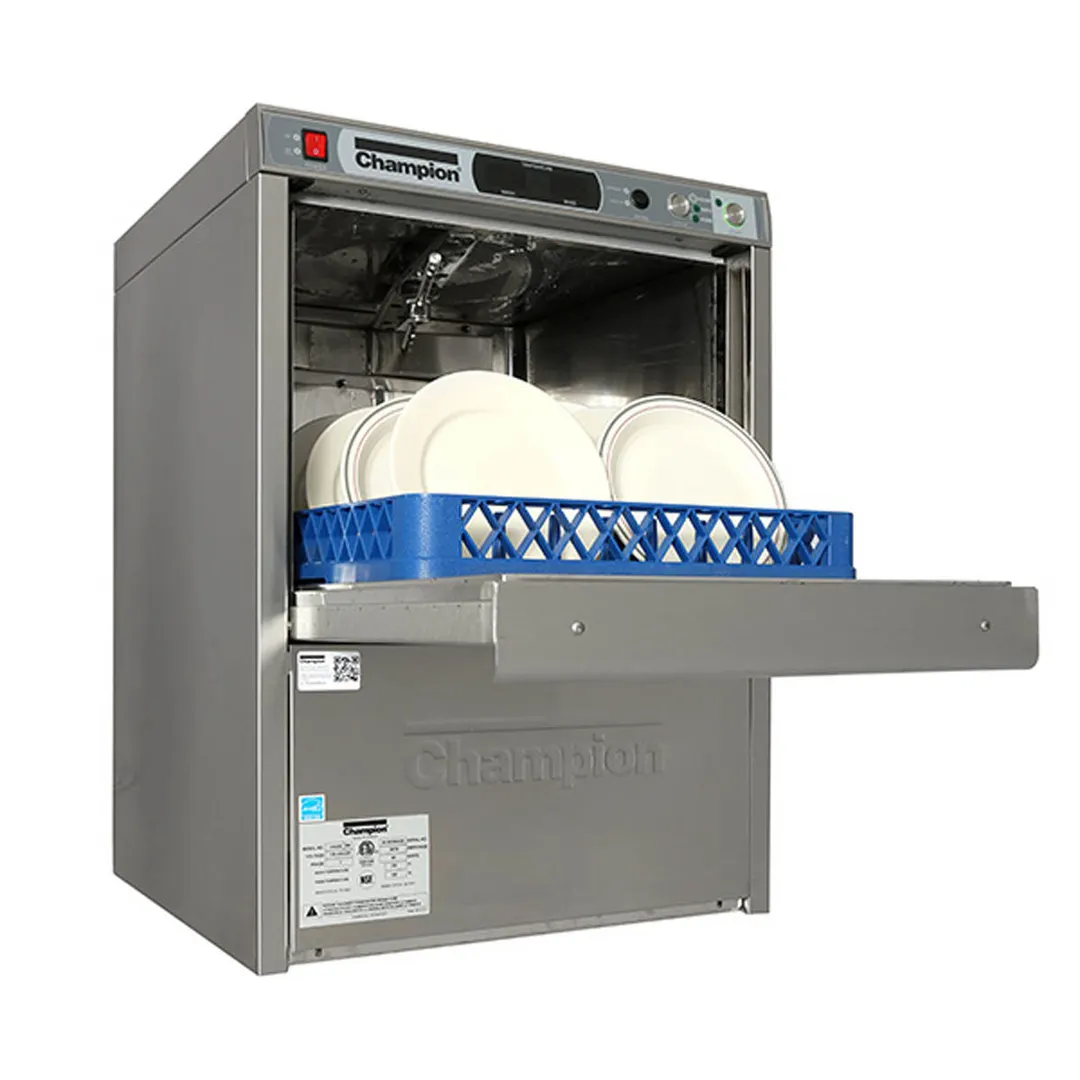

• Includes two racks: 1 peg and 1 flat

SPECIFIER STATEMENT

Specified unit will be only 29-7/8", 12" internal clearance high temperature undercounter dishwasher operating on a 1/2" cold water supply only with heat recovery. Unit shall incorporate a “dry assist” feature to improve and speed-up the drying of wares.

Features selectable 120, 200 and 277 second cycle times, 3 time cycle options, LEDtemp display, Rinse Sentry, rinse aid and detergent pumps, flexible fill and drain hoses, stainless steel top and side panels. Constructed of stainless steel. 1 year parts and labor warranty.

Note: Vent hood is not recommended, as unit does not produce excessive steam

Note: Always follow local building code guidelines
