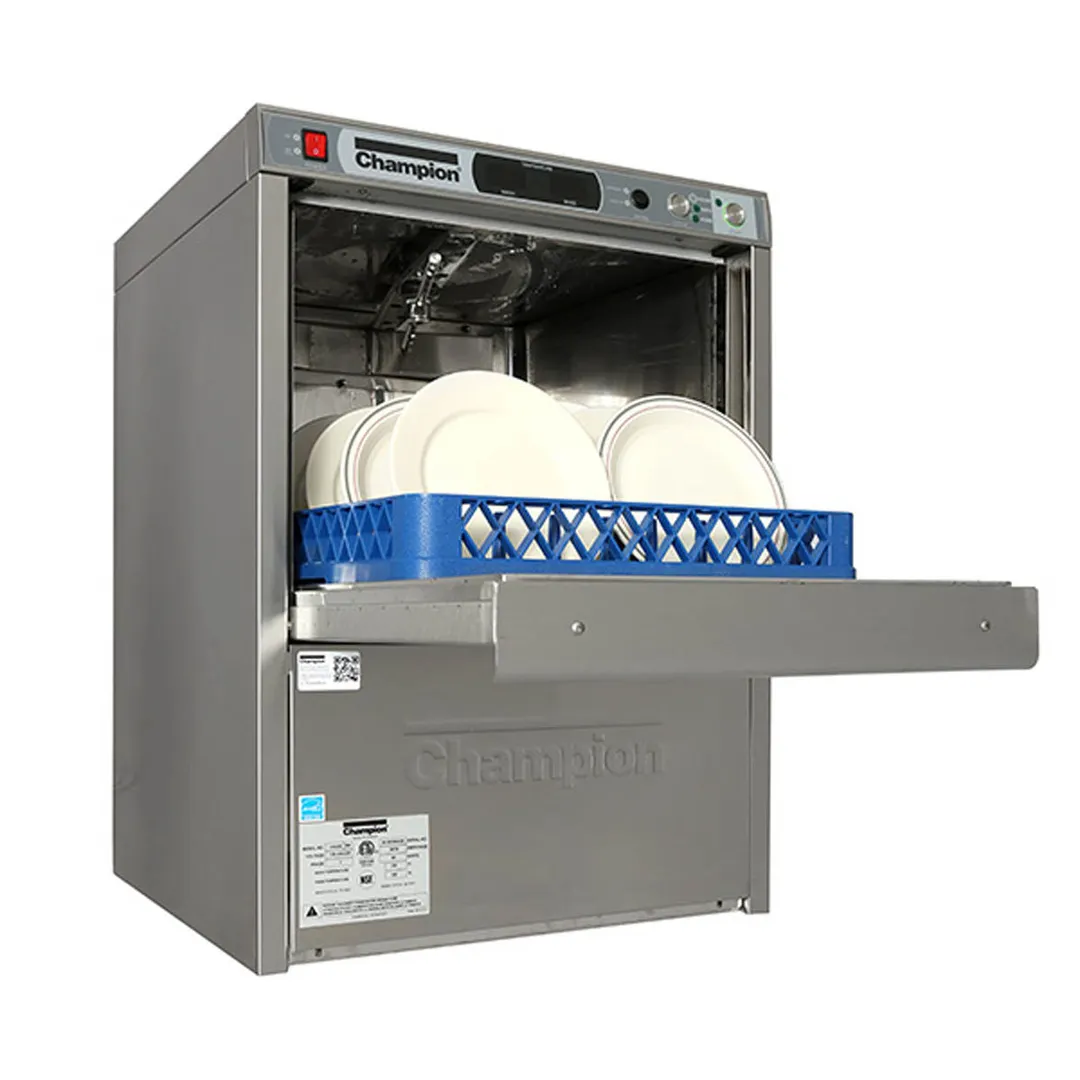

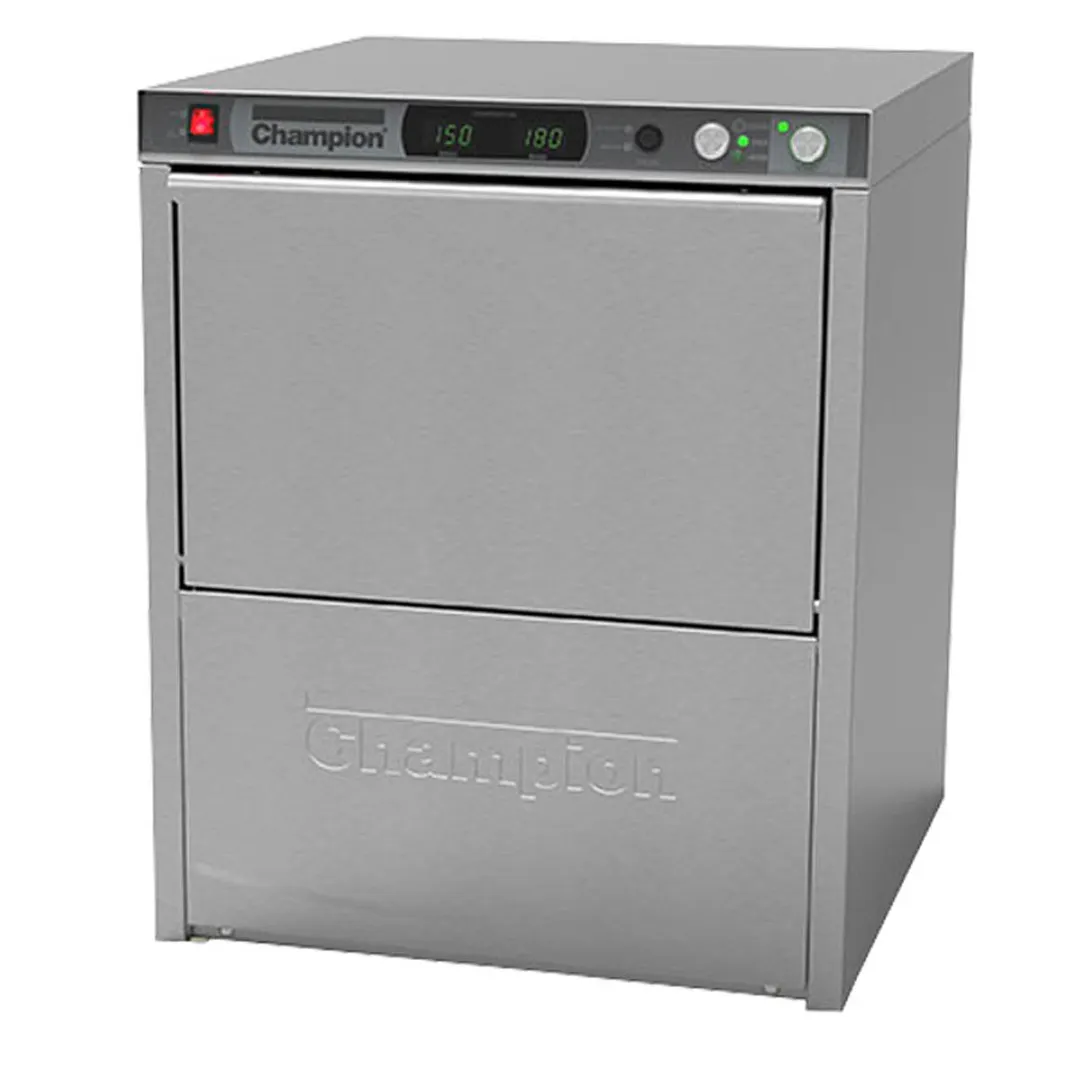

Champion UH330B Heat Recovery Undercounter High Temperature Dishwashing Machine with Built-in Booster Heater
STANDARD FEATURES
- Heat recovery: Cold water feed only!
- Up to 50% more energy efficient!
- Quicker drying of wares!
- Condensation is removed!
- Reduced operating costs!
- “Dry Assist” provides improved and quicker drying of wares.
- “Vari-cycle,” 3 cycle time options for enhanced cleaning
- Insulated panels and booster
- Soft Start protects glasses and dishes from chipping and breaking
- Simple field conversion from single to three phase
- Precise digital temperature display and control
- ENERGY STAR® Qualified
- Rinse Sentry – ensures 180°F/ 82°C final rinse for sanitized wares
- Standard liquid detergent and rinse-aid pumps
- Advanced service diagnostics
- Pumped drain
- Automatic drain cycle
- 1 HP corrosion resistant pump
- Independent stainless steel interchangeable upper and lower wash and rinse arms
- Includes two racks: 1 peg and 1 flat
SPECIFIER STATEMENT
Specified unit will be high temperature undercounter dishwasher operating on a 1/2" cold water supply only with heat recovery. Unit shall incorporate a “dry assist” feature to improve and speed-up the drying of wares.
Features selectable 150, 200 and 277 second cycle times, 3 time cycle options, LEDtemp display, Rinse Sentry, rinse aid and detergent pumps, flexible fill and drain hoses, stainless steel top and side panels. Constructed of stainless steel. 1 year parts and labor warranty
Note: Vent hood is not recommended, as unit does not produce excessive steam.
Note: Always follow local building code guidelines
From The Manufacturer
Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.
