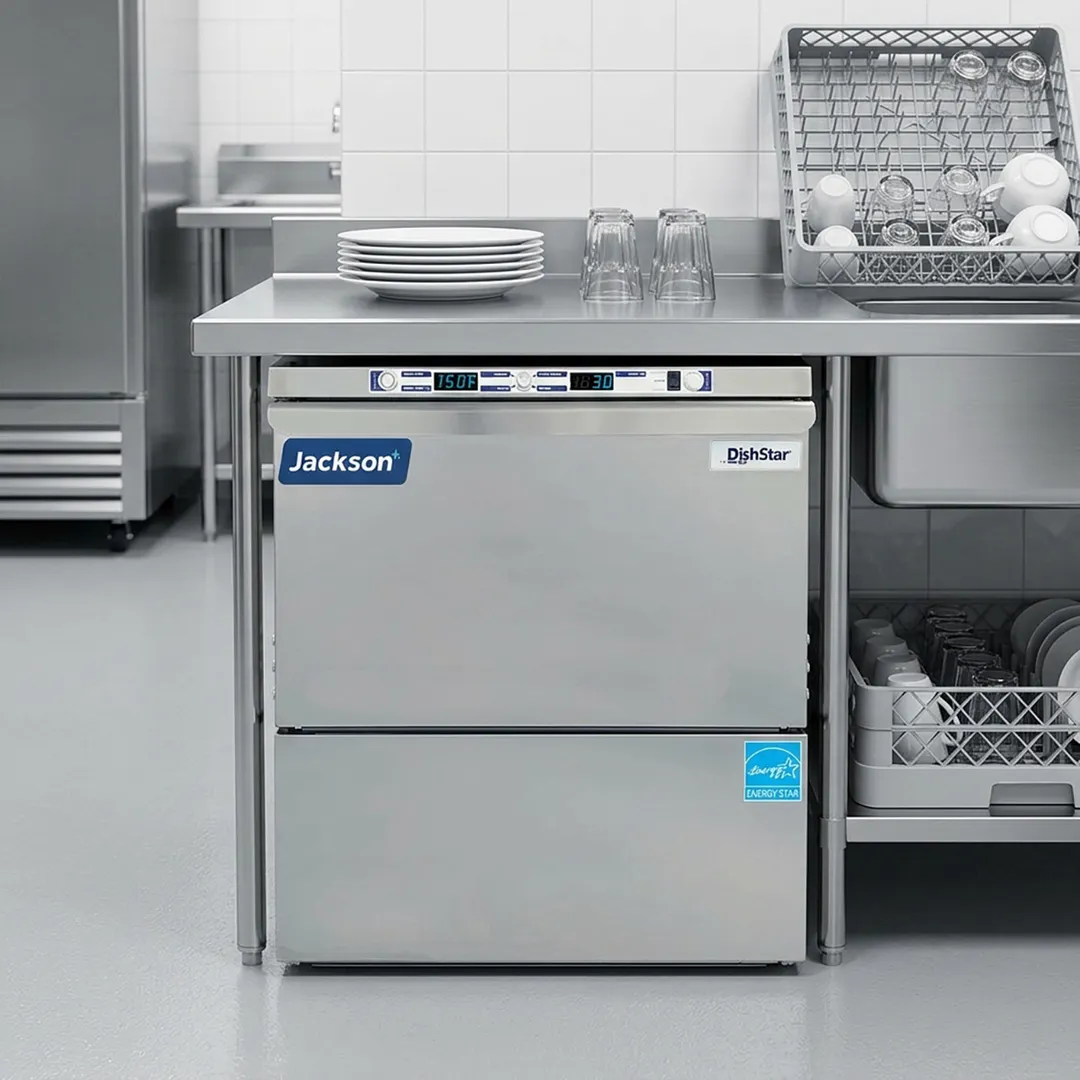

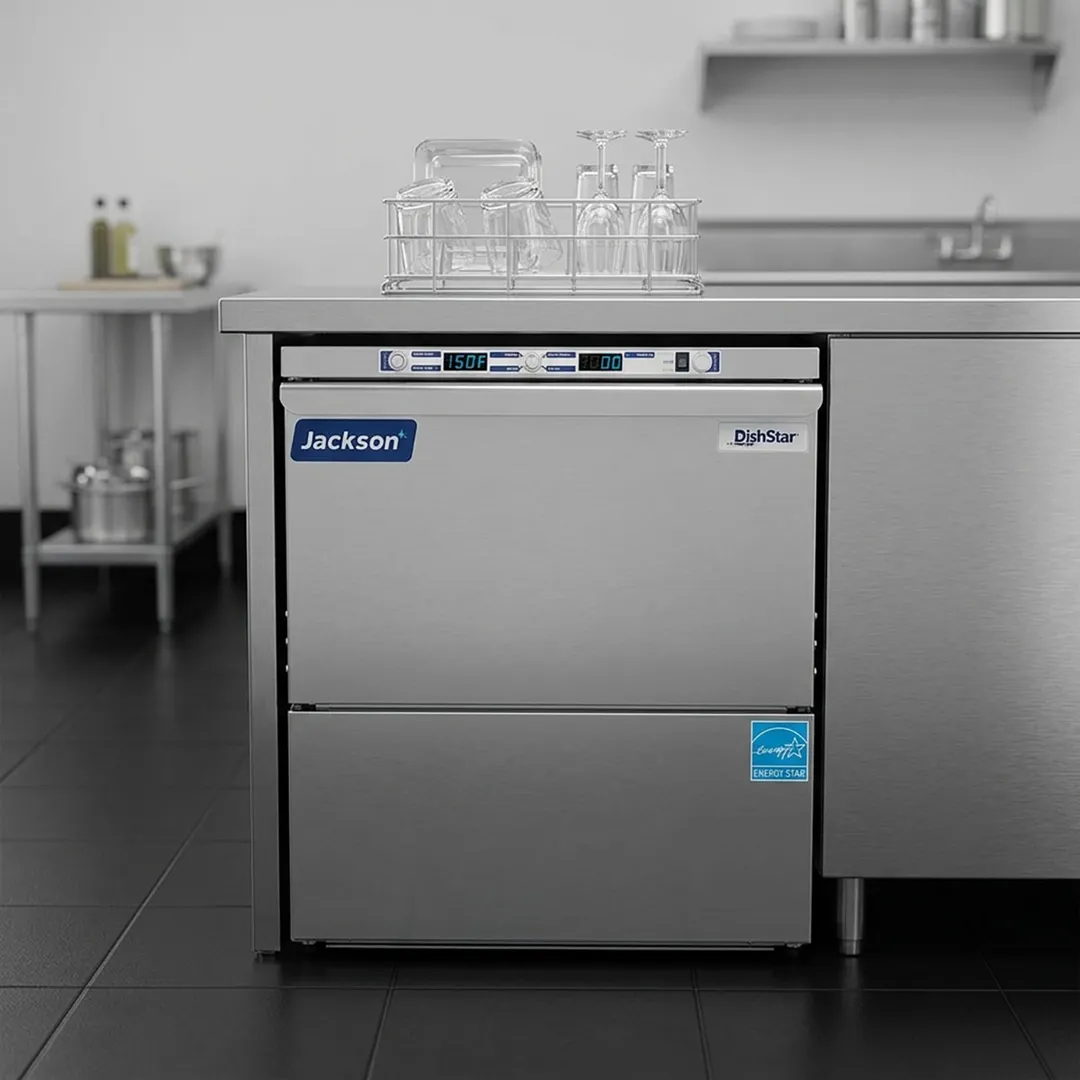

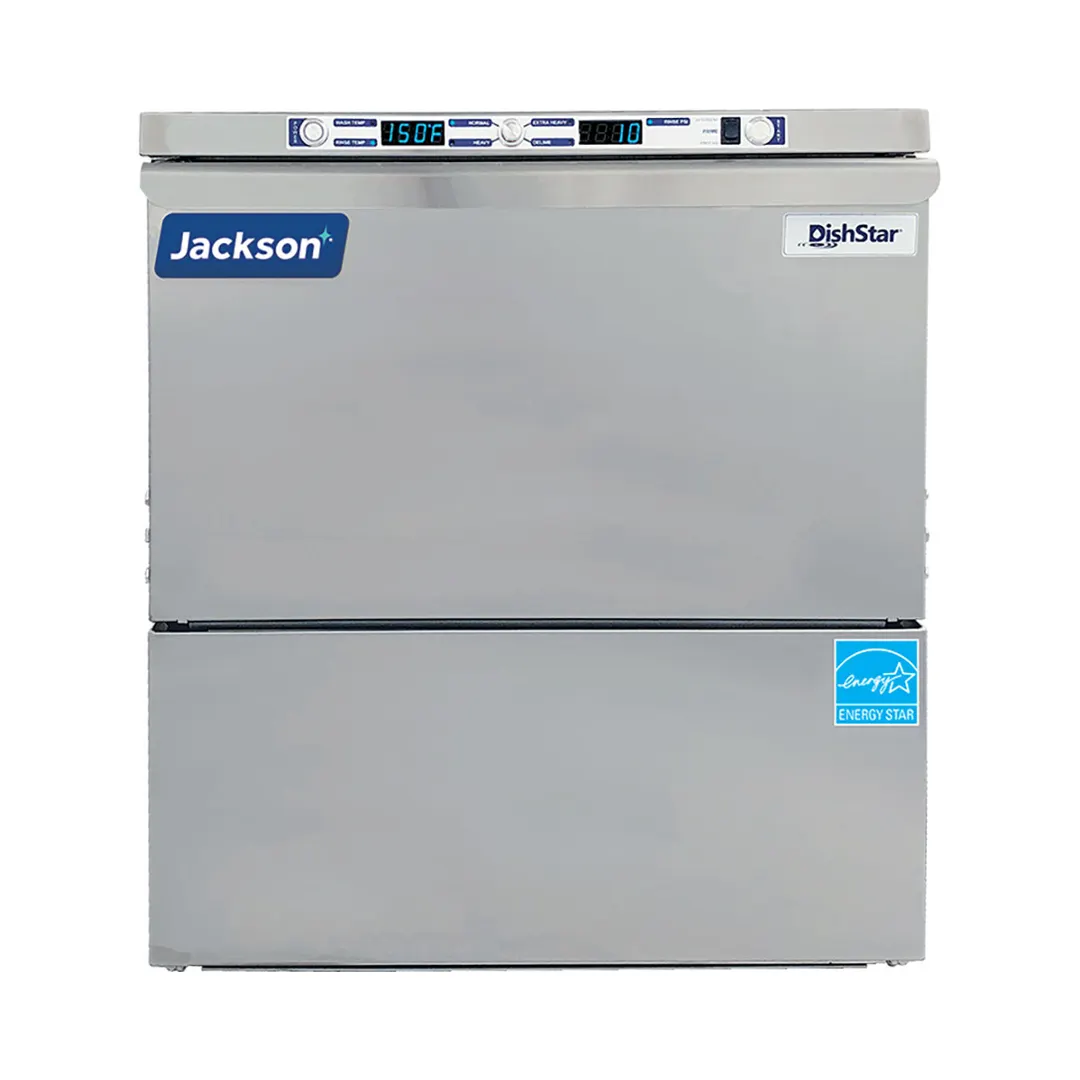

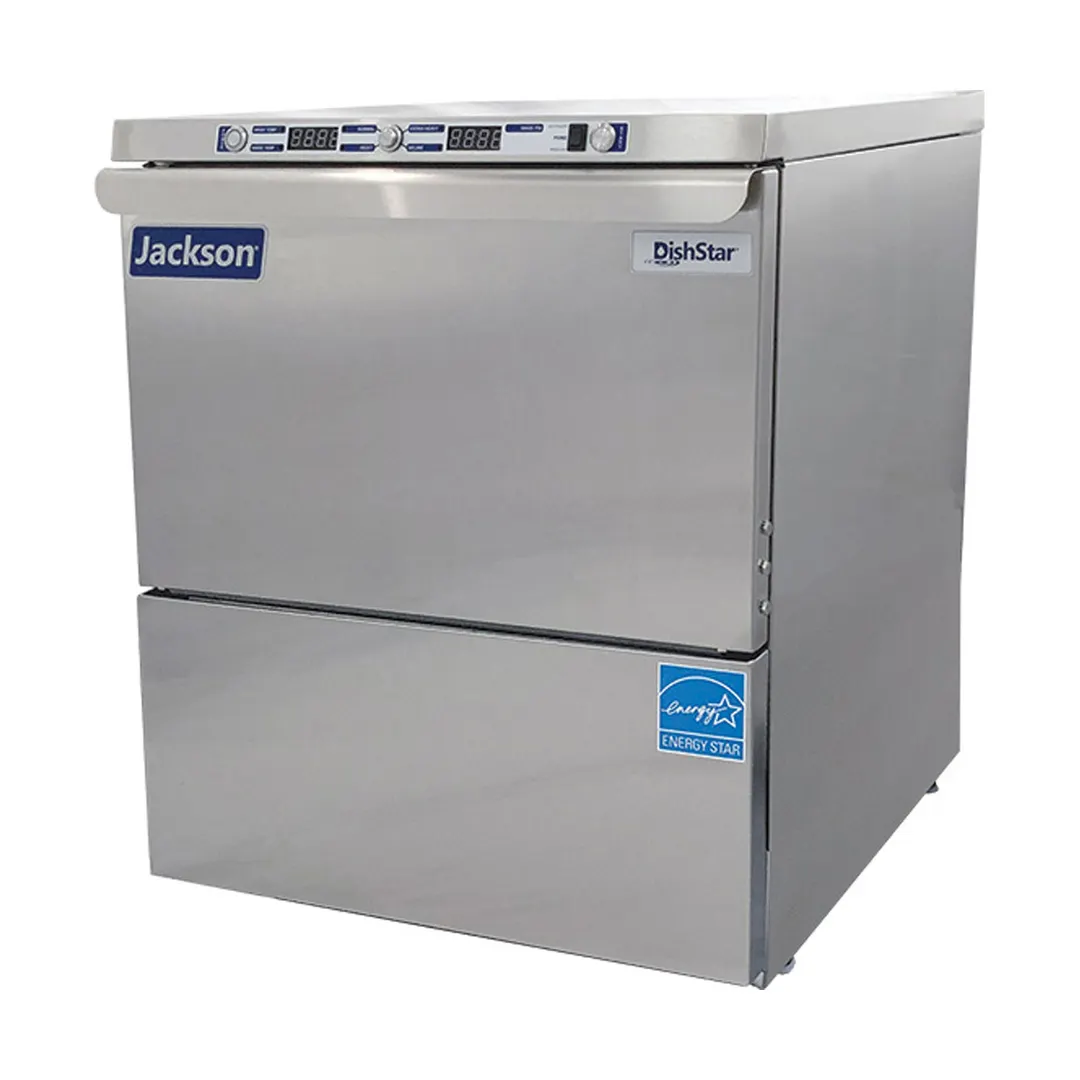

Jackson Warewashing Systems DishStar® ADA-SEER
Specifications
Specified unit will be an ADA-compliant Jackson DishStar ADA-SEER high temperature sanitizing door-type undercounter. Unit will be rated to NSF/ANSI Standard 3 by ETL Sanitation, will be ENERGY STAR® certified, and will operate on a single 3/4” cold water supply. Unit to include SEER, steam elimination and energy recovery. Unit to be rated for 24 racks per hour, 0.60 gallons per rack, and will include a 70 °F rise booster heater with Sani-Sure™ final rinse system, Energy Saver Mode, three (3) selectable timed cycles, and solid-state controls with digital LED temperature/operator display. Other features include Soft Start to protect glassware from chipping and breakage, built-in chemical pumps with automatic prime, automatic tank fill, above-water scrap basket, delime cycle, 3/4 HP stainless steel wash pump motor, pumped drain, pressure regulator, water hammer arrestor, door interlock switch, labyrinth-style door seal, and double-wall cabinet. Constructed of durable stainless steel. 1-year parts and labor warranty.
Features and Benefits
- ADA Compliant
- Fits easily beneath 34” countertops
- Steam Elimination
- Energy Recovery System collects the hot water vapor inside the machine and uses it to preheat the incoming rinse water
- Operates on a single cold water connection
- Soft Start helps protect glassware and dishes from chipping and breaking
- Energy Saver Mode
- Door interlock
- Pressure regulator and water hammer arrestor
- Recirculating wash design with fresh water rinse
- Built-in booster heater with Sani-Sure™ final rinse system ensures proper rinse temperature
- Solid-state controls with three selectable timed cycles for warewashing flexibility and performance
- Digital LED temperature/operator display
- Automatic tank fill with push button start
- Delime cycle
- Automatic pumped drain for floor and wall drain installations
- Built-in chemical pumps with automatic prime
- Stainless steel wash pump
- Above-water scrap basket
- Door switch
- Labyrinth-type door seal design
- Double-wall cabinet for quiet operation and heat retention
- Durable stainless steel construction
- One (1) each peg and combination rack included
From The Manufacturer
Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.
