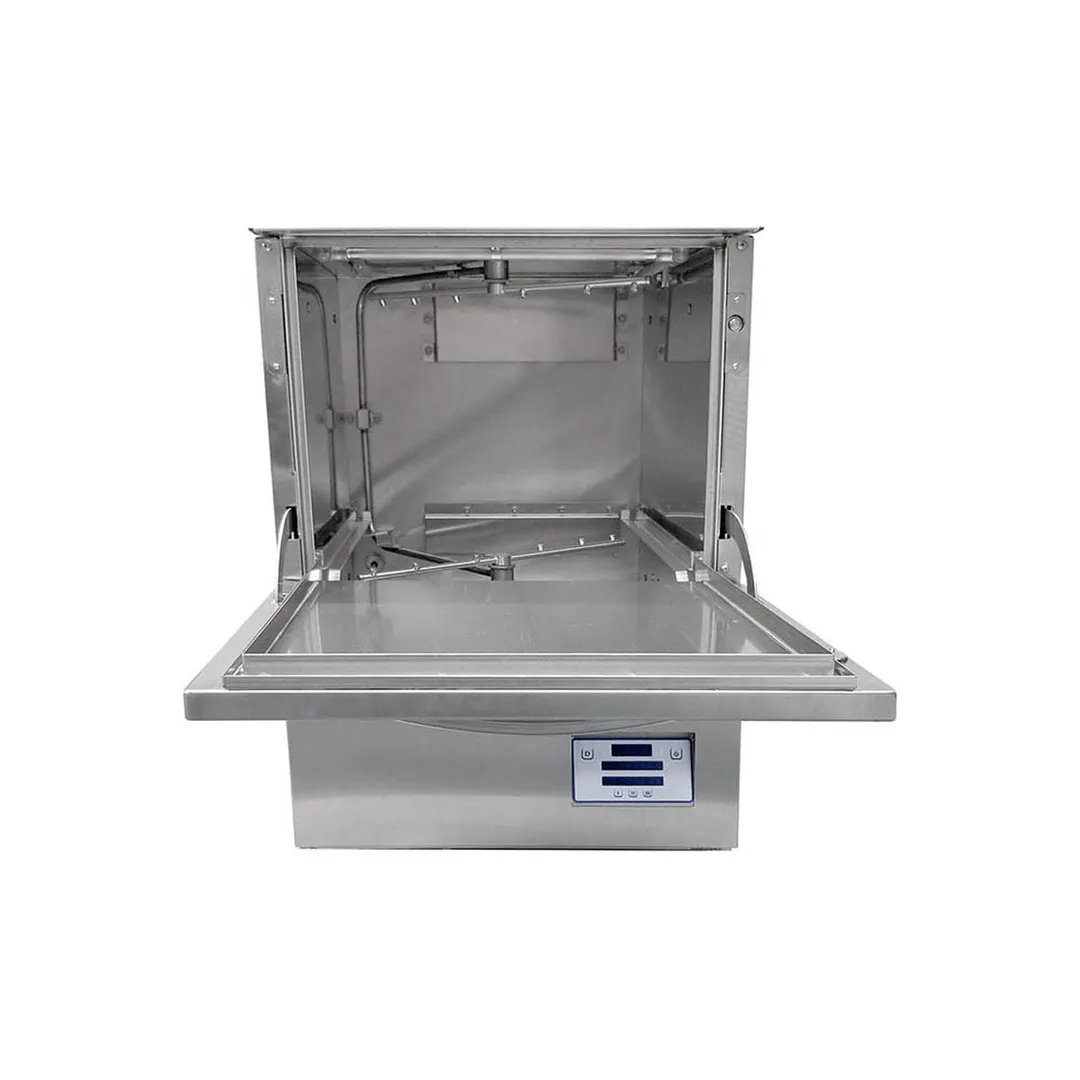

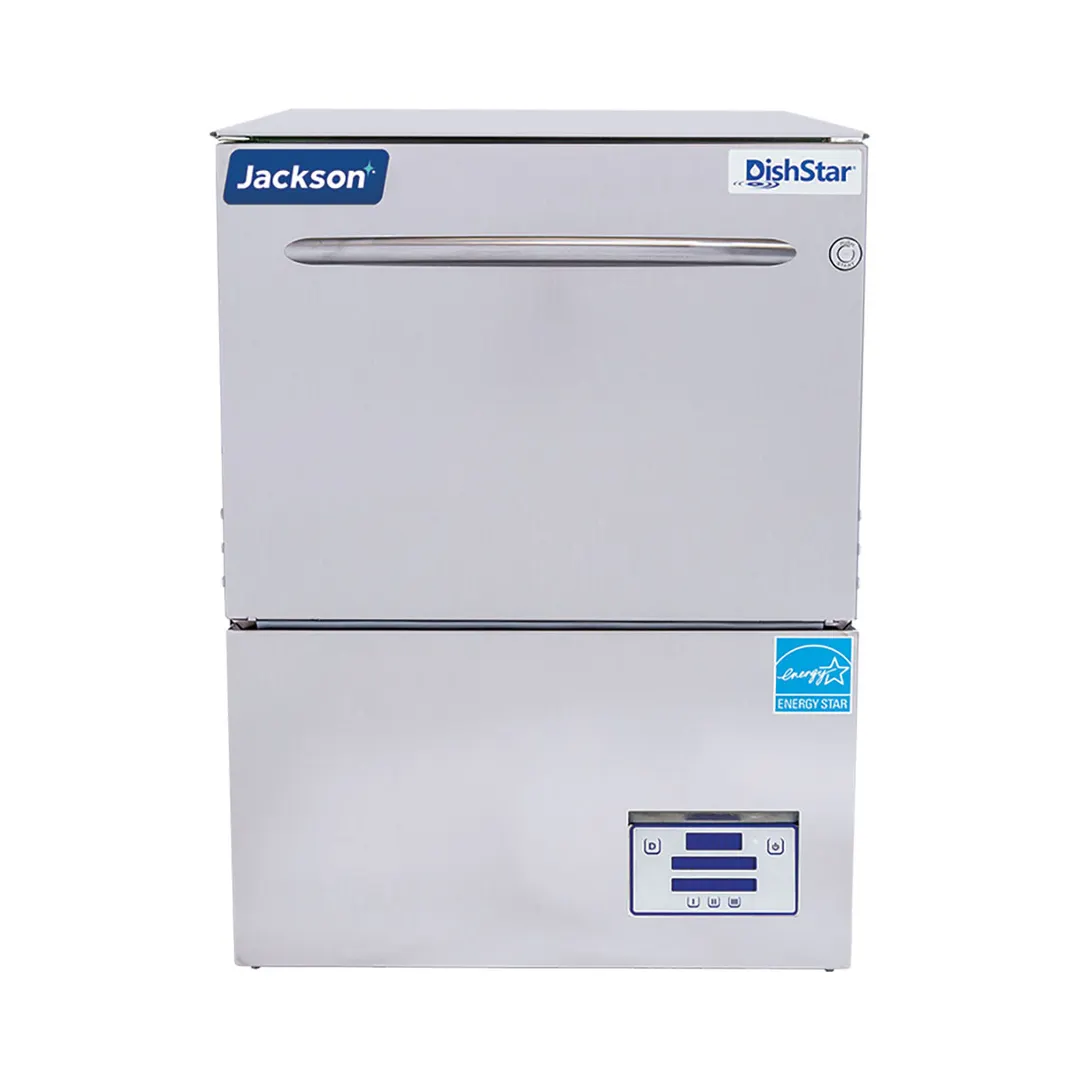

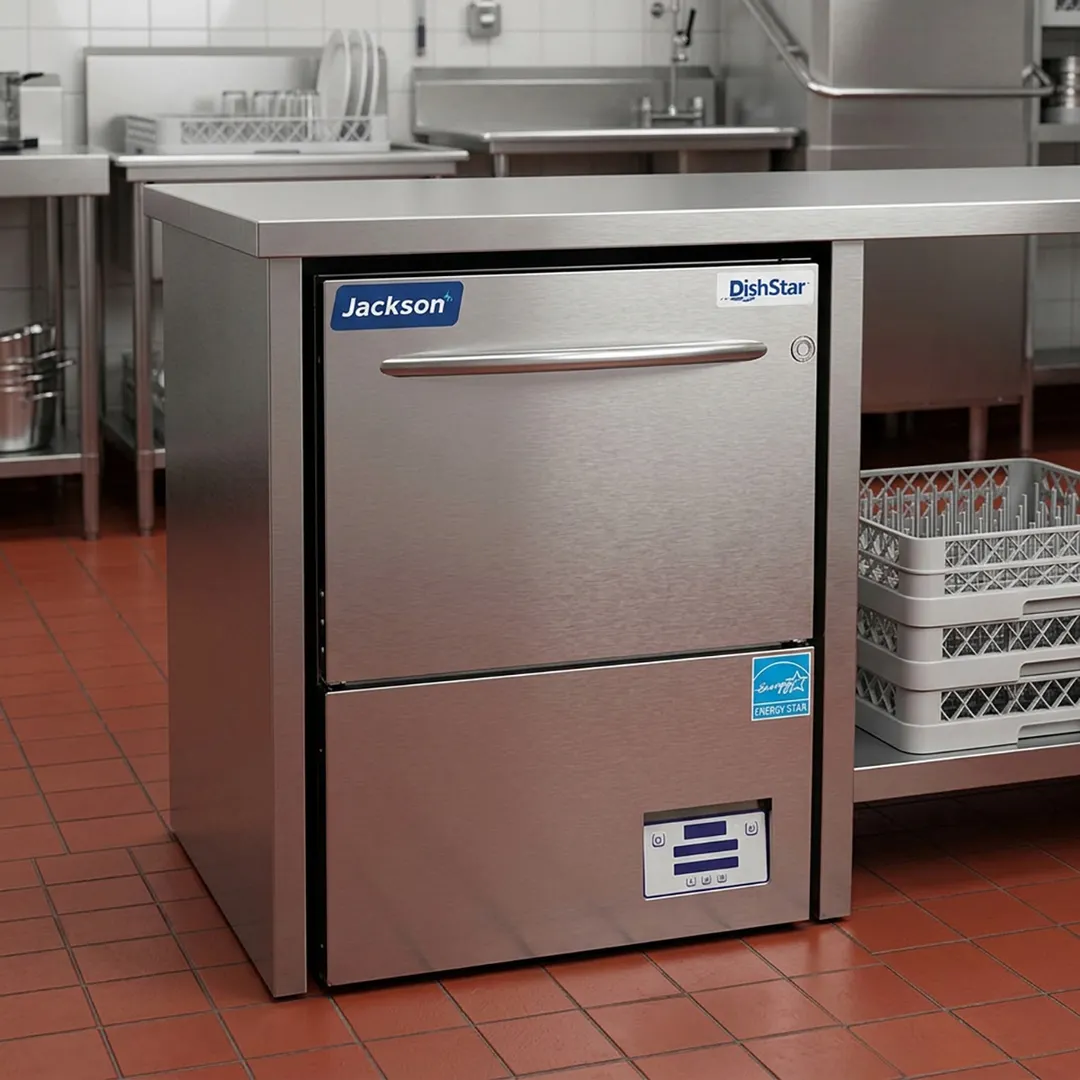

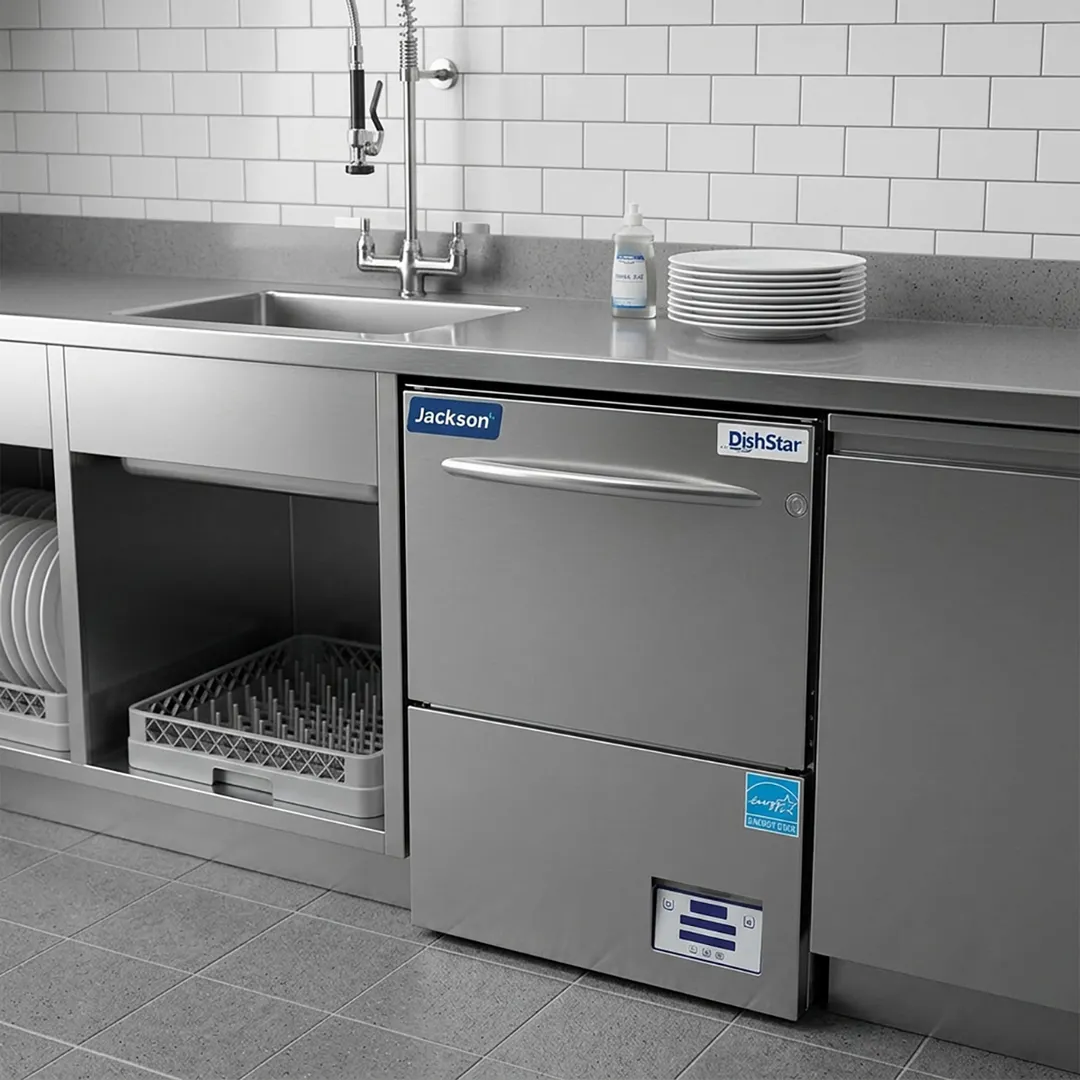

Jackson Warewashing Systems DishStar® HT-E-SEER
Specifications
Specified unit will be a Jackson DishStar HT-E-SEER high temperature sanitizing undercounter dishwasher, rated to NSF/ANSI Standard 3 by ETL Sanitation that operates on only a 3/4” cold water supply. Unit will be ENERGY STAR® certified and will include SEER, steam elimination and energy recovery. Unit to be rated for 24 racks per hour, 0.60 gallons per rack, and will include a 70 °F rise booster heater with Sani-Sure™ final rinse system, Energy Saver Mode, three (3) selectable timed cycles, and solidstate controls with digital LED temperature/operator display. Other features include detergent and rinse aid pumps and priming switches, automatic tank fill, abovewater scrap basket, delime cycle, 1 HP stainless steel wash pump motor, pumped drain, pressure regulator, water hammer arrestor, door interlock switch, labyrinthstyle door seal, and double-wall cabinet. Constructed of durable stainless steel. 1-year parts and labor warranty
Features & Benefits
- Steam Elimination
- Energy Recovery System collects the hot water vapor inside the machine and uses it to preheat the incoming rinse water
- Operates on a single cold water connection
- Energy Saver Mode
- Door interlock
- Pressure regulator and water hammer arrestor
- Recirculating wash design with fresh water rinse
- Built-in booster heater with Sani-Sure™ final rinse system ensures proper rinse temperature
- Solid-state controls with three selectable timed cycles for warewashing flexibility and performance
- Digital LED temperature/operator display
- Onboard service diagnostics
- Automatic tank fill with push button start
- Delime cycle
- Automatic pumped drain for floor and wall drain installations
- Built-in chemical pumps and priming switches
- Stainless steel wash pump
- Above-water scrap basket
- Door switch
- Labyrinth-type door design
- Double-wall cabinet for quiet operation and heat retention
- Durable stainless steel construction
- One (1) each peg and combination rack included
From The Manufacturer
Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.
