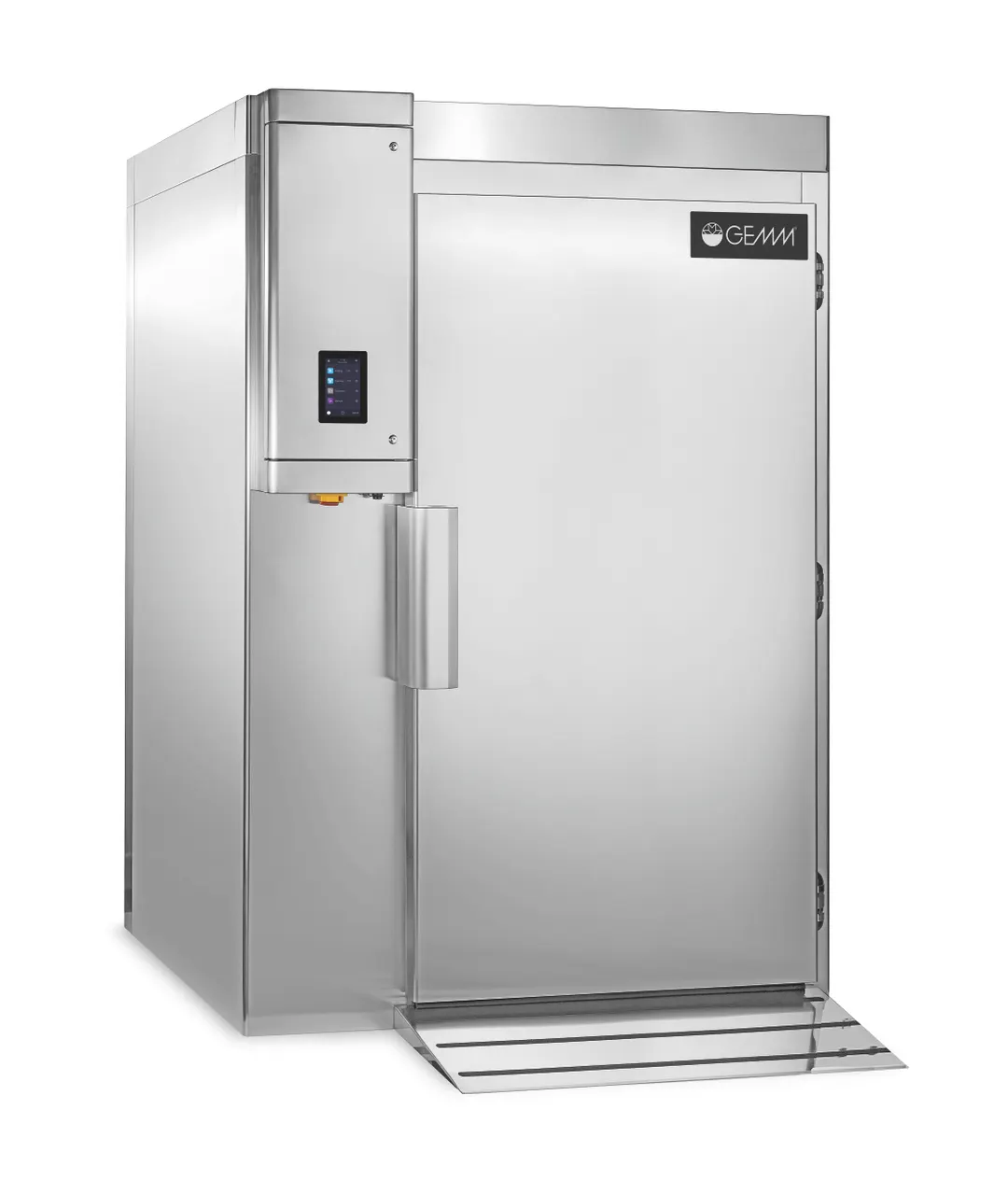

Eurodib Bcc6015gc Roll-in Blast Chiller/freezer Overview
GENERAL FEATURES
- Working cycle: by time or probe
- Core probe ("L" handle) included for core temperature control
- Automatic core probe detection: switch to probe mode
- Internal LED light
- Immediate fan interruption upon door opening
- Heated frame and threshold, three-chamber magnetic seal, compensation valve
- Internal stainless steel AlS 304 finish and rounded corners with R=15 mm
- Insulating panels (100 mm thick): injected with CFC and HCFC-free polyurethane foam of 42 Kg/m between two AISI 304 stainless steel sheets, with thermal transmittance of U=0.23 W/m2K
- Insulated (90 mm) and reinforced floor in 15/10 mm AISI 304 stainless steel
- Suitable for recessed floor installation
- Standard ramp included (21.7")
INTERNAL FEATURES
- No. 1 vertical evaporator
- high thermal exchange coefficient
- Multi-circuit
- Anticorrosion cataphoresis treatment
- Air conveyors facilitate high performance without dehydrating products
- Evaporators equipped with no. 3 fans.Air speed: 0.7-7 m/s, variable through the control board. Air range for each evaporator: 10,500 ms/h
- Automatic defrost outside working cycles only
- Accessible evaporator wall to facilitate cleaning and maintenance
- Stainless steel bumper
REMOTE CONDENSER
- Remote condensing unit (6.0 HP) withBITZER compressor
- Constant monitoring with condensing unit control panel
- Alarms for low/high pressure, compressor oil overheating, and compressor thermal overload are displayed simultaneously on the blast chiller and condensing units' control boards
- Supplied with 10 m pipe kit for condensing unit installation (32.8 ft.)
CONTROL PANEL
- Hard/soft chilling and blast freezing
- Customize the parameters of each cycle: time, ventilation speed, temperature, etc.
- Create your own recipe book: save up to 100 different chilling/freezing cycles
- Special preset cycles: pre-cooling, ice cream hardening, room drying, fish sanitation
- Manual and automatic defrost
- Customized blast chilling cycle: create 4 distinct phases according to time, room temperature, product temperature and ventilation
- Automatic storage function and option to save the recipe at the end of each new cycle
- Preset recipes included
- Continuous diagnostic and alarm display
From The Manufacturer
Gemm® Blast Chiller/Freezer for Trolleys, roll-in, remote condensing unit (included - supplied without gas) installation 10 M max., accommodates 31.5" x 39.4" trolley, 331 lb. capacity (chilling) or 286.5 lb. capacity (freezing), 197°F to 37°F chilling, 197° to 0°F freezing, touch control panel, displays in (8) languages, functions by time or by probe, programmable, preset recipes, save up to (100) recipes, solid hinged door, insulated, internal LED light, stainless steel construction, 21.7" ramp included, 6 HP, 230v/60/3-ph, hardwire, cULus, Made in Italy
