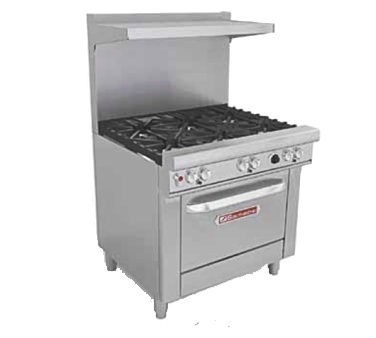

The Southbend H4361D-1G 36" Series Ultimate Range
Why Use Southbend Restaurant Range?
The Ultimate Range Series is available in 5 sizes and over 2,000 configurations. The Ultimate Range is manufactured with an unprecedented fully stainless steel burner box. Higher BTUs on the range top combined with a High-Efficiency Snap Action Thermostat in the oven base provides superior performance and consistency for cooking, finishing, holding and baking requirements.
Southbend H4361D-1G Features
- H4361D-1G: 36" Gas Ultimate Range - 4 Non-Clog Burners - Standart Grates - 12" Manual Griddle - Electric Standart Oven - 150,000 BTU
- Commercial gas range, 36” wide with a 37” high cooking top
- 4” Stainless steel front rail, stainless steel front and sides
- Front located manual gas shut-off to entire range
- One year No Quibble, 24/7 parts and labor warranty
- Factory installed Regulator
- Four (4) removable, cast iron grate tops (rear holds up to 14” stock pot
- Standing pilot for open top burners
- Battery spark ignition for oven bases
Southbend H4361D-1G Specification
- Exterior Finish: Stainless steel front, sides and shelf standard.
- Range Top: 27” deep cooking surface. Center-to-center measurements between burners not less than 12”, side-to-side or front-to-back. A removable one piece drip tray is provided under burners to catch grease drippings.
- Flue Riser: 22.5” flue riser standard with heavy duty shelf. Optional 10” and 5” flue riser available without shelf.
- Oven Door: Spring assisted, counterweight door.
- Oven Interior: Double sided, full porcelain enamel oven cavity for superior cleanability and corrosion protection. Coved corners for easy cleaning and enhanced airflow eliminating hot/cold spots.
- Legs: 6” stainless steel adjustable legs standard (casters optional)
- Pressure Regulator: Factory installed.
- Available Base Combinations : D, A, C, HxxxxD, HxxxxA
- Standard Oven Models (D): 45,000 BTU NAT oven with standing pilot and thermostat range of 1750 F to 5500 F (790 C to 2880 C). Porcelain enamel interior measuring 14” high x 26” wide x 26.5” deep. Full sized pans fit both ways. One rack with two position side rails.
- Convection Oven Models (A): 32,000 BTU NAT convection oven with standing pilot and thermostat range of 1750 F to 5500 F (790 C to 2880 C). Porcelain enamel interior measuring 14” high x 26” wide x 24” deep. Three racks with five position side rails. 1/2 hp, 1710 rpm, 60 cycle, 115V AC, high efficiency, permanent split phase motor with permanent lubricated ball bearings, overload protection and Class “B” insulation. On/Off switch to allow CO base to operate as a standard oven.
- Stainless Steel Cabinet (C): Stainless steel cabinet base. Optional no-charge doors that open from the center.
- Hybrid Electric Standard Oven (HxxxxD): 4.5 kW electrically heated oven, with all the same base features of the gas standard oven at left (D).
- Hybrid Electric Convection Oven (HxxxxA): 6 kW electrically heated oven, with all the same base features of the gas standard oven above (A).
WARRANTY & SERVICE REQUEST
“Do you need service? Is your product under warranty? Please fill out the form at the link below.”
Warranty & Service Request FormFrom The Manufacturer
Ultimate Restaurant Range, gas/electric, 36", (4) non-clog burners, standard grates, (1) 12" griddle left, standing pilot, (1) electric hybrid standard oven, includes (1) rack, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 150,000 BTU, cCSAus, CSA Flame, CSA Star, NSF
