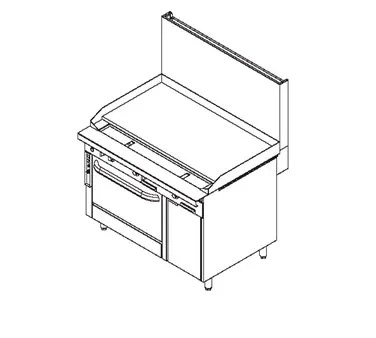

The Southbend P48A-TTTT Platinum Series Sectional Range Full-Width Griddle
Why Use Southbend Sectional Range?
The Platinum Series provides professional performance that chefs and restaurateurs can depend on. Made with 100% Stainless Steel construction, the Platinum Series includes heavy-duty ranges, griddles, planchas, charbroilers, stock pot ranges, fryers, uniform hot tops, french tops, and broilers that can be combined for a 100% custom line-up to fit the needs of any high-volume operation.
Southbend P48A-TTTT Features
- P48A-TTTT: Platinum Sectional Gas Range - 48" Thermostatic Griddle - Convection Oven - 173,000 BTU
- 48" wide sectional range with full-width charbroiler available with a cabinet base or as a modular unit (for mounting on countertop, refrigerated or freezer base)
- Eight 16,000 BTU NAT (14,000 BTU LP) burners with four high/low control knobs
- Removable cast iron grates with adjustable front-to-back slope that flip over for either 1/8" or 1/4" grid width
- 600°F even surface temperature on high setting
- Stainless steel burner radiants
- 9-1/4" deep front rail
- Removable drip tray
- Stainless steel front, sides, rear and exterior bottom
- Fully insulated lining and burner box
- 1-1/4" front gas manifold and 1" rear gas connection
- 5" high stainless steel flue riser
- Free battery-design assistance
- (1) year limited parts and labor warranty
Standard Features of Oven-Base Models
- 45,000 BTU NAT (45,000 BTU LP) oven with standing pilot
- Heavy duty, stainless steel door handle
- Porcelain enamel interior
- Oven racks (2 for standard oven, 3 for convection oven)
- “Insta-On” thermostat ranging from 175°F to 550°F
- Standard-oven interior is large enough (26" by 26-1/2") for sheet pans to fit either way
- Convection-oven models have 1/2 hp, two-speed blower
Southbend P48A-TTTT Specification
- Exterior Finish: Front, sides, rear and exterior bottom constructed of #3 polished 430 and 304 stainless steel.
- Range: 48"-wide front-manifold sectional range with 128,000 BTU NAT (112,000 BTU LP) full-width charbroiler with removable cast iron grates and operating surface temperature of up to 600°F (315°C).
- Front Rail: 9-1/4" deep front rail.
- Flue Riser: 5" high stainless steel flue riser
- Battery: Unit can be in any position in a battery. If the unit is at the end of the battery, the end side will be solid (rather than have a coverplate over the end of the front manifold).
- Legs: 6" stainless steel adjustable legs standard.
- Model 48A: 45,000 BTU NAT (45,000 BTU LP) convection oven with standing pilot and thermostat range of 175°F to 550°F (79°C to 288°C). Porcelain enamel interior, measuring 14” high x 26” wide x 24” deep. Three racks with five-position side rails. Two-speed, 1/2 hp blower motor. Right side cabinet
WARRANTY & SERVICE REQUEST
“Do you need service? Is your product under warranty? Please fill out the form at the link below.”
Warranty & Service Request FormFrom The Manufacturer
Platinum Heavy Duty Range, gas, 48", griddle, 1" thick plate, thermostatic controls, battery spark ignition, (1) convection oven, (1) 12" cabinet, includes (3) racks, stainless steel front, sides, rear, exterior bottom & 6" adjustable legs, 173,000 BTU, cCSAus, CSA Flame, CSA Star, NSF
