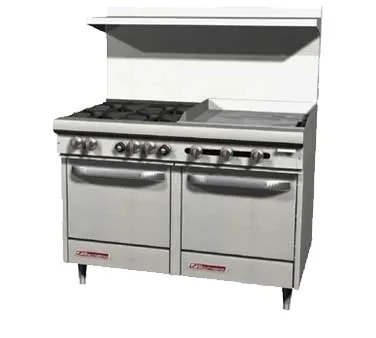

The Southbend S48DC-4T S-Series Gas Restaurant Range
Why Use Southbend Restaurant Range?
Southbend’s S-Series restaurant range offers a quality, versatile range for commercial foodservice applications. 24″, 36″, 48″, and 60″ widths and a number of top configurations are available. Configurations include combinations of open burners, griddles and hot tops.
Southbend S48DC-4T Features
- S48DC-4T: 48" Gas Restaurant Range - 48" Thermostatic Griddle - Standart Oven Base - Cabinet Base - 115,000 BTU
- 48-5/8” wide open top with stainless steel front, sides and removable shelf
- 48″ wide griddle – 1” smooth and polished steel with raised sides,to include (5) 16,000 BTU burner
- Individual, removable, cast iron grate tops (rear holds up to 14” stock pot)
- Stainless steel front, sides, and removable shelf
- 4” Stainless steel front rail with closed, welded end caps
- (2) removable, one-piece crumb drawer under burners
- Metal knobs with red stripe
- Hinged, lower valve panel
- Quadrant spring doors with ergonomic chrome handle
- 6” stainless steel, adjustable legs
- Aluminized cabinet base. Optional no-charge doors that open from the center available.
Southbend S48DC-4T Standart Oven Features
- 35,000 BTU space saver oven with snap action thermostat adjustable for 175F to 550F
- U-shaped heavy duty oven burner
- Equipped with flame failure safety device
- Large 26” wide X 26-1/2” deep oven with all oven cavity parts enameled
- Four sides and top of oven insulated with heavy, self-supporting block type rock wool with oven baffle assembly
- 2-position rack guides with one removable rack
WARRANTY & SERVICE REQUEST
“Do you need service? Is your product under warranty? Please fill out the form at the link below.”
Warranty & Service Request FormFrom The Manufacturer
S-Series Restaurant Range, gas, 48", griddle, thermostatic controls, (1) standard oven, (1) cabinet base, snap action thermostat, (2) removable crumb drawers, hinged lower valve panel, includes (1) rack, stainless steel front, sides, removable shelf, 4" front rail & 6" adjustable legs, 115,000 BTU, cCSAus, CSA Flame, CSA Star, NSF
Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.
