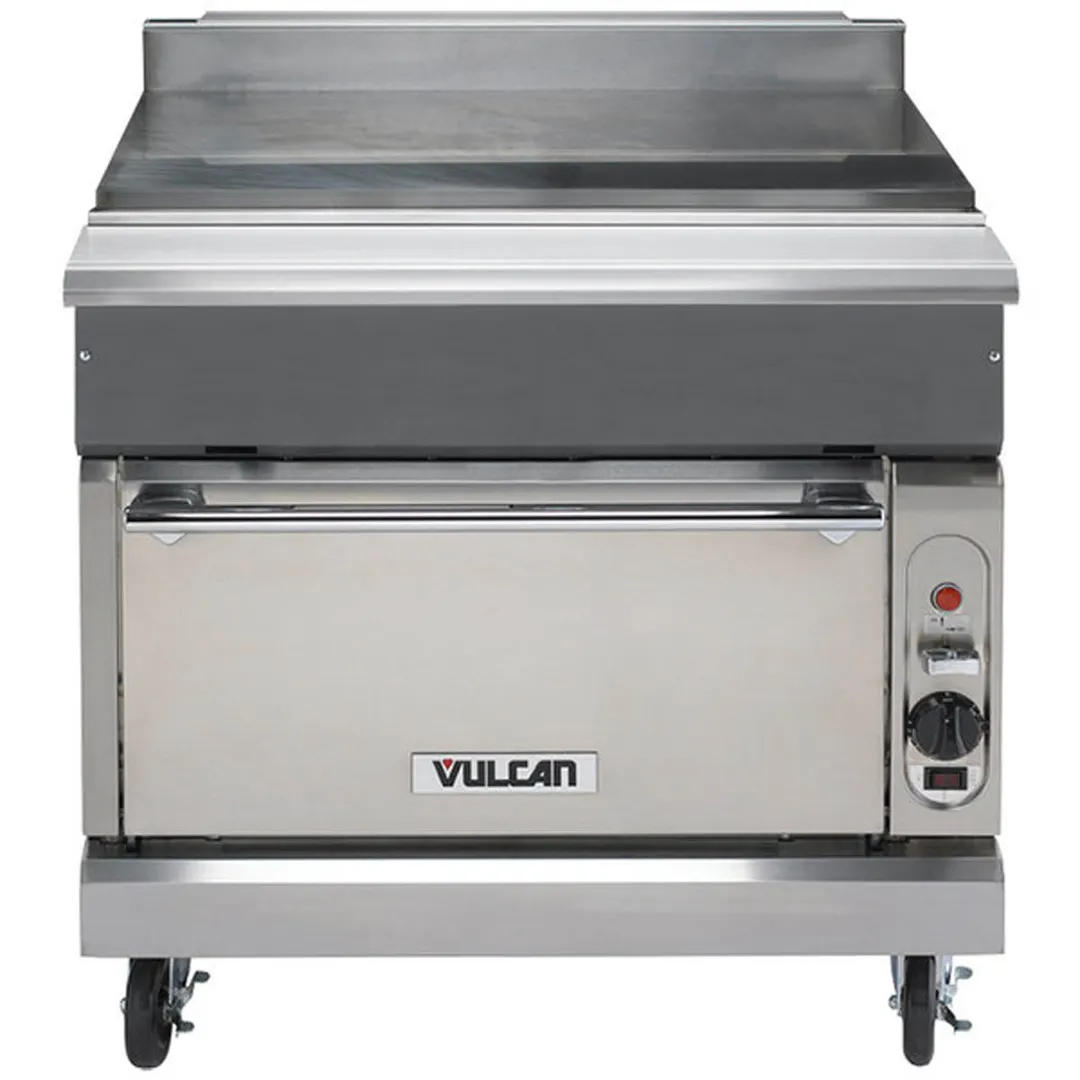

Vulcan VWT36C 36" Gas Heavy Duty Range w/ 36" Work Top Spreader, (1) Convection Oven, 4" Stub Riser on 6" Adjustable Legs, 32.000 BTU

Vulcan VWT36C Features

• Stainless steel work surface, front, front top ledge, sides, base, and stub back
• 1 1⁄4" diameter front gas manifold with 1 1⁄4" rear gas connection (capped)
• 50,000 BTU/hr. standard oven burner
• 32,000 BTU/hr. convection oven burner
• Porcelain oven cavity
• Pilot with millivolt safety system
• 4" stainless steel stub riser
• 6" adjustable stainless steel legs
• One year limited parts and labor warranty

Vulcan VWT36C Specification

Full body work top spreader, Vulcan Model No. VWT36S (36" wide with standard oven base) and VWT36C (36" wide with convection oven base). Full body work top spreader of 20 gauge stainless steel with 16 gauge stainless steel work surface, 6" adjustable stainless steel legs and 4" high stub riser. Stainless steel work surface, front, front top ledge, sides, base and stub back and 6" adjustable legs. Standard Oven: 50,000 BTU/hr with porcelain oven bottom, sides, and interior door panel. Convection Oven: 32,000 BTU/hr. with porcelain oven bottom, sides, and interior door panel. (115v-1 phase blower motor, 4 amps, 6' cord and plug). Oven measures 27"w x 27"d x 13"h. Standard oven thermostats adjust from 175°F – 550°F. Convection ovens adjust from 300°F – 650°F. Standard oven supplied with one rack, convection oven with two racks. Both ovens allow for three rack positions. Oven doors is heavy duty counter weight door hinges. 11⁄4" diameter front gas manifold and 11⁄4" rear gas connection, capped.

Vulcan VWT36C Optional Features

• Cap and cover front manifold
• Stainless steel oven cavity
• 650°F oven thermostat and 1⁄2" steel hearth (“S” models)
• Fan cooling package (“C” models)
• Less legs for dolly mounting
• 3" high toe base for curb mounting
