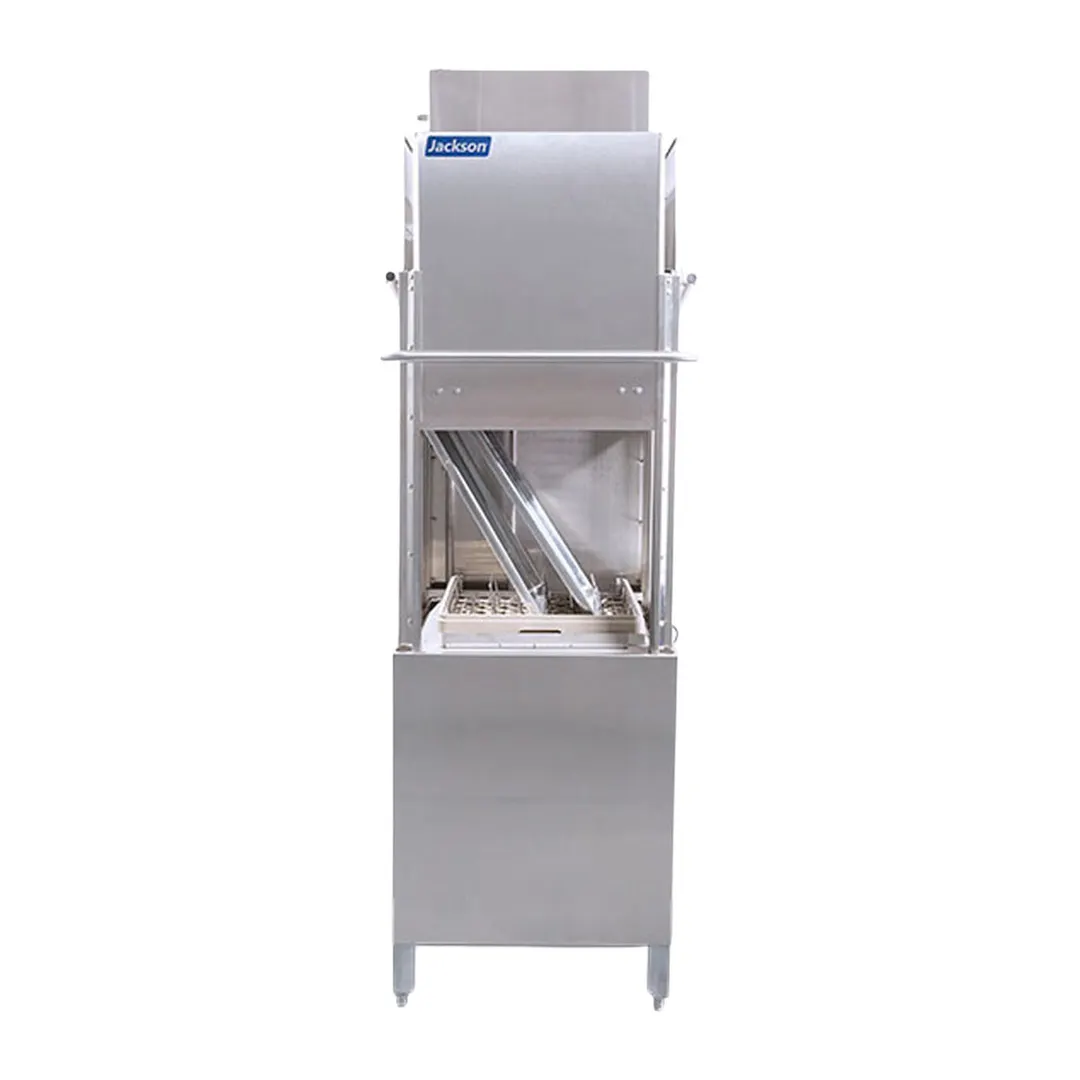

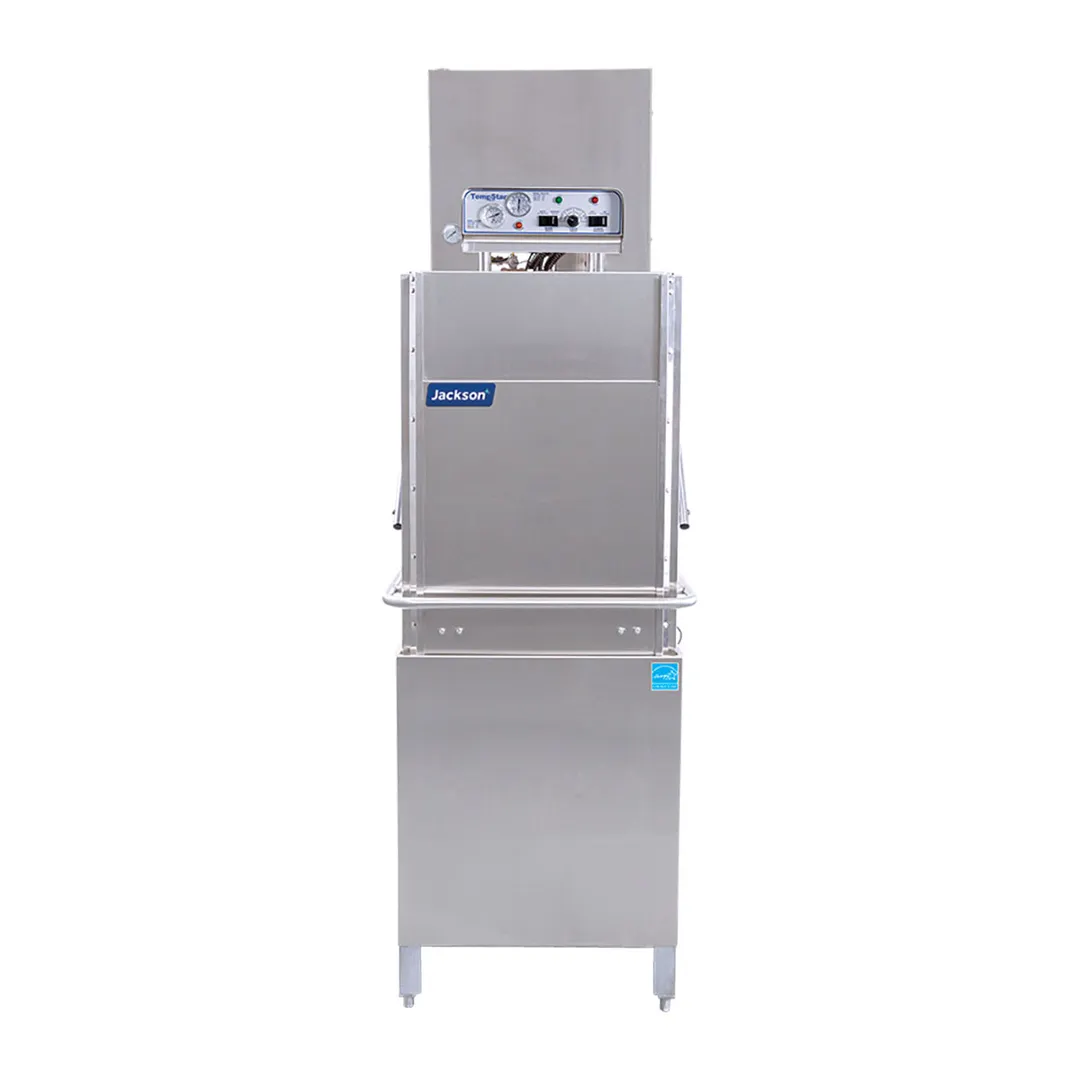

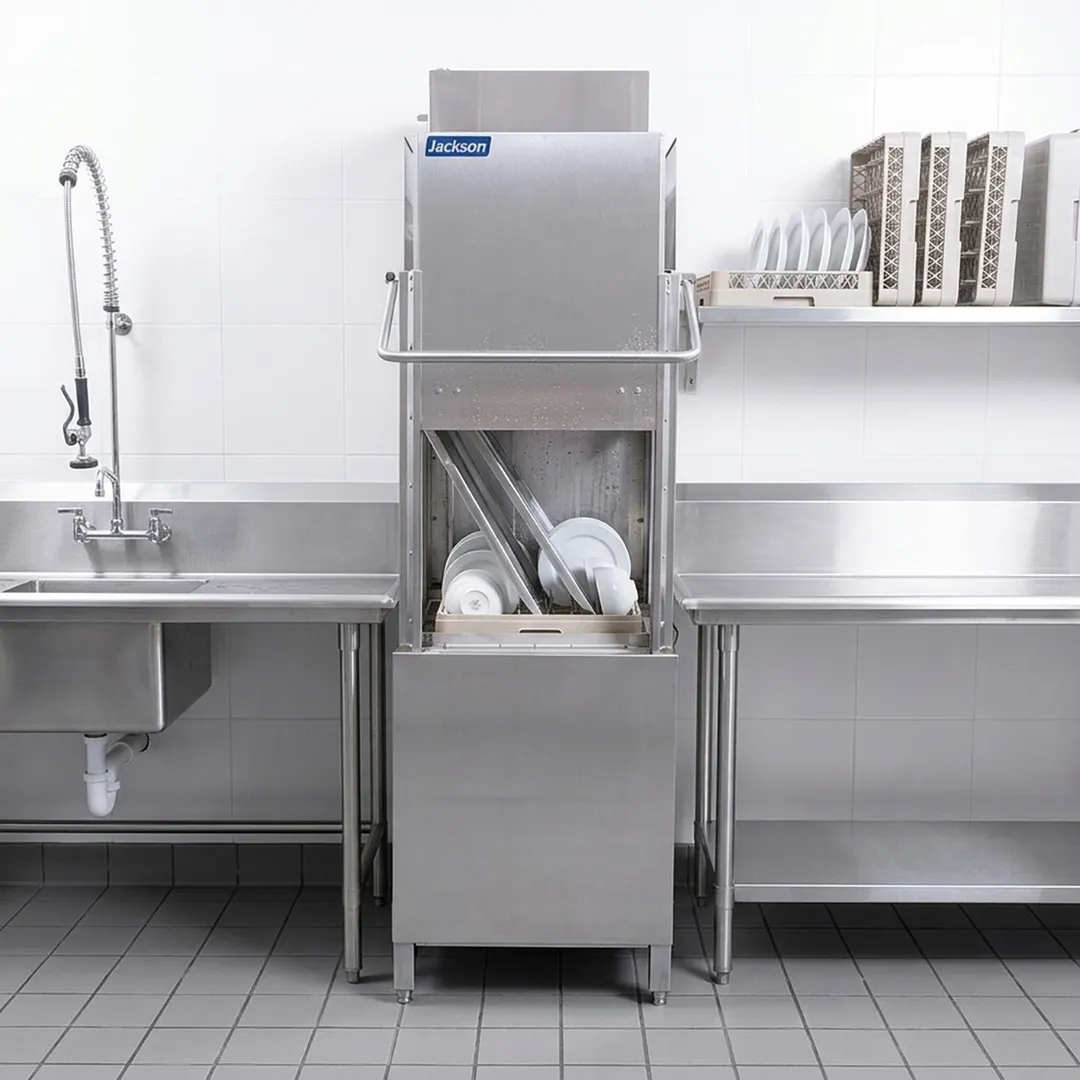

Jackson Warewashing TempStar® HH-E VER Tall Chamber High Temperature Sanitizing Ventless Door-type with Energy Recovery
Description
Specified unit will be a Jackson TempStar HH-E VER tall chamber ventless high temperature sanitizing door-type dishwasher with two-pass energy recovery system, rated by ETL Sanitation to NSF/ANSI Standard 3. Unit will be ENERGY STAR® certified. Unit to be rated for 41 racks per hour, 0.89 gallons per rack, and will include a builtin 70 °F rise booster heater with Sani-Sure™ final rinse system, four (4) selectable timed cycles, 27” chamber clearance, and solid-state controls. Other features include automatic tank fill, door-actuated start, interchangeable upper and lower wash/rinse arms, manual/delime wash mode, vent fan control, and 2 HP stainless steel wash pump motor. Constructed of durable stainless steel with adjustable bullet feet.
Standard Features
- Ventless: does not require a hood
- Unique, two-pass Energy Recovery System
- Cold water connection only
- Door interlock keeps door locked during cycle
- Built-in 70 °F (38.9 °C) rise booster heater with Sani-Sure™ final rinse system ensures proper rinse water temperature
- Automatic tank fill
- Door-actuated start
- Four (4) selectable timed cycles
- Delime/manual wash mode
- 27” (686 mm) vertical chamber clearance accommodates sheet pans and 60-quart mixing bowls
- Specially designed stainless steel nozzles provide superior cleaning action
- Interchangeable upper and lower wash/rinse arms
- Door switch
- 1 HP self-draining stainless steel wash pump motor
- Large scrap basket
- Pressure regulator is provided for installation by others
- Single point connections for all utilities
- Field convertible from straight through to corner and vice versa (kit required)
- Field convertible from 3-phase to single phase and vice versa (kit required)
- Low watt density electric wash tank heater
- Hi-limit thermostat and low water protection
- Detergent/rinse additive signal connection fuse box
- Front stainless steel dress panels
- Uses standard 20” X 20” (508 mm X 508 mm) racks
- Adjustable bullet feet
- Durable stainless steel construction
- Requires some assembly
