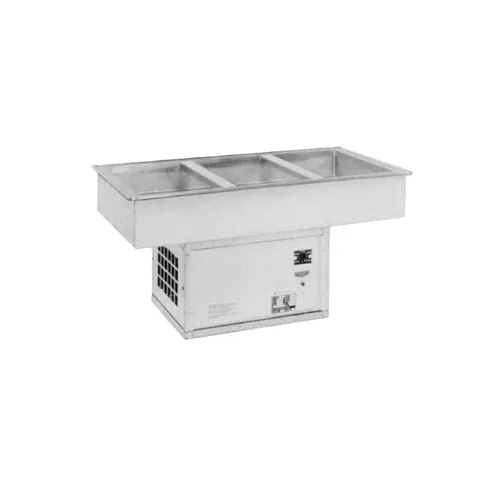

Atlas Metal WCM-6 Drop-In Refrigerated Cold Pan
General Info And Purpose
The drop-in pan can be installed in virtually any counter and can be provided as fully self-contained—just plug it in and turn it on, or remote, where there’s a need to locate the compressor at a different location.
Construction
The pan is fully insulated for maximum efficiency and energy savings, and is provided with a factory applied gasket so that it can be installed in the finest wood fixtures without marring the counter top. The pan is constructed of stainless steel and is provided with a 3/4″ stainless steel drain. The cold pan accommodates standard 12″ x 20″ pans, perfect for any cold food serving application.
Atlas Metal WCM-6 Standard Features
- Fully insulated for maximum efficiency and energy savings
- Factory applied gasket - makes installation a snap and seals units to the counter top, thus eliminating seepage
- Accommodates standard 12” X 20” pans with the use of separator channel(s), or fractional size pans with the use of optional adapter bars
- 1-Year Parts & Labor Warranty
- NSF Certified; UL Listed
Atlas Metal WCM-6 Specifications
- PAN OPENINGS : 6
- PAN SIZE : 19-7/8” X 80-1/2” X 4-5/8” (50.4 X 204.4 X 11.7cm)
- WIDHT : 84-3/4” (215.2cm)
- CUT-OUT REQUIRED : 22-1/4” X 83” (56.5 X 210.8cm)
- SHIP WT. (LBS.): 316 (143,3kg)
- OTHER DETAILS : See spec. sheet
From The Manufacturer
Cold Food Drop-In Unit, refrigerated, 6-pan size, self-contained refrigeration, insulated pan, stainless steel inner liner & top, galvanized steel outer liner, with on/off thermostat switch & pilot light
