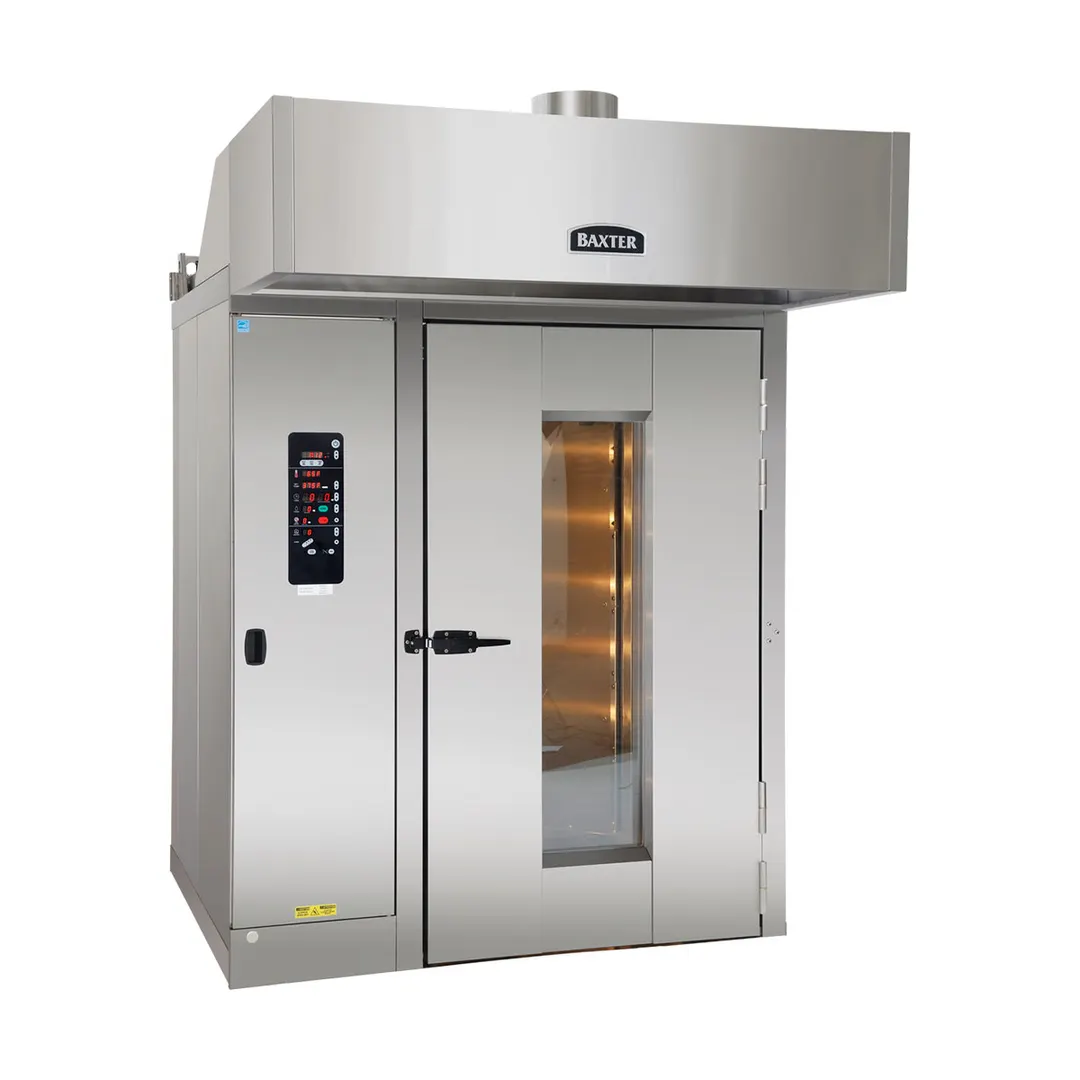

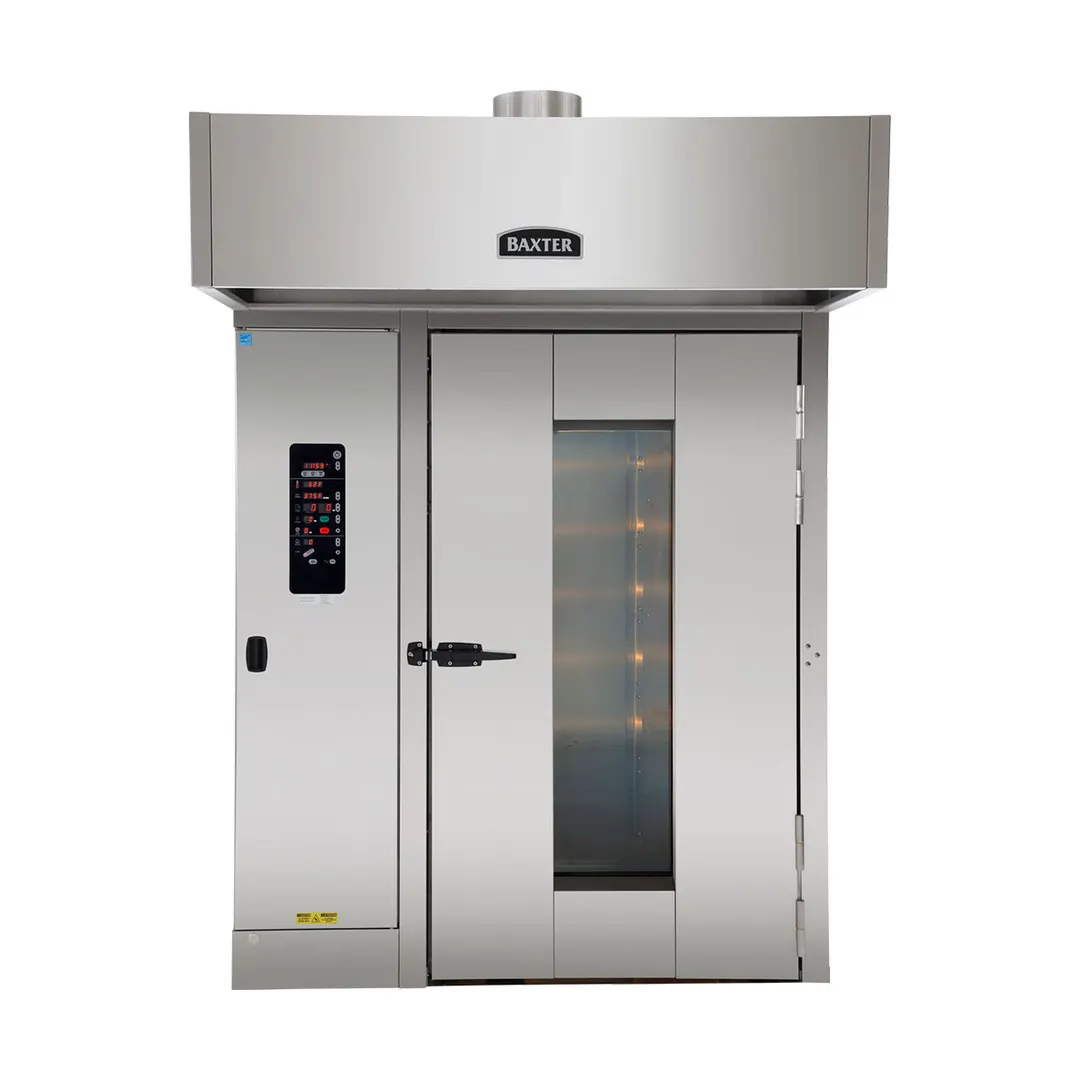

Baxter CS500G2 Roll-In Gas Oven
Specifier Statement
- The oven shall be of stainless steel construction, manufactured in the United States by Baxter Mfg. The footprint shall be no larger than 72.0"W x 62.0"D x 104.5"H and shall have an integral hood with a minimum of 30" overhang to ensure proper vapor capture. Oven shall have independent electrically interlocked air safety switches for the draft inducer and hood. Control panel shall have programmable settings with auto on/off feature and 4-step bake setting.
- The oven shall include an in-shot burner system with a heat exchanger consisting of 18 independent hightemperature, stainless steel tubes. The in-shot burners will have no moving parts. The oven shall also include a patented self-contained spherical cast steam system which shall convert 1.0 gallon of water into steam within 20 seconds at a temperature of 400°F or better. A patented adjustable flush floor shall be used for easy access without a ramp. The oven shall be equipped with a diagnostic center with status indicator lights and be equipped with built-in levelers.
- The oven will bear the following agency approvals: UL for safety, sanitation, and gas for the U.S. & Canada. The exhaust hood shall meet construction requirements of IMC section 507 and NFPA-96.
Standard Energy Saving Features
- Halogen lighting in the bake chamber provides better visibility and better bulb life in high temperature environments
- Efficient 275k BTU/Hr. in-shot burner system consumes less gas, but provides high-impact results
- Airflow design maximizes heat exchanger use, reduces energy consumption and reduces cook time by up to 5%
- Energy saving idle mode reduces oven to a stand-by temperature when left idle; idle time and stand-by temperature can be customized to maximize energy savings in your operation
- Programmable digital control with Auto on/Auto off controls
- Double pane viewing window - Dual panes of glass & a low-E coating on the interior of the window reduces the oven’s energy use
Standard Features
- Stainless steel construction
- Heat exchanger with weldless construction for longer life; tubes carry an additional 9 year extended parts and labor warranty
- Patented self-contained spherical cast steam system
- Hood with plenum and single point vent connection for Type II installations only
- Field reversible bake chamber door (left or right hinged to fit your needs)
- Patented flush floor – no ramp required
- 99 programmable recipes
- Oven body shipped split - Minimum intake: 104" x 62" x 37" (uncrated)
- Holds 2 single or 1 double oven rack
- Heavy duty rack lift with “soft start” rotation and rack jam warning system
- Built-in rollers & levelers for easy installation
From The Manufacturer
Rotating Rack Oven, gas, holds (2) single or (1) double oven racks, programmable digital control with 4-stage bake & 100 programmable recipes, auto rack lift with soft start rotation, self-contained steam system, dual pane glass, field reversible bake chamber door, stainless steel construction, hood with plenum and single point vent connection for Type II installations only, integrated hood for type II , flush floor, 275,000 BTU, cULus, UL EPH Classified, ENERGY STAR®
