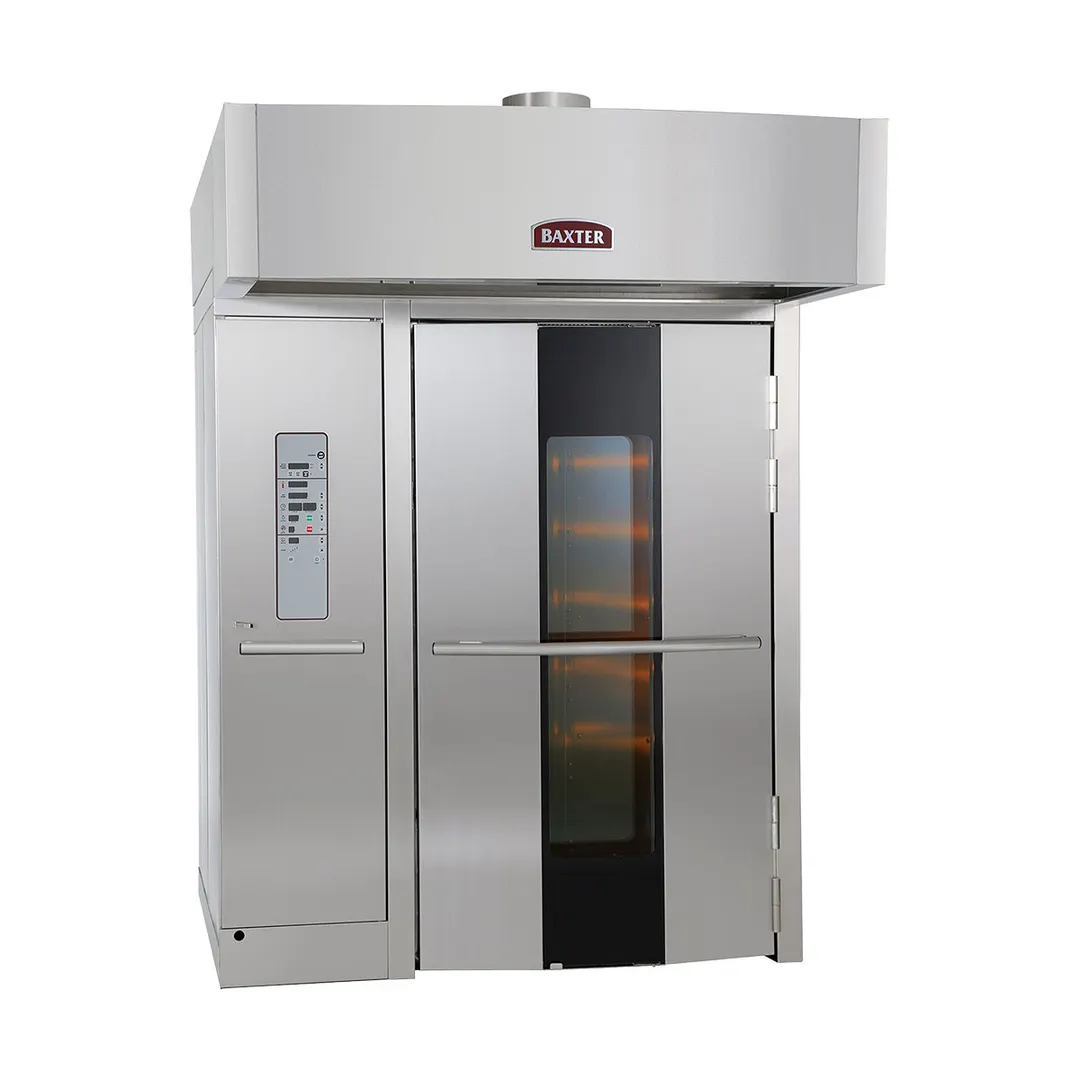

Baxter Roll-In Gas Rotating Double Rack Oven with Digital Controls, 275.000 Btu
Specifier Statement
- The oven shall be of stainless steel construction, manufactured in the United States by Baxter Mfg. The footprint shall be no larger than 55.0"W x 51.0"D x 104.5"H and shall have an integral hood with a minimum of 31.0" overhang to ensure proper vapor capture. The Type I hood must be UL710 Listed and have a single point exhaust. Oven shall have independent electrically interlocked air safety switches for the draft inducer and hood. Control panel shall have programmable settings with auto on/off feature and 4-step bake/roast setting.
- The oven shall include an in-shot burner system with a heat exchanger consisting of 18 independent high-temperature, stainless steel tubes. The in-shot burners will have no moving parts. The oven shall also include a patented self-contained spherical cast steam system which shall convert 1.0 gallon of water into steam within 20 seconds at a temperature of 400°F or better. The field reversible oven door shall utilize three panes of glass in the viewing window to ensure a safe to the touch exterior. A patented adjustable flush floor shall be used for easy access without a ramp. The oven shall be equipped with a diagnostic center with status indicator lights and be equipped with built-in levelers.
- The oven will bear the following agency approvals: UL for safety, sanitation, and gas for the U.S. & Canada, UL710 for the hood. The exhaust hood shall meet construction requirements of IMC section 507 and NFPA-96.
Standard Energy Saving Features
- Halogen lighting in the bake chamber provides better visibility and better bulb life in high temperature environments
- Efficient 275k BTU/Hr. in-shot burner system consumes less gas, but provides high-impact results
- Airflow design maximizes heat exchanger use, reduces energy consumption and reduces cook time by up to 5%
- Energy saving idle mode reduces oven to a stand-by temperature when left idle; idle time and stand-by temperature can be customized to maximize energy savings in your operation
- Programmable digital control with Auto on/Auto off controls
- Three pane viewing window provides safe to touch exterior - Dual panes of glass & a low-E coating on the interior of the window reduces the oven’s energy use - Single exterior pane is hinged to allow cleaning access to both sides - Air gap within the door decreases exterior temperatures
Standard Features
- Stainless steel construction
- Heat exchanger with weldless construction for longer life; tubes carry an additional 9 year extended parts and labor warranty
- Patented self-contained spherical cast steam system
- Hood with plenum and single point vent connection for Type II installations
- Field reversible bake chamber door (left or right hinged to fit your needs)
- Patented flush floor – no ramp required
- 99 programmable recipes
- Oven body shipped split - Minimum intake: 104" x 62" x 37" (uncrated)
- Holds 2 single or 1 double oven rack
From The Manufacturer
Rotating Rack Oven, gas, curved front, holds (2) single or (1) double oven racks, programmable digital controls, auto rack lift, Advanced Controls with 4-stage bake & 99 programmable menus, self-contained steam system, three pane field reversible glass door, stainless steel construction, fully fire sealed hood, flush floor, single vent, 275,000 BTU, cULus, UL EPH Classified, ENERGY STAR®
