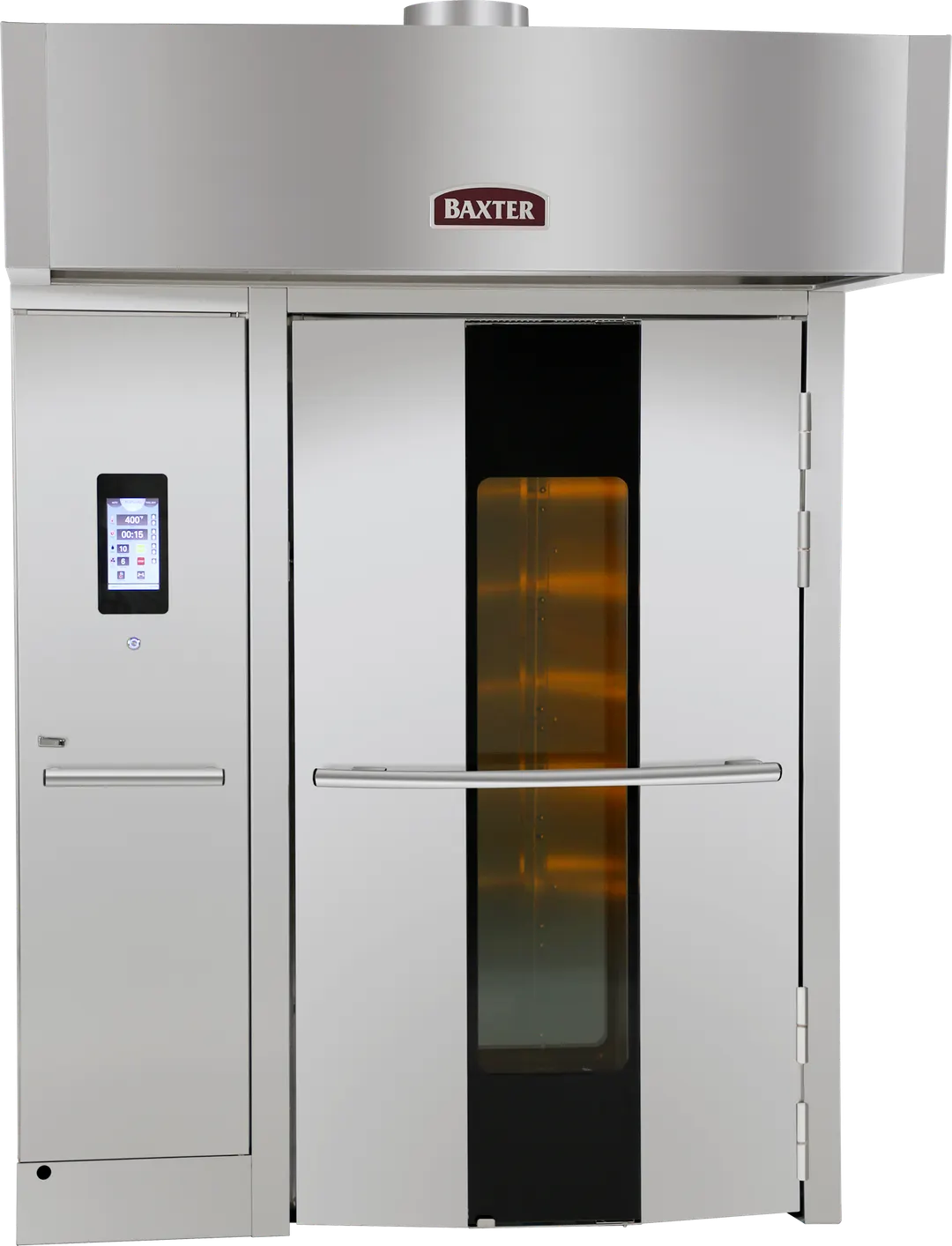

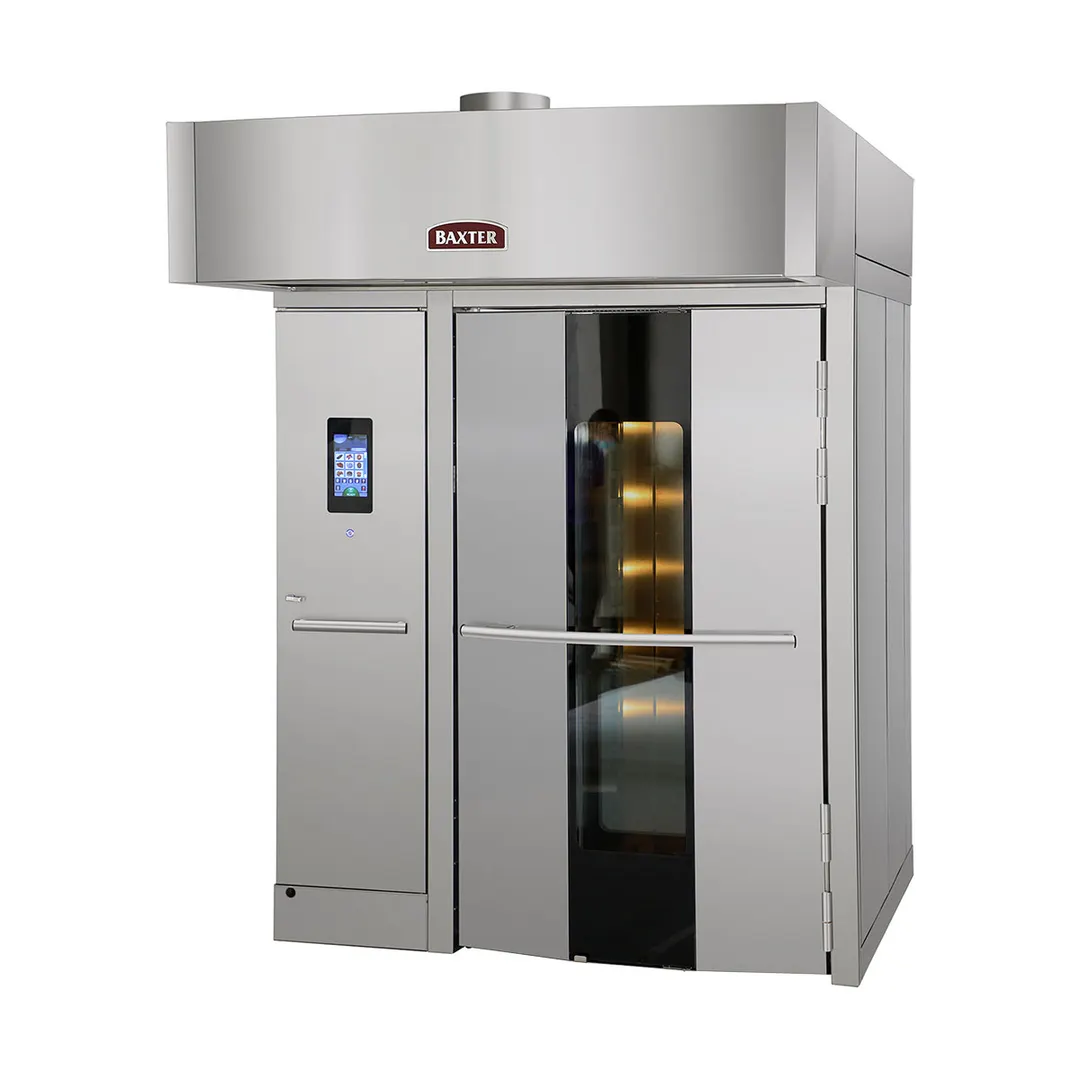

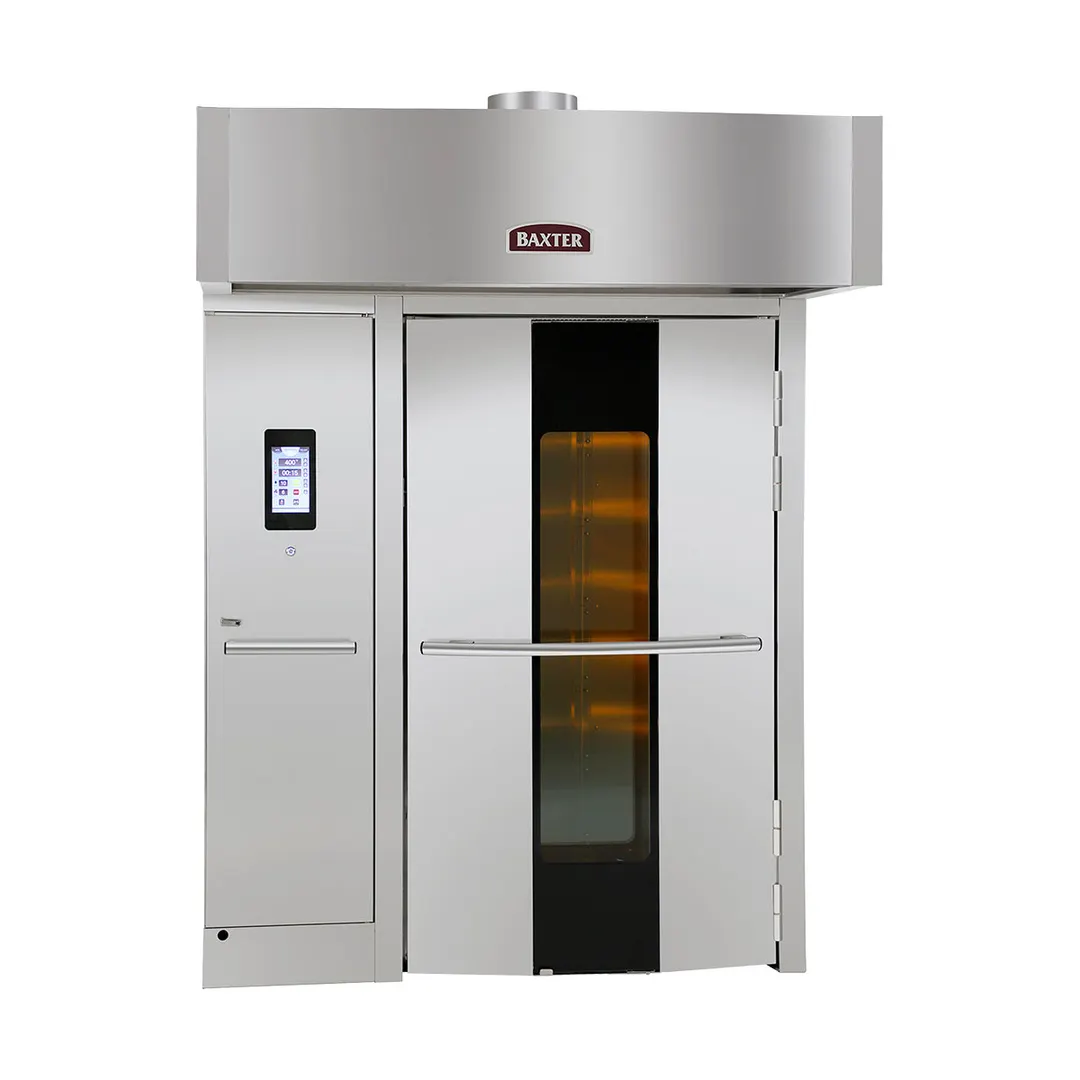

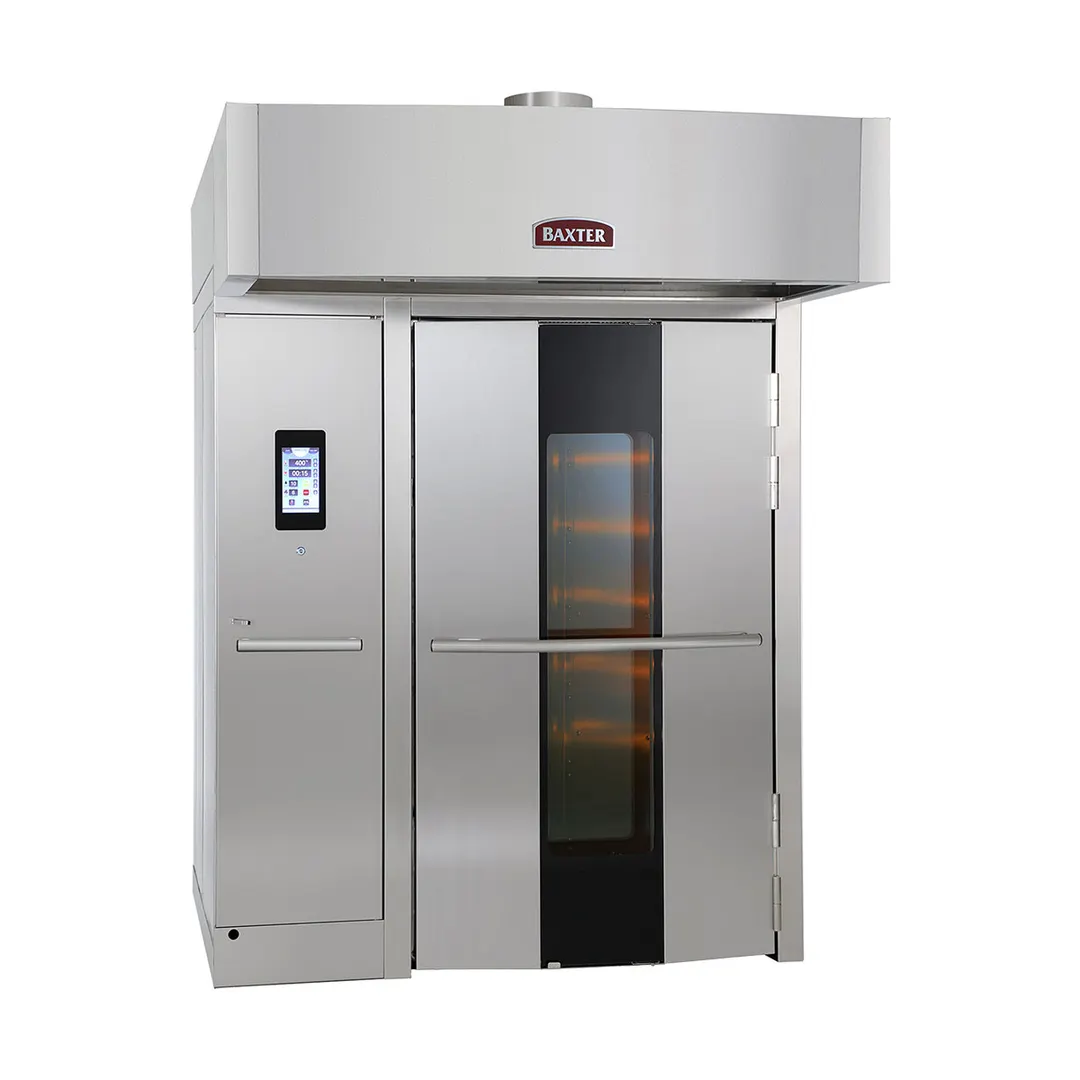

Baxter Roll-In Gas Rotating Double Rack Oven with Touch Screen Controls, 275.000 Btu

Specifier Statement

The oven shall be of stainless steel construction, manufactured in the United States by Baxter Mfg. The footprint shall be no larger than 72.0"W x 62.0"D x 104.5"H and shall have an integral hood with a minimum of 31" overhang to ensure proper vapor capture. The Type I hood must be UL710 Listed and have a single point exhaust. Oven shall have independent electrically interlocked air safety switches for the draft inducer and hood. Control panel shall have programmable settings with touch screen and 6 step bake/roast setting
The oven shall include an in-shot burner system with a heat exchanger consisting of 18 independent high-temperature, stainless steel tubes. The in-shot burners will have no moving parts. The oven shall also include a patented self-contained spherical cast steam system which shall convert 1.0 gallon of water into steam within 20 seconds at a temperature of 400°F or better. The field reversible oven door shall utilize three panes of glass in the viewing window to ensure a safe to the touch exterior. A patented adjustable flush floor shall be used for easy access without a ramp. The oven shall be equipped with a diagnostic center with error code screens and be equipped with built-in levelers.
The oven will bear the following agency approvals: UL for safety, sanitation, and gas for the U.S. & Canada, UL710 for the hood. The exhaust hood shall meet construction requirements of IMC section 507 and NFPA-96.

Standard Energy Saving Features

Halogen lighting in the bake chamber provides better visibility and better bulb life in high temperature environments
Efficient 275k BTU/Hr. in-shot burner system consumes less gas, but provides high-impact results
Airflow design maximizes heat exchanger use, reduces energy consumption and reduces cook time by up to 5%
Energy saving idle mode reduces oven to a stand-by temperature when left idle. Idle time and stand-by temperature can be customized to maximize energy savings in your operation
Smart Touch™ programmable digital control with touch screen
Three pane viewing window provides safe to touch exterior
Dual panes of glass & a low-E coating on the interior of the window reduces the oven’s energy use
Single exterior pane is hinged to allow cleaning access to both sides
Air gap within the door decreases exterior temperatures

Standard Features

Stainless steel construction
Heat exchanger with weldless construction for longer life. Tubes carry an additional 9 year extended parts and labor warranty
Patented self-contained spherical cast steam system
Hood with plenum and single point vent connection for Type II installations
Field reversible bake chamber door (left or right hinged to fit your needs)
Patented flush floor – no ramp required
100 programmable recipes
Oven body shipped split - Minimum intake: 104" x 62" x 37" (uncrated)
Holds 2 single or 1 double oven rack
Heavy duty rack lift with “soft start” rotation and rack jam warning system
Built-in rollers & levelers for easy installation

From The Manufacturer

Rotating Rack Oven, gas, curved front, holds (2) single or (1) double oven racks, programmable digital control with touch screen, 6-stage bake & 100 programmable recipes, auto rack lift, self-contained steam system, three pane field reversible glass door, stainless steel construction, fully fire sealed hood, flush floor, single point exhaust, 275,000 BTU, cULus, UL EPH Classified

Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.
