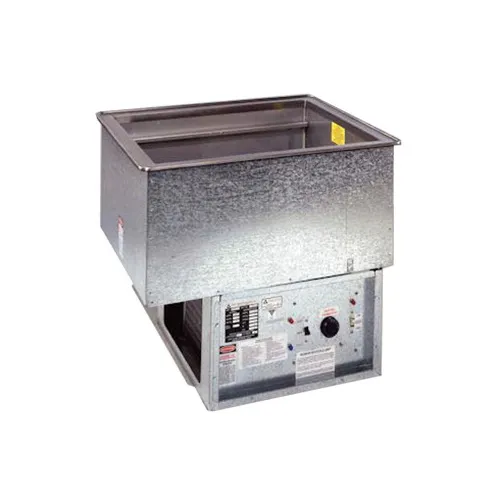

Atlas Metal RM-HP-2 Electric Drop-In Hot / Cold Pan (Dual Temperature - Hot Or Cold Service)
General Info
This versatile drop-in serving unit is a fully self-contained refrigerated cold pan or, at the flip of a switch, an electrically heated bain-marie. Your hot breakfast bar can be a refrigerated salad bar lunch—with one piece of equipment.
Construction
The pan is fully insulated for maximum efficiency and energy savings, and is provided with a factory applied gasket so that is can be installed in the finest wood fixtures without marring the counter top. The pan is constructed of stainless steel and is provided with a 3/4″ stainless steel drain.
Atlas Metal RM-HP-2 Standard Features
- Dual Temp. - a hot serving unit becomes a refrigerated cold pan at the flip of a switch
- Fully insulated for maximum efficiency and energy savings
- Factory applied gasket - makes installation a snap and seals units to the counter top, thus eliminating seepage
- Accommodates standard 12” X 20” pans with the use of separator channel(s) and pan rails, or fractional size pans with the use of optional adapter bars
- 1-Year Parts & Labor Warranty
- NSF Certified and UL Listed
Atlas Metal RM-HP-2 Specifications
- WIDHT : 31-3/4” (81.2cm)
- PAN SIZE : 19-7/8” X 25-5/8” X 12-1/4” (50.4 X 65.6 X 31.1cm)
- ELECTRICAL CHARACTERISTICS :
- HOT OPERATION : 16.7 amps. - 2KW - 120V / 14.5 amps. - 3KW - 208V / 12.5 amps. - 3KW - 240V
- COLD OPERATION : 6.0 amps. - 120V - 1/4 HP
- SHIP WT. (LBS.): 236 (107 kg)
- OTHER DETAILS : See spec. sheet
From The Manufacturer
Hot/Cold Food Drop-In Unit, 2-pan size, 18/304 stainless steel top & liner with 3" recess, holds (2) 12" x 20" pans, immersion-type heating element, self-contained refrigeration, hot/cold selector switch, insulated pan with 22 gauge galvanized outer case, thermostat controls & pilot light included, 3/4" drain with strainer, 30-1/4"W x 24-1/2"D cutout required, NSF 169, UL
